New GoldPro® Durston DRM Round 130mm RE Rolling Mill

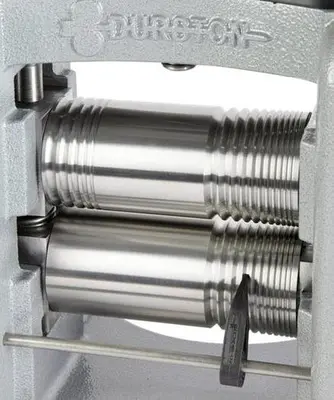

Durston is proud to be the only manufacturer of round rolling mills. The DMR Round 130 RE Rolling Mill creates perfect circular wire forms through ten rounded forming grooves. The mill is constructed from one piece of cast iron for maximum rigidity and strength. The bearings are self-lubricating and maintenance-free and fully support the induction hardened rollers. The rolls themselves provide a large flat rolling surface, as well as the ten rounded grooves enabling rolling from 6mm to 1mm round wire. Flat rolling has a maximum thickness of 6mm. Durston’s industry beating 5-1 gearbox makes each turn of the mill effortless and ensures perfect results over a lifetime. The addition of four side extensions provides half rounds in 4, 3, 2 and 1.5 mm. The rolls themselves have a diameter of 60mm.
Technical Details:
Available Ex-Factory, TN, USA
Priced for: $1,749.00
Note: Price Subject to Change Without Notice

WEIGHT: 47.8 kg
PRODUCT WEIGHT (KG): 45.3KG
PRODUCT LENGTH (MM): 410
PRODUCT WIDTH (MM): 220
PRODUCT HEIGHT (MM): 365
GEARBOX: 5-to-1 gearbox
NUMBER OF GROOVES: 10
MAX. SHEET THICKNESS (MM): 6
ROLLER TYPE: Round
ROLLER DIAMETER (MM): 60
ROLLER LENGTH (MM): 130
SIDE EXTENSIONS: 4, 3, 2, 1.5mm
MAX. WIRE CAPACITY (MM): 10mm
