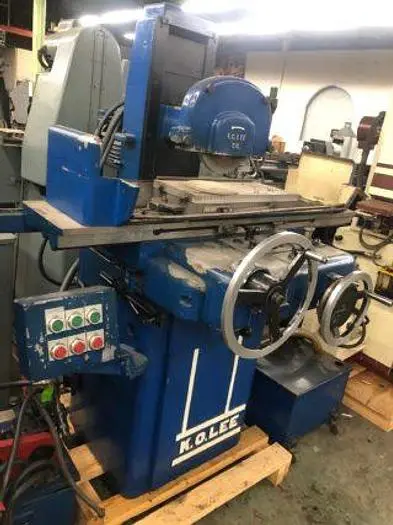

S/N 20457-MD
MODEL S918HGRE
Motor – 2 HP – 1725 RPM
230V/3PH/60HZ
Table working surface – 8” x 18”
Longitudinal table travel – 21”
Cross travel – 9-1/4”
Crossfeed – 0” to 3/8” Per Reversal
Working height – 3-1/8” (min) / 15-1/2” (max)
Grinding wheel size – 10” x 3/4” x 3”
Spindle speeds – 2250/2850 RPM
Table speed – 0 to 75 FPM

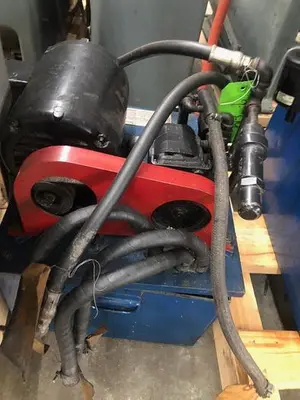

Hydraulic pump motor – 1 HP – 1725 RPM
Floor space – 68” x 45”
Approximate net weight – 1600 Lbs.
Height – 63”
Equipped With:

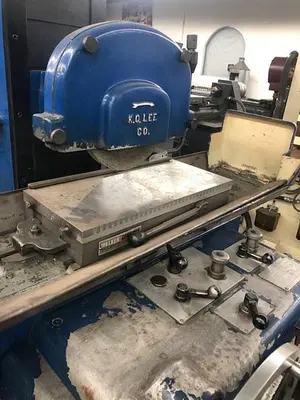

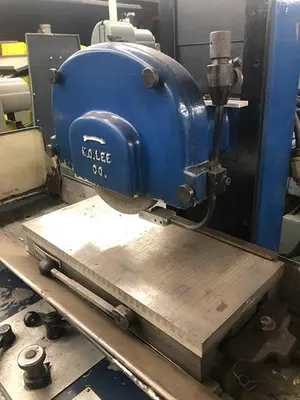

Walker 8" x 18" fine pitch permanent magnetic chuck

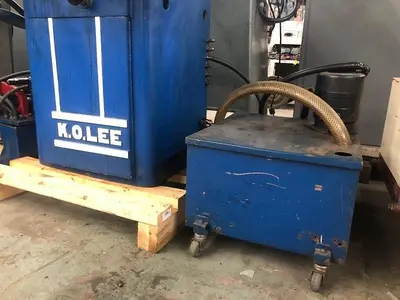

Coolant
