Overview
Type:
Continuous Casting Machines
Stock #:
IECO Kg.3
Description

Art.Z50-303MI

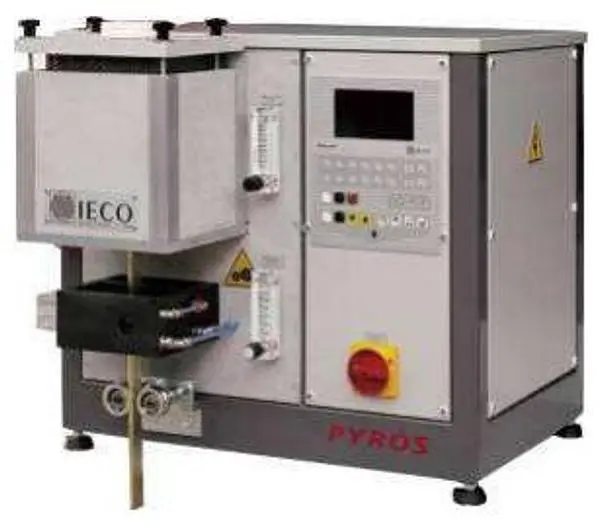

Bench top Vertical induction furnace for continuous melting and casting of precious-metal alloy sections

in wire and plate form.
Equipped with processor for setting and storing 99

automatic melting programs, with display and printout of all parameters set, with possibility of

switching-over for manual melting.

Equipped with one single-inductor working station

and melting head integrated in the structure of the

furnace. Circular die cooling.

Medium frequency generator of new concept.

Furnace suitable for:
Technical data sheet

Power supply 220/380V 50/60Hz/three phases;
Power of the furnace 3 kW;
Working frequency of the converter ~20 Khz;
Usefull size of the crucible (18kt gold) 2,4 kg;
Max working temperature 1250° C;
Water consumption (T° 15 to 30°c – Pressure 2– 3 bar) 15 l/min:
Gas for protection Nitrogen or argon;
Gas consumption (0,5 – 1 bar) 10 l/min;
Gas consumption (0,5 – 1 bar) 10 l/min;
Compressed air
Dimensions 650x860x700 mm.;
Weight 106 kg ;

N.B.: Data here above are not binding and they could be changed during the construction phase of the

machine
Consumables

Extra crucible
Extra ceramic jacket
Extra die for plate
Starting bar for plate
Extra die for wire
Starting bar for wire
Extra thermocouple
Kit material replacement crucible/die

Specifications

Wire: Min. 5 mm - Max. 10 mm
Plate: Max. 35x5 mm
Tube: NO
