Additional Details:
Panel Board:
Will be equipped with all necessary switches and controls for efficient operation. The panel will be wired and instruments will be tested before leaving our plant.
Cooling System:
Cooling system specially designed pressure less cooling chamber including prevision flow meter control to monitor accurately the cooling and water temperature gauges with micro-processor control to activate the alarm system. Water pressure control is also interfaced with the alarm system.

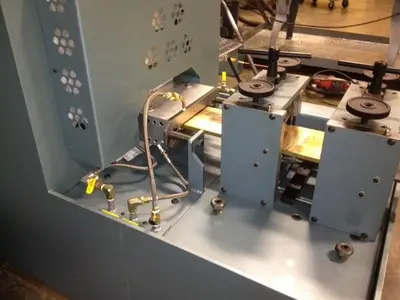

Withdrawal System:
The withdrawal mechanism is designed with mechanical and hydraulic interface. The motor drive is controlled electronically with processor pulse.
Crucible:
Manufacture from high purity. Graphite is machined to precision tolerance.
Dies:
Casting Dies are precision manufactured from high density graphite.
| Weight | 4200 lbs. (1905 kg) | 4200 lbs. (1905 kg) |
Crucible Size: 90Kg
Maximum Casting Capacity: Rectangular : 6" (152 mm) wide x .1/2"(12 mm) Thick
Speed Output Capacity: 1" to 8" IPM ( 25 mm / 200 mm p/m)
Voltage: 208 / 220 / 240, 50-60 CY
Kw Power: 44
Amp Power: 158
Maximum Operating Temperature: 1260º C (2300º F)
Furance Box: Heavy duty HR steel construction with removable top.
Heating Element: The heating element is constructed of silicone carbide. The element is designed to provide trouble free life. The element has a unique design the easiest and shortest way to replace. (normal replacement time is 15 min. with Furnace HOT)
Insulation: The furnace chamber contains multiple courses of high quality refractory and thermal efficiency.
Atmosphere Control: Internally the Furnace operates under atmosphere inert gas. This will minimize oxidation of graphite crucible and die.
Heat Zone: Multi Zone heating system for better heat curve accuracy.
Temperature: Microprocessor temperature control with time proportion and cycle rate calibrated for Type K thermocouple 0 to 2,300o F for close line control. (includes HI-Limit safety)
Overall Dimensions: 2138 mm x 1219 mm x 1219 mm
