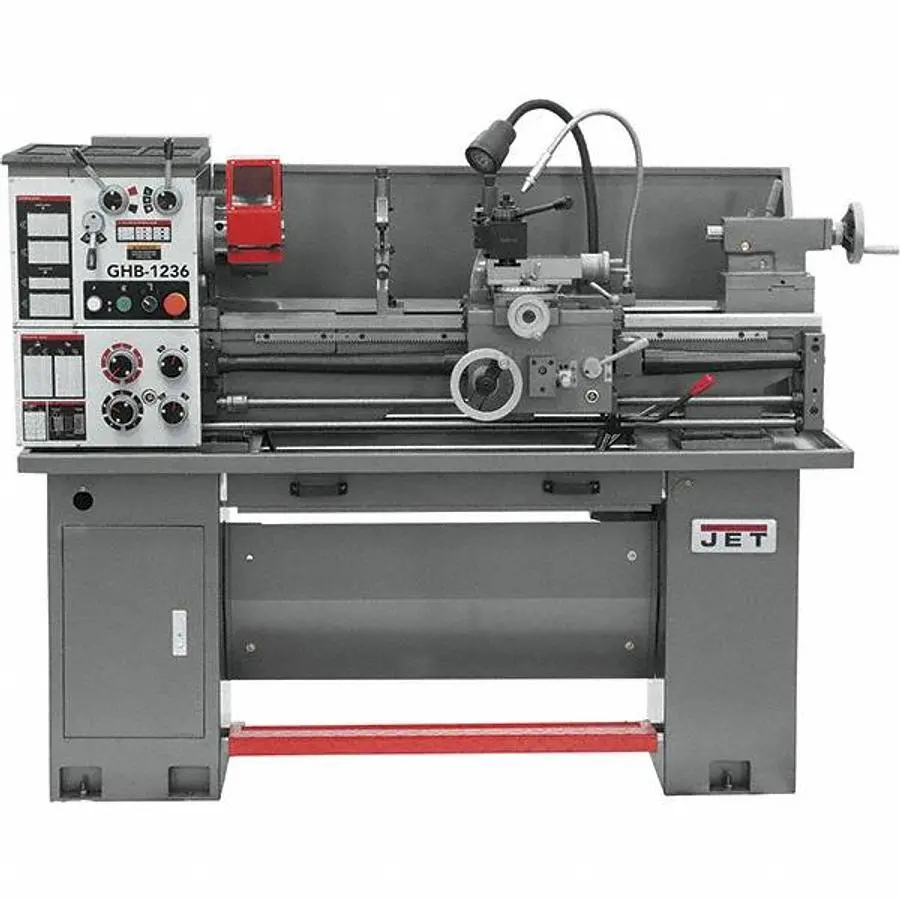

NEW 2025 JET GHB-1236

GEAR HEADED BENCH LATHES

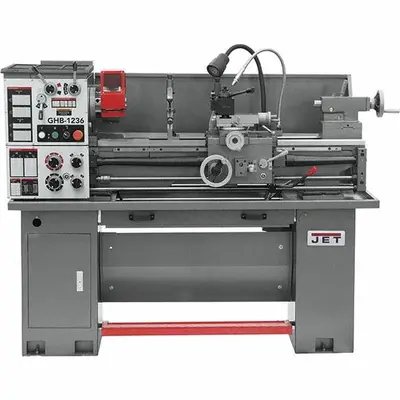

The JET GHB-1236 Geared Head Bench Lathe is engineered to cut and taper with exacting accuracy. Positioned on a heavy-duty stand with a newly added built-in footbrake, the GHB-1236 features precision induction hardened ground bed-ways, spindle roller bearings, and high-quality steel hardened gears in the headstock for ultimate working durability.

JET Geared head bench lathes are designed with an enclosed gearbox for smooth, quiet operation. precision roller bearings that support the hardened and ground spindle resulting in tight tolerances.

Phase: Single
Spindle Speed Control: Geared Head
Bed Width (Inch): 7.1200
Bed Width: 7.12 in
Distance Between Centers (Inch): 33
Spindle Bore Diameter (Inch): 1-9/16
Cross Slide Travel (Inch): 5-1/2
Gap Length (Decimal Inch): 8.7500
Gap Length: 8.75 in
Swing (Inch): 12
Minimum Spindle Speed: 75
Spindle Nose Designation: D1-4
Maximum Spindle Speed: 1400
Overall Height: 58 in
Overall Depth: 30 in
Minimum Metric Pitch (Decimal Inch): 0.4000
Number of Inch Threads: 36
Minimum Metric Pitch: 0.4 in
Spindle Taper Size: 5MT
Tailstock Taper Size: 3MT
Tailstock Travel (Decimal Inch): 3.5000
Tailstock Travel: 3.5 in
Maximum Threads Per Inch: 60
Min. Longitudinal Feed Per Rev. (Decimal Inch): 0.0019
Overall Depth (Inch): 30
Overall Length (Inch): 66
Max. Longitudinal Feed Per Rev. (Decimal Inch): 0.0472
Maximum Longitudinal Feed Per Revolution: 0.0472 in
Minimum Cross Feed Rate Per Revolution: 0.0014 in
Min. Cross Feed Rate Per Revolution (Decimal Inch): 0.001400
Max. Cross Feed Rate Per Revolution (Decimal Inch): 0.0116
Maximum Cross Feed Rate Per Revolution: 0.0116 in
Swing Over Cross Slide (Decimal Inch): 7.5000
Swing Over Cross Slide (Inch): 7-1/2
Swing Over Gap (Inch): 18
Swing Over Gap (Decimal Inch): 18.0000
Swing Over Gap: 18 in
