USED 2010 ITALIMPAINTI TLF/500
Overview
Description

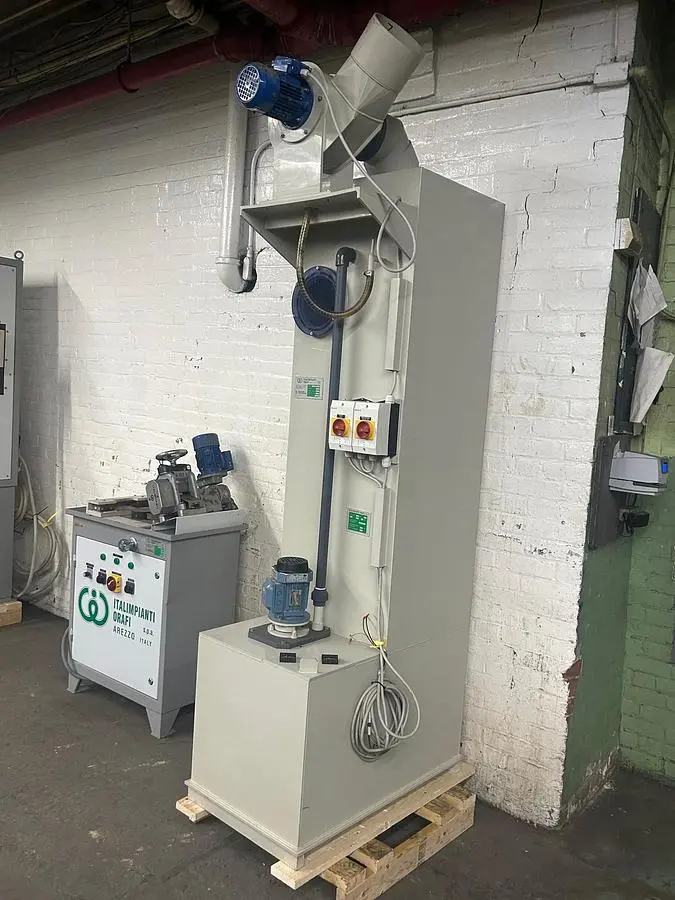

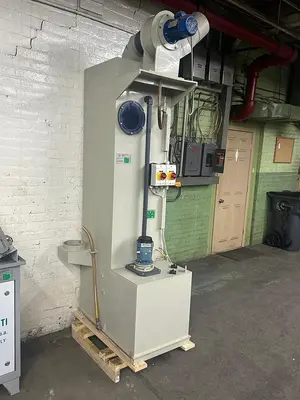

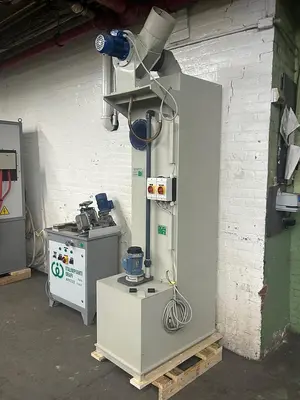

The tower is used to neutralize acid fumes. It is made out of polypropylene sheets and has a sprayer to spray a 600 mm thick layer of raschig rings inside of the main body of the scrubber. A second 200 mm thick layer of raschig rings has been placed above the sprayer.
A container for the neutralization solution is positioned beneath the tower and has a pump to recycle the solution. This scrubber is also fitted with a special vacuum system used to load and transfer acid solutions to and from our gold refining plants, model IAO10.
Specifications
| Weight | 65 Kg | 65 Kg |
|---|
Power supply: Three Phase
Power: 0,25 Kw
Overall dimensions: 653 x 700 x 2165 mm (length-width-height
Capacity: 220 m3
