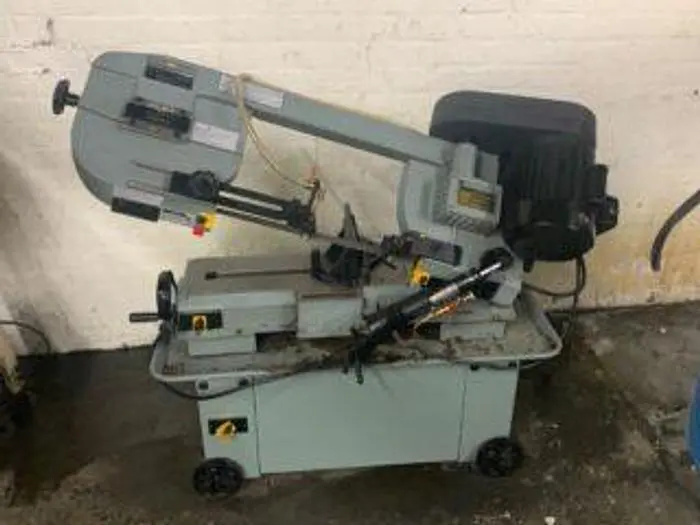

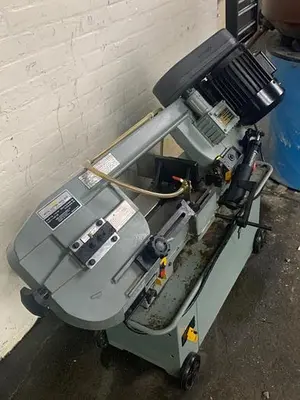

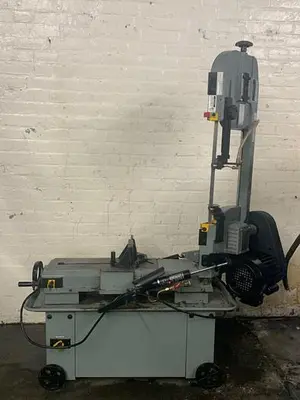

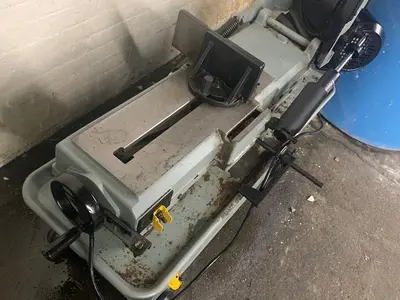

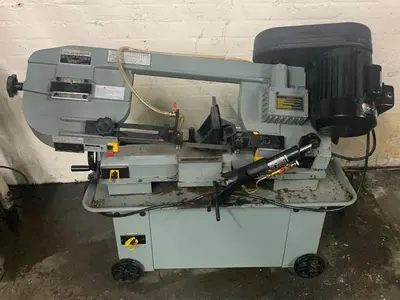

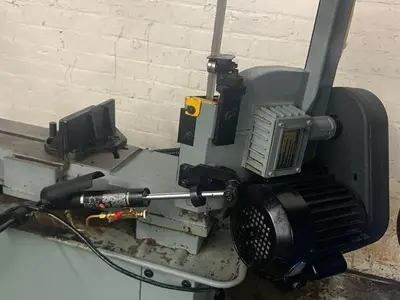

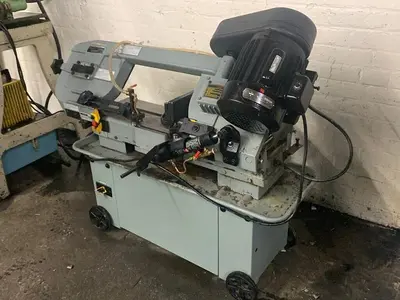

5972-600 Enco 7″ x 12″ Manual Combo Horizontal & Vertical Bandsaw, Coolant System, New 2004
Overview
Description

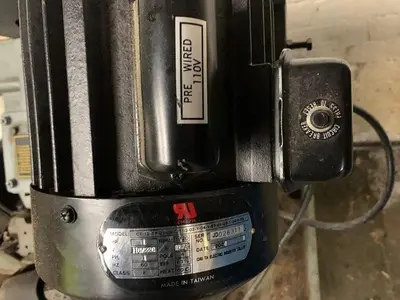

Voltage 110 / 220 1ph 50/60 cycle
New 2004

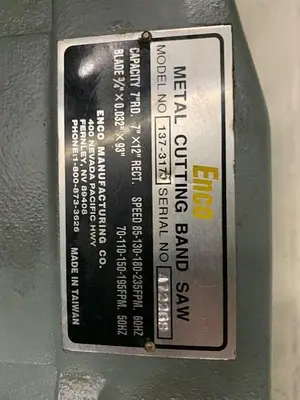

Model 137-3175
S/N 472268
Specifications
Machine Style: Manual
Drive Type: Step Pulley
Angle of Rotation: 45
Maximum Capacity (Rectangular) at 90 Degrees (Inch): 7 x 12
Maximum Capacity (Rounds) at 90 Degrees (Decimal Inch): 7
Rotation Angle: 45
Rectangular Cutting Capacity - Horizontal At 90 Degrees: 7 x 12 in
Round Cutting Capacity - Horizontal At 90 Degrees: 7.0
Blade Width: 19.05; 0.75
Blade Length: 2362.20; 93
Blade Thickness: 0.8; 0.0315
Capacity Under Guides: 12
Coolant System: Yes
Maximum Capacity (Rectangular) at 45? (mm): 120 x 125
Maximum Capacity (Rectangular) at 45? (Inch): 4-3/4 x 4-7/8
Maximum Capacity (Rounds) at 45? (Inch): 5
Maximum Capacity (Rounds) at 45? (mm): 127.00
Blade Width (mm): 19.05
Blade Width (Decimal Inch): 0.7500
Blade Width (Inch): 3/4
Blade Speeds (SFPM): 90, 135, 195, 255
Blade Length (mm): 2362.20
Blade Length (Decimal Inch): 93
Throat Band to Column (Inch): 7
Blade Thickness (mm): 0.80
Blade Thickness (Decimal Inch): 0.0315
Capacity Under Guides (Inch): 12
Overall Height (mm): 955.04
Overall Height (Decimal Inch): 37.6000
