EQUIPPED WITH:

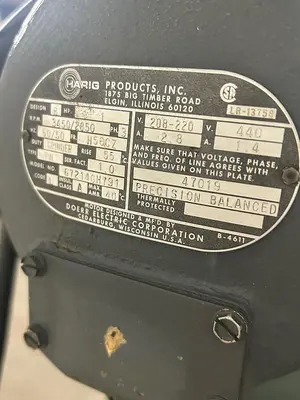

1-1/2 HP motor
Direct drive spindle
High Speed Steel Hardened Ways

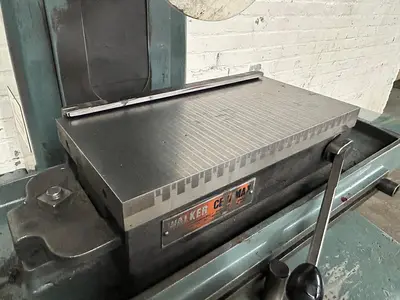

O.S. Walker 6" x 12" Ceramax fine pitch permanent magnetic chuck
Electrical Requirements: 220V/3PH/60HZ
Work Capacity: 6" x 12"
Longitudinal table travel: 12-1/2"
Cross table travel: 7-1/4"
Vertical working height (7" wheel): 12-1/2"
Platen working area: 6" x 12"
Grinding wheel: 7" x 1/2" x 1-1/4"
Elevator hand wheel graduation: .0005"
Cross feed hand wheel graduation: .001"
Spindle speed: 3450 RPM
Overall dimensions: 21" x 25" x 74" high
Estimated weight: 640 lbs.
