Equipped with:
Steady rest
Tailstock with a #3 Morse taper,
3-jaw chuck.
4-jaw chuck.
Taper attachment

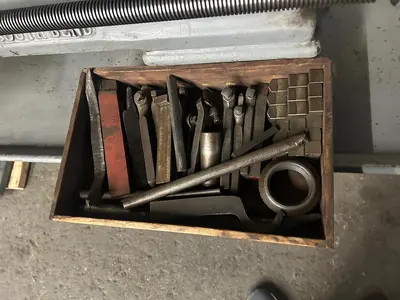

Tool holders Cutting tools

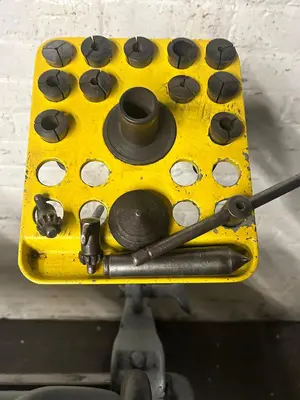

SOUTH BEND 10k 3C COLLET DRAW BAR, SPINDLE ADAPTOR AND COLLET SET
Taper Attachment
Included Accessories: V-belts, flat leather belt, face plates, forged steel tool post, thread cutting stop, centers, spindle sleeve, wrenches, quick-change gear box, 3-jaw chuck, steady rest, and taper attachment
Features

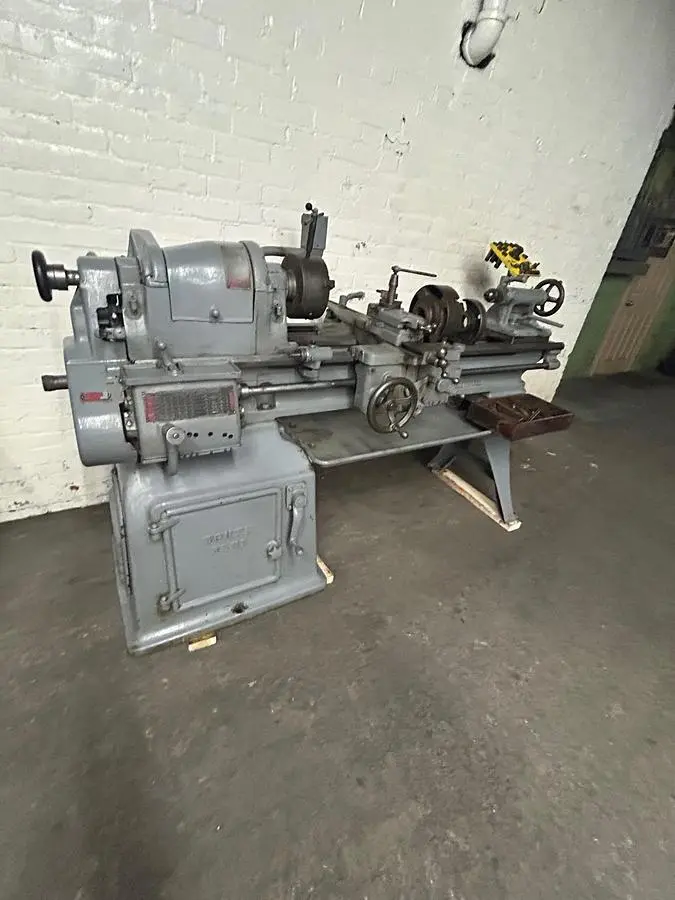

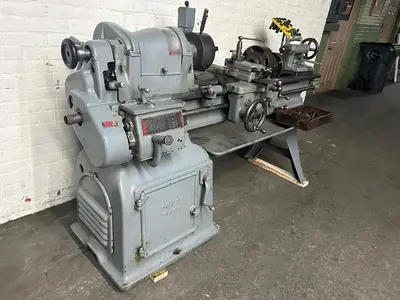

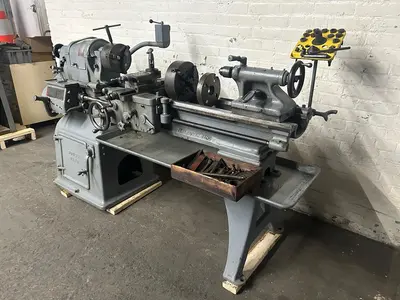

Engine Lathe: A versatile metalworking machine designed for turning, facing, and threading operations.
Manual Operation: Uses hand levers for feeding the cross slide and compound rest.
Tailstock: Can be moved along the bed to support workpieces between centers and has a quill for drilling or other tools.

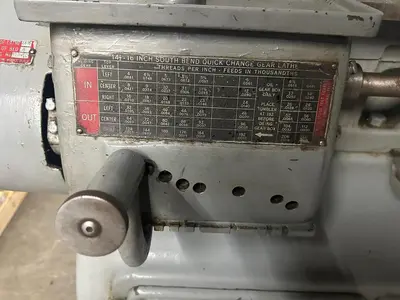

Quick-Change Gearbox: Allows for easy changes in the threading and feed rates.
Adjustable Collars: The compound rest and cross-feed screws have graduated collars for precise measurements.
Electricals: 220 / 3ph / 60 Cycle

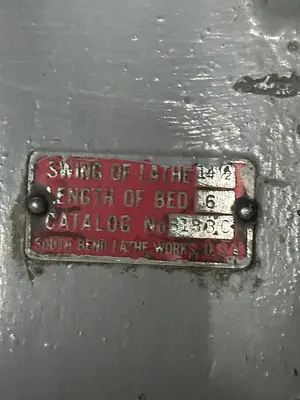

Swing: 14-1/2 inches
Bed Length: 6 feet
Distance Between Centers: 36-1/2 inches
Spindle Speeds: 8 speeds, 27 – 800 RPM
Power: 1.5 HP motor
Tailstock Taper: #3 Morse Taper
Threading: 4 – 224 TPI (threads per inch)
