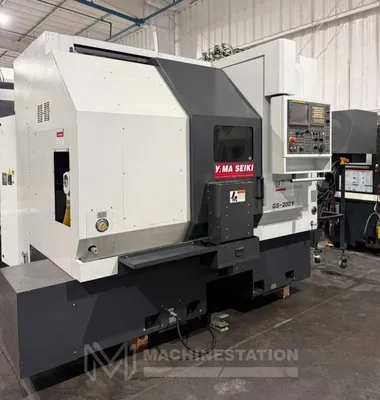

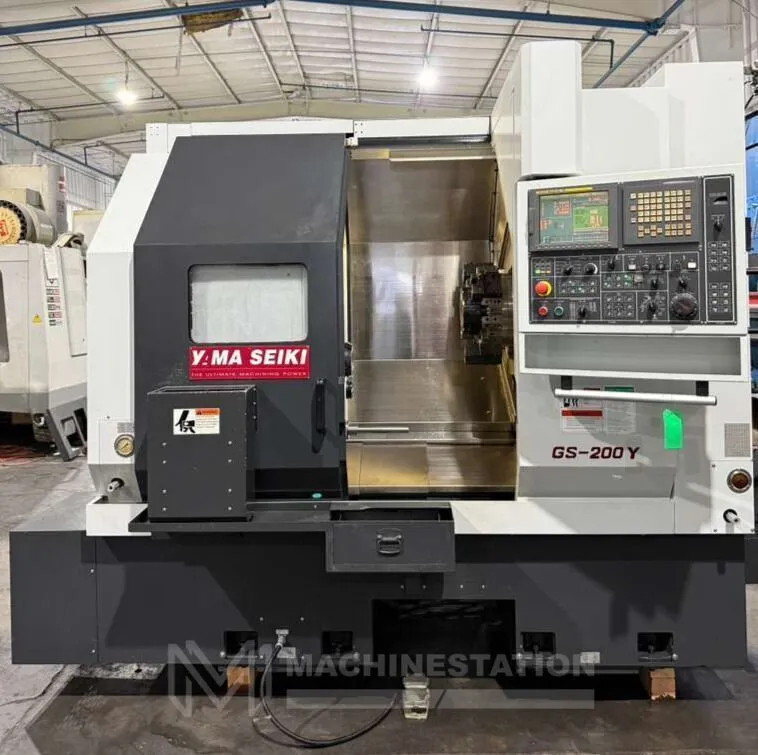

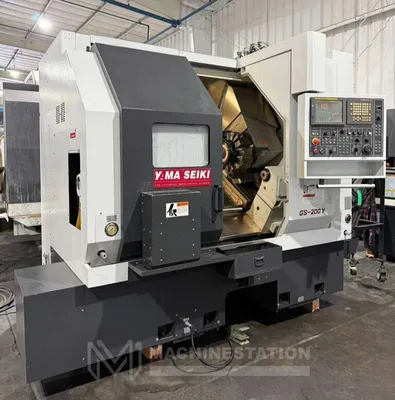

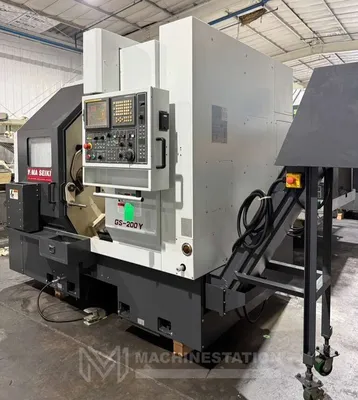

USED 2008 YAMA SEIKI GS-200Y

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Features:

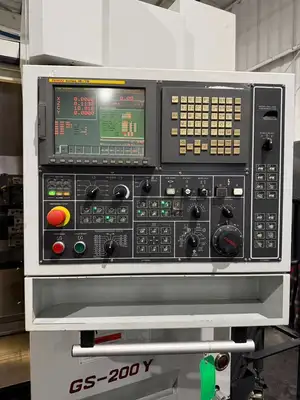

Fanuc 18i-TB CNC Control
3,974 Hours Cutting Time
A2-6, 4800 RPM Spindle
Rigid Tapping
PCMCIA Card Interface
RS-232 Port
Coolant System

Capacity:
Max Turning Diameter: 13.38″
Max Turning Length: 23.62″
Max Swing Over Bed: 18.50″
Max Bar Capacity: 2.05″

Travels:
X Axis Travel: 10.61″
Y Axis Travel: 4.72″
Z Axis Travel: 23.62″
Rapid Traverse X Axis: 787 IPM
Rapid Traverse Z Axis: 945 IPM

Spindle:
Spindle Nose: A2-6
Spindle Bore: 2.59″
Spindle Speed: 4800 RPM
Spindle Motor: 20 HP

Turret:
Turret Capacity: 12 Stations
Turret Index Time: 0.5 Second
Live Tool Speed: 3000 RPM
Live Tool Motor: 5 HP
OD Tool Shank Size: 1″
ID Tool Shank Size: 1.5″

Tailstock:
Tailstock Taper: MT-3
Tailstock Quill Diameter: 3.34″
Tailstock Quill Stroke: 4.72″
Tailstock Body Travel: 18.50″

General:
Power: 50/60 HZ / 220v / 3-Phase
Overall Dimensions: 106″ x 77″ x 75″ High Approx.
Weight: 12,125 lbs

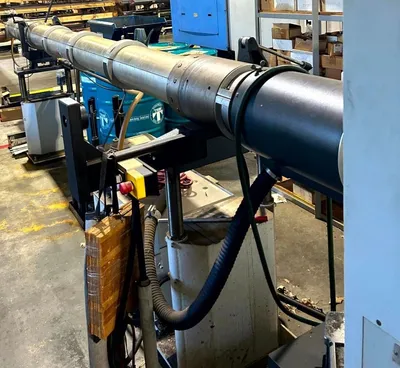

Hydrobar Bar Feeder
MicroCentric CB65-ND Collet Chuck (8″ Chuck Capable)
Servo Controlled Full C Axis on Spindle

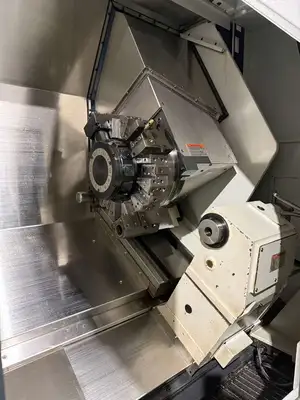

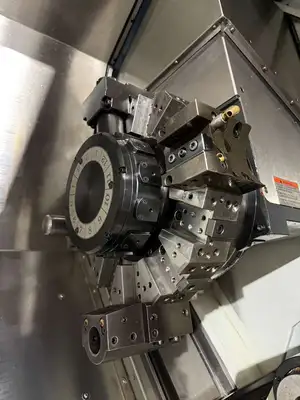

12 Station Live Tool Turret
Y Axis on Turret
Tool Presetter
Parts Catcher
Programmable Tailstock

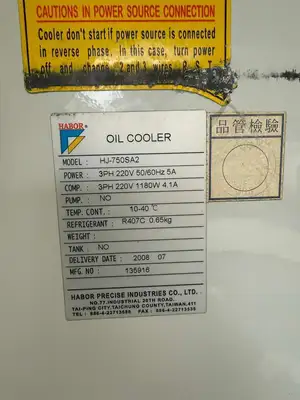

Spindle Chiller Unit
Chip conveyor

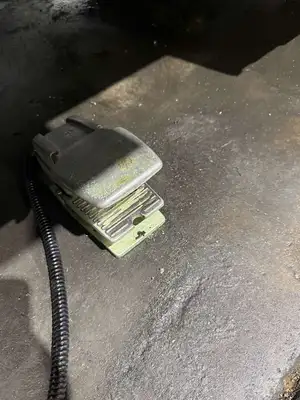

Foot Switch
Levelling Pads
Books & Manuals

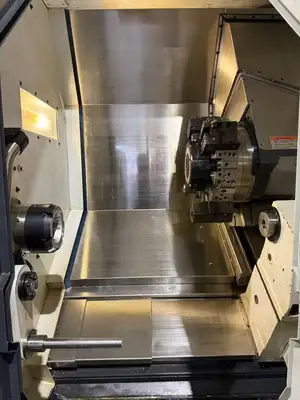

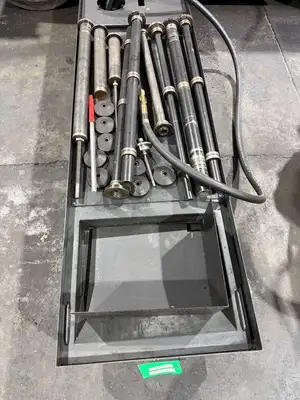

Tool Holders Are Mounted On Turret (As shown in the images)
