The big bore lathe is ideal for large pipe works in oil fields and big valves works. This series offers spindle bores up to 15", center distance range from 60" to 315". The machine bed is 32" wide. Double chucks are available for holding extra long and large work pieces.
| Lathe Type | Big Bore | Big Bore |
| Swing Over Bed | 80.31" | 2,039.9 mm |
| Distance Between Centers | 280" | 7,112 mm |
| Spindle Bore | 6" | 152.4 mm |
| Spindle Nose | A2-15 | A2-15 |
| Number Of Spindle Speeds | 16 | 16 |
| Range Of Speeds | 4-420 rpm | 4-420 rpm |
| Number of Inch Threads | 0.25-30 tpi, 70 | 0.25-30 tpi, 70 |
| Motor | 30 hp | 22.4 kW |
| Dimensions | 31.95 x 7.11 x 6.72 ft. | 31.95 x 7.11 x 6.72 ft. |
| Weight | 44,220 lbs. | 44,220 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR - Parts

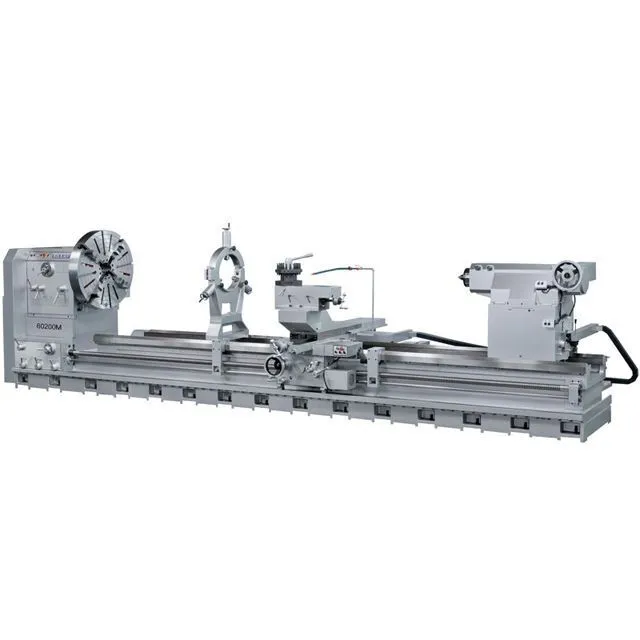

Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
OPTIONAL ITEMS - CALL FOR PRICE:
3 jaw chuck, different sizes
4 jaw chuck, different sizes
Steady rest, larger sizes
Follow rest, different sizes
Face plate with 4 jaws, different sizes
Rear chuck adapter
40 HP, 50 HP in lieu of 30 HP motor
Taper Attachment
Digital Readout System
