| Guide | Spur | Spur |
| Maximum External Gear Diameter | 18" | 457.2 mm |
| Maximum Internal Gear Diameter | 18" | 457.2 mm |
| Diametral Pitch | 34 | 34 |
| Stroke | 5" | 127 mm |
| Dimensions | 5'3" x 4' x 6.5" | 5'3" x 4' x 6.5" |
| Weight | 7,100# | 7,100# |
Specifications:
Stroke: 5"
Maximum External & Internal Pitch Diameter: 18"
Maximum Face Width (External/Internal): 5"/5"
Maximum Diametral Pitch: Spur/Helical: 3/4"/5/7"
Maximum Helix Angle With Standard Guides: 30 Degrees
Maximum Overall Length Of Machine: 5'3"
Maximum Overall Width Of Machine: 4'
Maximum Overall Height Of Machine: 6'5"
Crated For Domestic Shipment: 6'4" x 4'10" x 6'1" High
Boxed For Foreign Shipment: 6'3" x 4' 9" x 6'3" High
Net Weight Of Machines, Approximate: 6800 lbs.
Crated For Domestic Shipment: 7100 lbs.
Boxed For Foreign Shipment: 7900 lbs.
Spur Guide
Solid Spindle

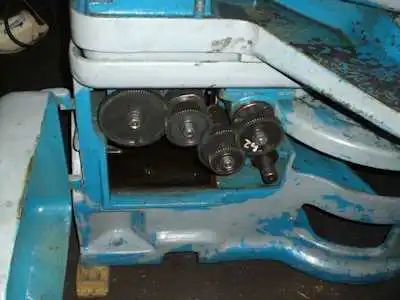

2 Set-Ups of Change Gears For Your Jobs
Coolant
Operators and Parts Manuals
