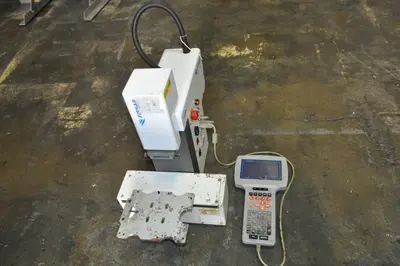

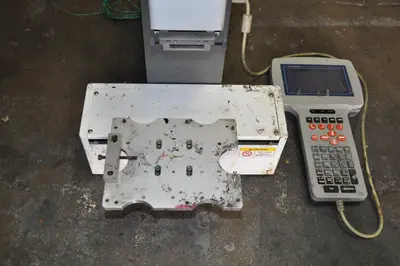

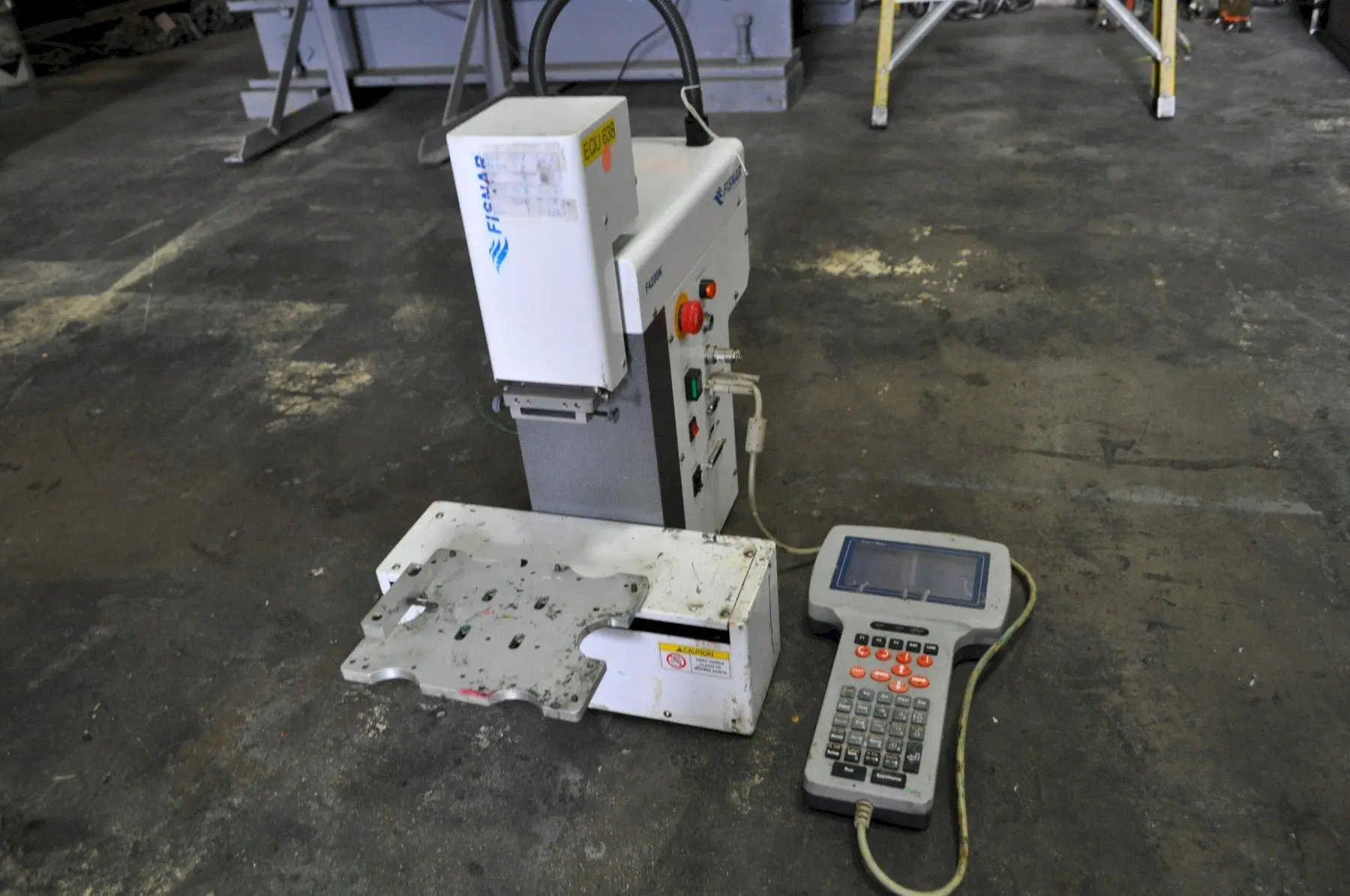

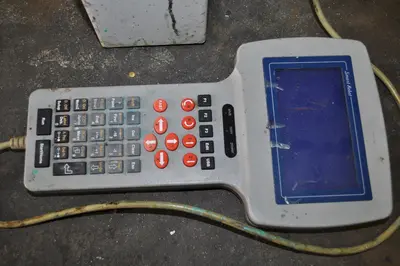

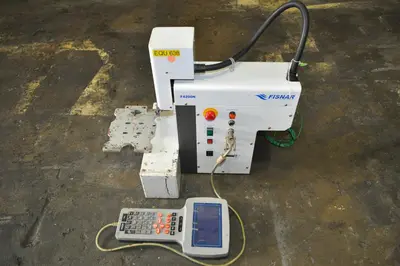

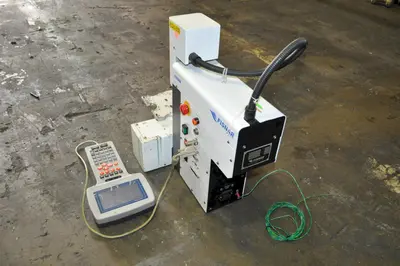

FISNAR F4200N.1 COMPACT BENCHTOP ROBOT DISPENSER WITH TEACH

Working Area X/Y/Z (mm): 200 x 200 x 50 mm
Maximum Speed (X&Y/Z): 500 / 200 mm / secs
Work Load: 3 kg
Tool Load-Z-Axis: 2 kg
Repeatability: +/- 0.02 mm / axis
Resolution: 0.001 mm / axis
Motion Control: PTP & CP
Drive System: Micro stepping motors
Data Memory: 1 - 100 programs | 50,000 points / program
I/O Signals: 8 Inputs / 8 Outputs
External Interface: USB / RS232
Power Supply: Auto-switching AC 100 - 240 VAC, 320 watts
Dimensions (W/D/H): 324 x 499 x 480 mm (13 x 20 x 19")
Weight: 17 kg (37 lb)
Approvals: CE, RoHS, WEE

Repeatability of 0.02 mm
Small footprint for bench space reduction
Step and repeat functionality
USB port for data transfer and back up
Optional PC programming
SPECIFICATIONS
Working Area X/Y/Z (mm)
200 x 200 x 50 mm
Maximum Speed (X&Y/Z)
500 / 200 mm / secs
Work Load
3 kg
Tool Load-Z-Axis
2 kg
Repeatability
+/- 0.02 mm / axis
Resolution
0.001 mm / axis
Motion Control
PTP & CP
Drive System
Micro stepping motors
Data Memory
1 - 100 programs | 50,000 points / program
I/O Signals
8 Inputs / 8 Outputs
External Interface
USB / RS232
Power Supply
Auto-switching AC 100 - 240 VAC, 320 watts
Dimensions (W/D/H)
324 x 499 x 480 mm (13 x 20 x 19")
Weight
17 kg (37 lb)
Approvals
CE, RoHS, WEE
SPECS FROM MANUFACTURERS WEBSITE
