| X Axis | 45.3" | 1,150.6 mm |
| Y Axis | 21.7" | 551.18 mm |
| Z Axis | 21.7" | 551.18 mm |
| Power | 15 hp | 11.2 kW |
| RPM | 10,000 RPM | 10,000 RPM |
| # ATC | 30 | 30 |
| Taper | BT-40 | BT-40 |
| Table-W | 21.7" | 551.18 mm |
| Table-L | 51.2" | 1,300.5 mm |
| # Axis | 3 | 3 |
| Control | CNC (Fanuc Oi-MC Series CNC Control) | CNC (Fanuc Oi-MC Series CNC Control) |
| Dimensions | 118" x 118" x 118" High | 118" x 118" x 118" High |
| Weight | 15433 lbs | 15433 lbs |
Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.
Equipment is sold AS-IS, WHERE-IS. All sales are final.
Features:

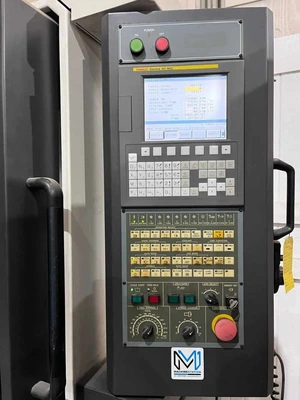

Fanuc Oi-MC Series CNC Control

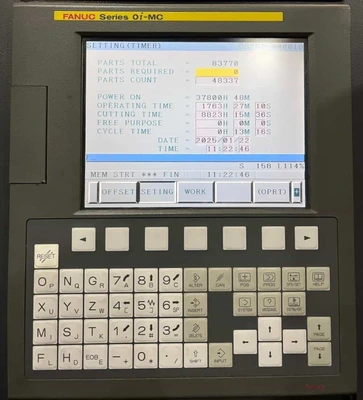

8823 Hours Cutting Time
30 Automatic High Speed Tool Changer
Roller Bearings on X & Y Axis
PCMCIA Card Slot
MPG Control
Rigid Tapping
Telescopic Way Covers
Specifications:
Travels:
X-Axis: 45.3"
Y-Axis: 21.7"
Z-Axis: 21.7"
Rapid Traverse Rates: 1180 Inch Per Minute
Cutting Feed Rates: 945 Inch Per Minute
Spindle Nose to Table (Min.- Max.): 5.9" - 27.6"
Table:
Length: 51.2"
Width: 21.7"
Number of Std T-Slots:
T-Slot Width:
Max Weight on Table: 1764 lbs
Spindle:
Taper Size: BT-40
Speed Range: 10,000 RPM
Spindle Power: 15 HP

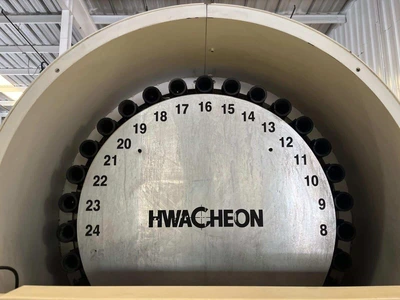

Automatic Tool Changer:
Capacity: 30 Station Side Mounted
Tool Weight: 13.2 lbs
Max Tool Dia: 3.54"
Max Tool Length: 9.8"
Tool Changing Time: 1.5 Seconds
General:
Air Required: 80 psi, 4 scfm
Power: 220v / 25 kva / 3-Phase
Overall Dimensions: 118" x 118" x 118" High
Weight: 15433 lbs
10,000 RPM High Precision Spindle
Flood Coolant System
Oil Chiller
Books & Manuals
