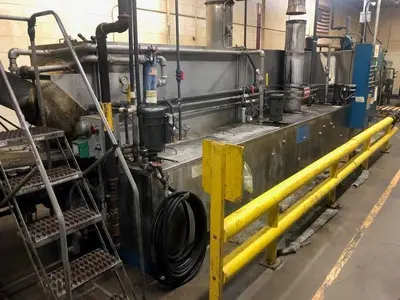

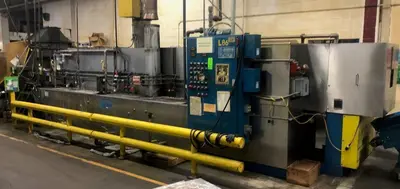

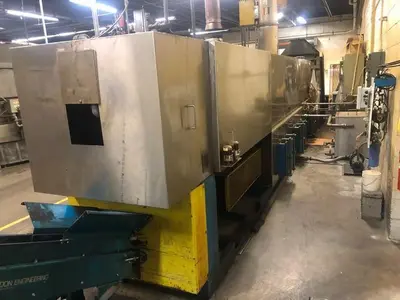

30" X 28' JENSEN ROTARY WASHER 4 STAGE

Polished T304 Stainless Steel Exterior
Painted Safety Blue

Drum Diameter: 30"
Drum Perforations: 3/16" Diameter Holes
Drum Construction: 11 Ga. T304 Stainless Steel
Helix: 4-3/4" High x 10" Spacing, Continuously Welded,
Both Sides
Tumblers: 1-1/2" Formed Angles, 120 Degrees, 3 Per Helix
Drum Length: 268" with 239" Perforated
Drum Rotates on 4" Osborn Load Runners

Opening, Entry: 15"
Opening, Exit: 30"

Solid Entry: 24"
Solid Exit Drum Lengths: 25"

Floor to Centerline: 54"

4-Stage

Wash Stage:

Length: 84"
Tank: 600 Gallons
Heat: 180 Degrees F, Natural Gas, 8" Stainless
Steel Tube (Shared with Rinse)
Pump: 5 HP Gusher, 100 GPM @ 30 PSI

Rinse Stage:

Length: 60"
Tank: 425 Gallons
Heat: 180 Degrees F, Natural Gas
Pump: 3 HP Gusher, 80 GPM @ 30 PSI

Rust Preventaion Stage:

Length: 48"
Tank: 350 Gallons
Heat: 180 Degrees Electric, Indeeco,
480 Volt
Pump: 3 HP Gusher, 60 GPM @ 30 PSI

NOTE - All Tanks:

Removable Screens
16" x 20" Cleanout Doors
2" NPT Bottom Drains
Removable Covers, Both Top of Drum and Tanks
1-1/2" Overflow Drains

Blow-Off Stage:

Length: 72"
5 HP Chicago Fan Blower
5,500 CFM @ 2" SP
Heat: 250 Degrees F, 45 KW Electric,
480 Volt

EQUIPPED WITH:

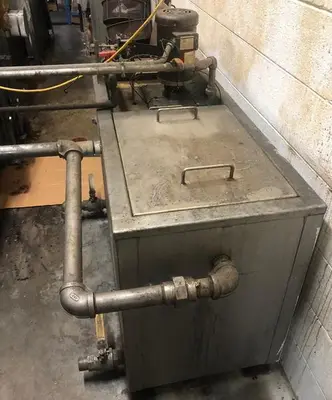

Separate Stainless Steel Coalescing Oil Separator,
with 1 HP Pump

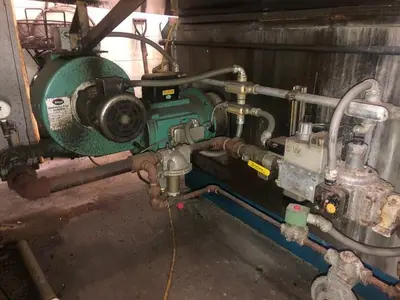

Eclipse IP-132 Gas Burner with NFPA Valve Train
Counterflow Capability Between Tanks 2 & 3 by Valve
15" Tubaxial Exhaust Fan, 3/4 HP with Damper

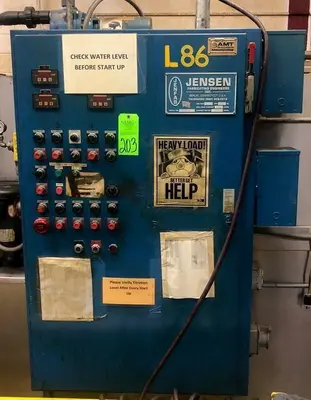

PRIMARY ELECTRICAL POWER SUPPLY: 460/60/3


MOTOR DATA: 2 HP DC Drum Drive, Seco DC Vari-Speed, 0 to 6 RPM

OVERALL DIMENSIONS: 294" x 100" x 75" High (Shipping)
112" to Top of Exhaust Stack
53" x 23" x 44" High Oil Coalescing Tank
AGE 1999
WEIGHT: 15,000 Lbs.
CONDITION: Good, As Taken Directly From Service,
Original Unit Overall Layout Available
