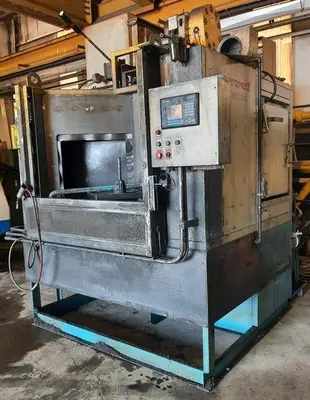

20" x 20" x 20" GERREF S.S. Carousel Washer, Electrically Heated Wash & Blow-Off

AGE: 2003

SPECIFICATIONS:

All Stainless Steel Construction

Part Envelope, Max., Approx.: 20" Sq.

Each part(s) load onto part specific fixtures 180 degrees
apart mounted to the center of the rotating carousel.
Each fixture has a drive cog on the bottom of the fixture
whitch meshes with a fixed drive chain mounted on the
inside radius of the wash and blow-off chamber. Therefore
the fixture rotates in front of the wash nozzles and the
air knives as the carousel rotates providing 360 degrees
of part coverage.

Stations:

Load / Unload
Heated Wash
Heated Air Knife Blow-Off

EQUIPPED WITH:

(60 Rows of Top/Outside/ Bottom Spray Nozzles
(3) Rows of Top/Outside Air Knives

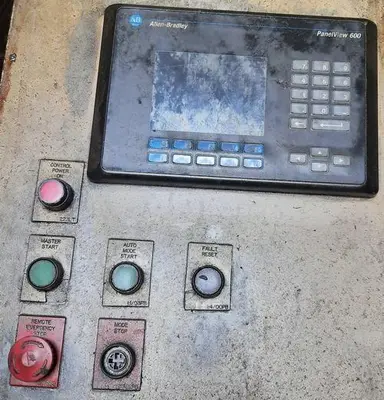

Allen-Bradley PanelView 600 Operator Interface
Watlow 480 Volt, 54 KW Electric Wash Tank Heater
Watlow 480 Volt, 18 KW Electric Blow-Off Heated

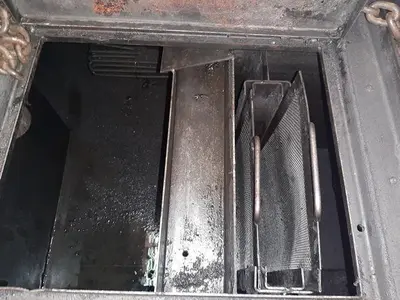

(2) Removalable Wash Tank Chip Screens

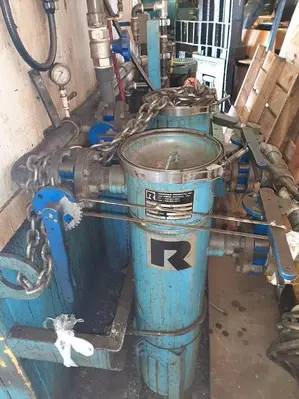

(2) Rosedale Prod. Inc Wash Solutions Filters

MOTOR DATA: 5 HP Wash Pump, 230/460/60/3
