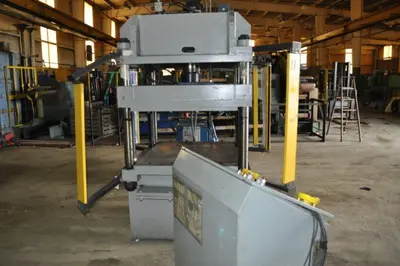

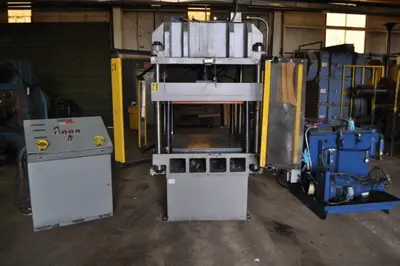

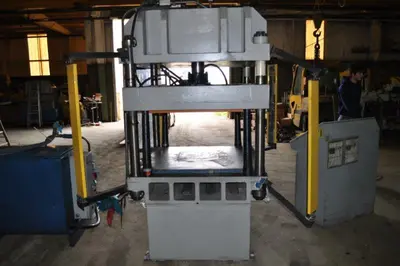

USED 2000 H & H 1003

MODEL #:  1003
30 TONS MAXIMUM CAPACITY
10" STROKE
22" DAYLIGHT
50" x 50" BED
50" x 50" RAM
41" x 33" BETWEEN THE POSTS
5.5" DIAMETER MAIN CYLINDER
3.5" DIAMETER POSTS
FLOOR STANDING

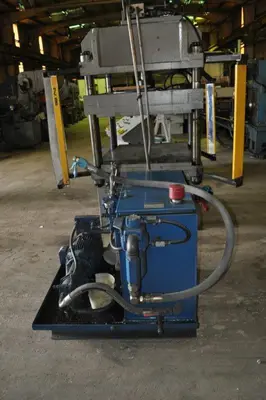

HYDRAULIC UNIT MOUNTS ON THE FLOOR
PALM BUTTONS

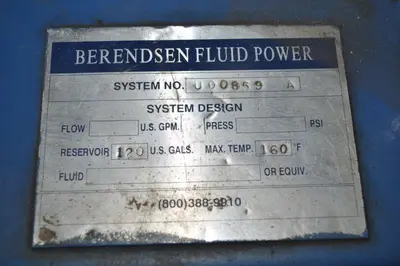

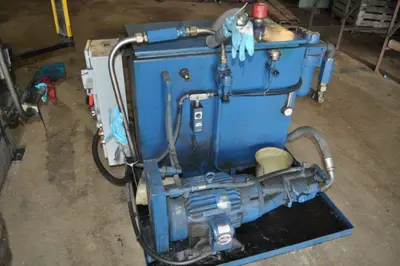

120 GALLON BERENDSEN FLUID POWER HYDRAULIC UNIT
LIGHT CURTAINS ON 4 SIDES
MANUFACTURED DATE 3-1-2000

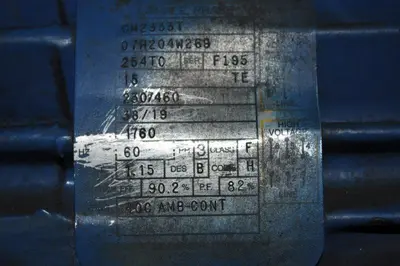

15 HP 230/460 VOLT, 1760 RPM
132" LR x 60" FB x 110" TALL APPROXIMATE DIMENSIONS
9500 LB APPROXIMATE WEIGHT
GOOD CONDITION
