40,000 x 60" AMERICAN STEEL LINE UNCOILER STRAIGHTENER COMBINATION

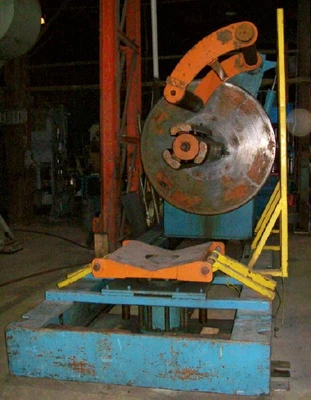

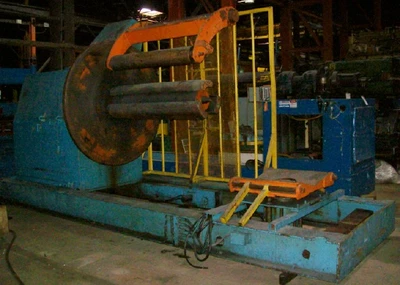

UNCOILER:
MODEL #:  1000
SERIAL #:  5867
19"-24" ID
72" OD
60" MANDREL LENGTH
TRAVELING REEL WITH COIL LIFT
HYDRAULIC EXPANSION
MOTORIZED WITH AIR CLUTCH AND BRAKE
FULL BACKER PLATE
60" SNUBBER ROLL

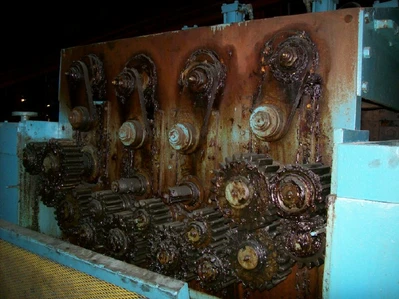

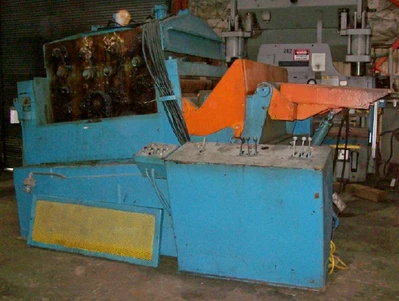

STRAIGHTENER:
MODEL #:  5-5
SERIAL #:  5917
.120" - .200" CAPACITY AT 60" WIDTH
.120" - .260" CAPACITY AT 36" WIDTH
(5) 5" DIAMETER STRAIGHTENING ROLLS
HYDRAULIC ADJUSTMENT ON UPPER ROLLS
8" POWERED DIAMETER  ENTRY AND EXIT PINCH ROLLS
BOTTOM AND PINCH ROLLS POWERED
END DE-BENDER
** A NEW SERVO FEEDER CAN BE SOURCED TO MAKE THIS A COMPLETE SERVO FEED LINE
PEELER TABLE
40 HP MOTOR AND CONTROLS
FOR ADDITIONAL $100,000
