ORDER: 8000
COE 8,000 LBS X 24" X .090" SERVO FEED LINE
NEW 2000

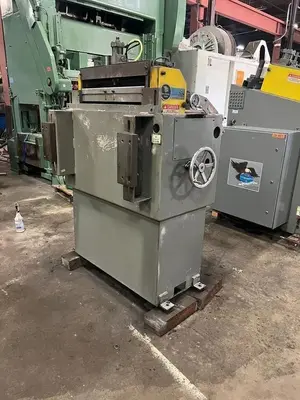

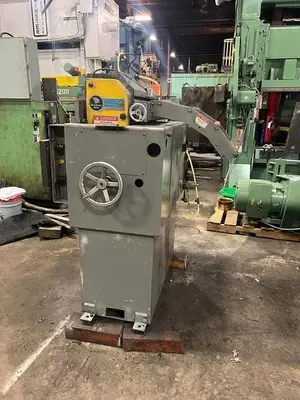

SERVO FEED MDL# CPRF-SM-2 24
S/N# 27454-1
24" X .090"
6" X .187
2.63" ROLL DIA
SPEED 340 FPM
CABINET BASE ADJUSTABLE

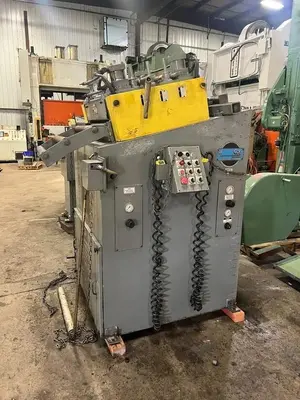

COE STRAIGHTENER MDL# CPPS-300-24
S/N# 27454-2
24" X .090"
12" X .125"
2" X .187"
SPEED UP TO 80 FPM
7 ROLL 3" DIA
5 HP VS MOTOR
FULLY FUNNELED STOCK PATH FOR MATERIAL THREADING
3 ROLL CATENARY SECTION
AIR CYLINDER RAISE & LOWER OF UPPER PINCH ROLLS
UPPER STRAIGHTENER ROLL HEIGHT SCALES & POINTERS
INDEPENDENT ADJ OF UPPER STRAIGHTENING ROLLW
ELECTRICAL SAFETY DISCONNECT
5 HP AC VARIABLE SPEED DRIVE - DIGITAL CONTROL
CENTRAL POINT LUBE SYSTEM
460 VOLT THREE PHASE
ENTRANCE SIDE & EXIT SIDE PINCH ROLLS

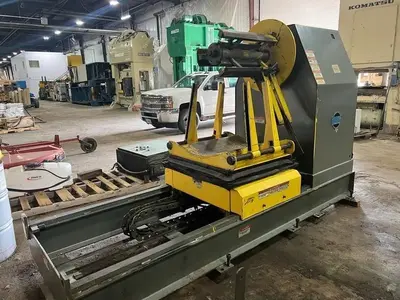

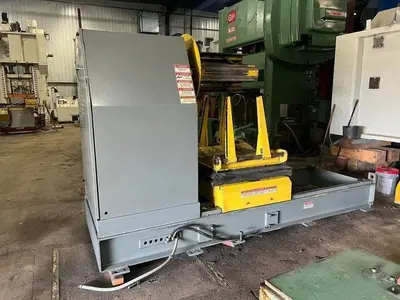

COE COIL REEL MDL# CPR-PO-8024
S/N# 27454-3
CAPACITY 8,000 LBS
COIL WIDTH 24"
COIL ID 16"-21"
COIL OD 60"
POWERED EXPANSION
AIR DISC BRAKE
BACKPLATE
2 COIL KEEPERS
HYD COIL CAR
