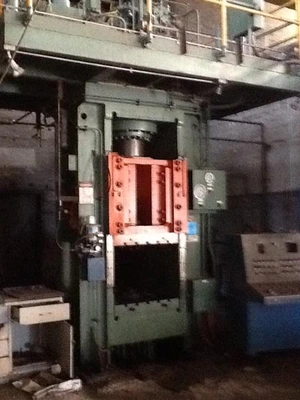

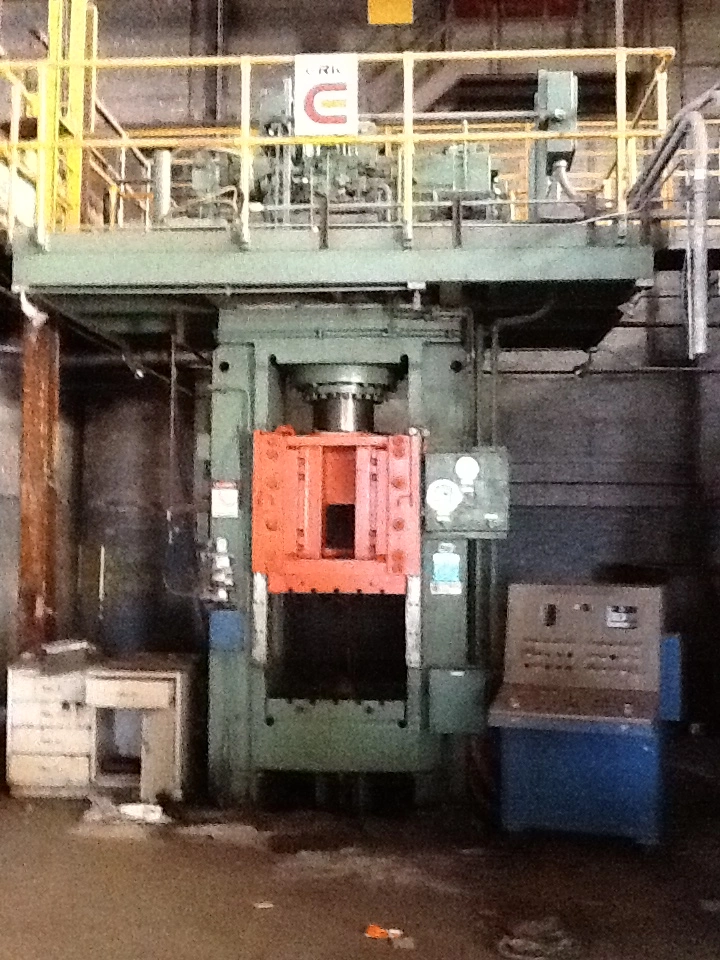

500 TON ERIE HYDRAULIC PRESS

S/N:  24-9316
YEAR:  1993
PRESSING FORCE MAIN SIDE:
500 TON FULL TONNAGE PRESSING
100 TON LOW TONNAGE PRESSING
55" TON RETURN CAPACITY @ 3500 P.S.I.

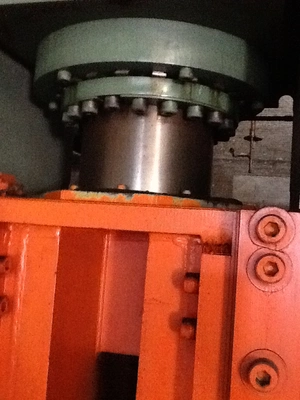

17" DIAMETER MAIN RAM DIAMETER ( SINGLE ACTION
6-4" CLOSING & RETURN RAMS (DOUBLE ACTING)**
3537 PSI SYSTEM PRESSURE
**BY SELECTOR SWITCH SETTING CLOSING RAMS ONLY USING LOW PRESSING
PRESSING FORCE TOP & BOTTOM EJECTORS
50 TON BOTTOM EJECTOR CAPACITY (UP ACTING)
50 TON TOP EJECTOR CAPACITY (MACHINING PROVISIONS ONLY)
2000 P.S.I. SYSTEM PRESSURE
8-3-1/2" DIAMETER TOP & BOTTOM EJECTOR RAMS (DOUBLE ACTING)
WORKING DIMENSIONS:
36" x 36" x 5" BED BOLSTER
36" x 36" x 5" SLIDE BOLSTER
30" DAYLIGHT (BETWEEN BOLSTERS)
24" MAIN SLIDE STROKE (MAXIMUM)
6" SHUT HEIGHT
2" TOP EJECTOR STROKE
6" BOTTOM EJECTOR STROKE
30" FLOOR TO TOP OF BOLSTER
OPERATING SPEEDS:
315"/MIN. RAPID ADVANCE
315"/MIN. LOW TONNAGE PRESSING TO 100 TON
63"/MIN. FULL TONNAGE PRESSING TO 500 TON
50"/MIN. BREAKAWAY STRIPPING
700"/MIN. RETURN AFTER BREAKAWAY
100"/MIN. BOTTOM EJECTOR (UP ACTING)
