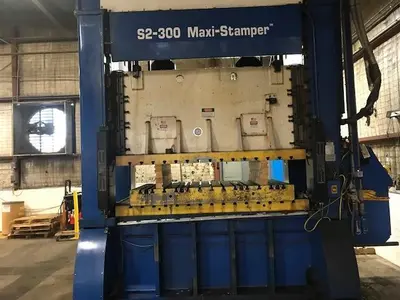

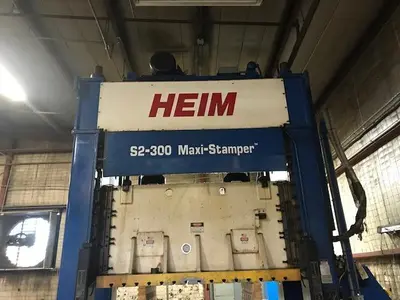

MODEL: S2-300 MS
Serial# H-3939
Capacity: 300 Ton
Stroke Length: 10”
Adjustment: 10”
Shut Height: 32” Over Bolster (SDAU)
Bolster Sixe: 100” lr x 60” fb x 6” thick
Speed: 25 - 50 SPM
Equipped With:

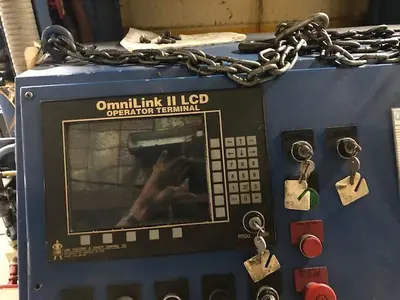

Link Omnilink 5000 Control
Die Protection
Tonnage Monitor
50 HP Motor with AC Frequency Drive (Variable)
Recirculating Lubrication
T-SLots on 6” Centers
Vibro Mounts
Dual Palm Buttons
YEAR: 2001
GA Drawing on File
