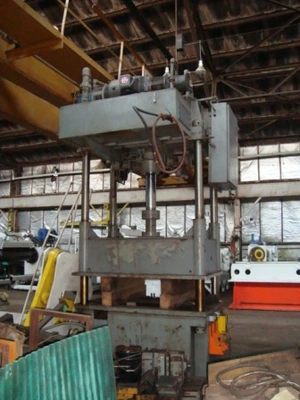

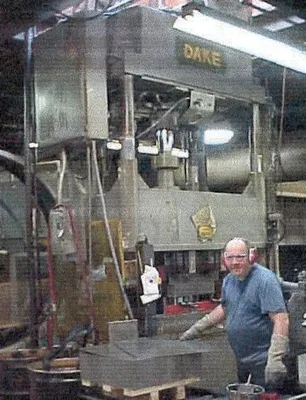

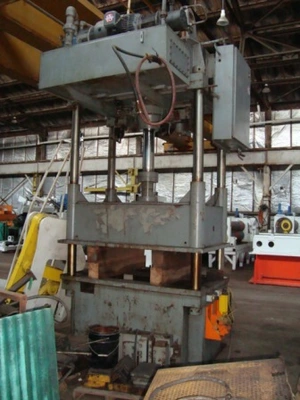

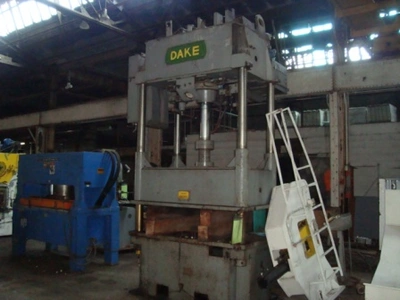

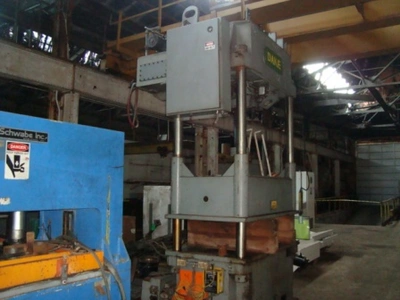

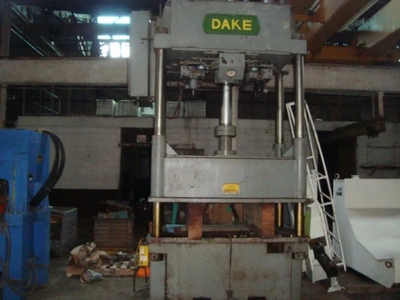

USED 1973 DAKE 27-677

SN: 16708
MODEL: 27-677
1973
DISTANCE BETWEEN 4.5 DIA. POSTS: 61" L-R X 30" F-B
PLATEN AREA: 62" X 43"
BOLSTER: 61" X 43" X 5 ¾"
STROKE: 0-18"
DAYLIGHT OPENING: 28"(W/ 12" RAM SPACER)
DAYLIGHT OPENING (TOTAL): 40" MAX
CUSHION TONNAGE: 50.8 TONS@ 100PSI
POWER UNIT(TOP REAR OF PRESS): HYDRAULIC PUMP
25 HP 1800 RPM
230/460/3/60 MOTOR
500 IPM
33 IPM PRESSING TO 150 TONS
75 IPM BREAKAWAY
405 IPM RETURN
PUSH BUTTON OPERATION
STROKE AND PRESSURE CONTROL
DUAL PALM BUTTON OPERATION
PRESSURE GAUGE
84"LR x 60" FB x 162" TALL
22,000# ESTIMATED WEIGHT
