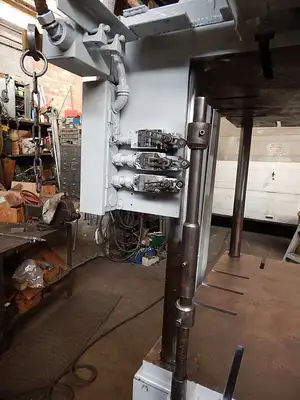

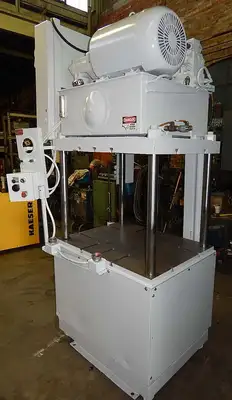

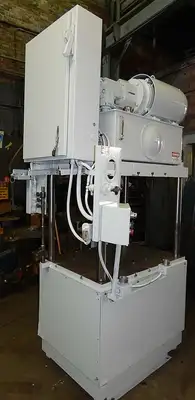

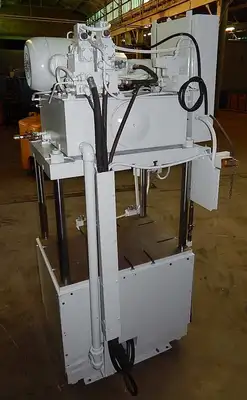

25 TON KEYSTONE 4 POST UP-ACTING HYDRAULIC TRIM PRESS

MODEL #:  N/A
SERIAL #:  005
25 TONS MAXIMUM CAPACITY
32" FB x 34" LR BED AND UPPER PLATTEN
4 POST @ 2-1/2" DIAMETER
26" LR x 24-5/8" FB DISTANCE BETWEEN POSTS
13" STROKE (MIN)
30-1/4" DAYLIGHT OPENING

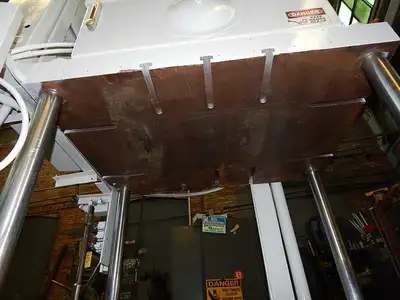

4" UPPER PLATEN THICKNESS
69" FLOOR TO PLATEN
110" OVERALL HEIGHT
UP-ACTING BED

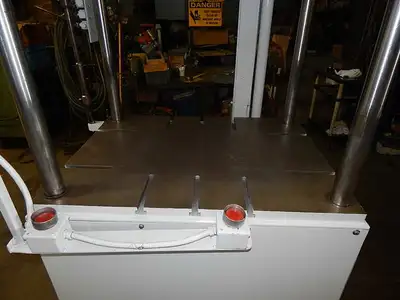

T-SLOTTED LOWER RAM AND PLATEN
DUAL PALM BUTTONS
MOTOR:  20 HP 220/440/ 3/60
INCH, SINGLE, AUTO MODES
