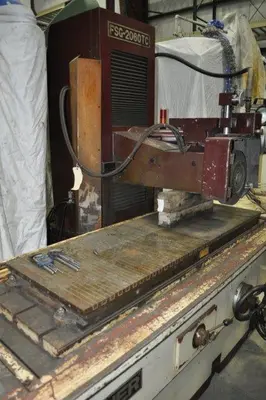

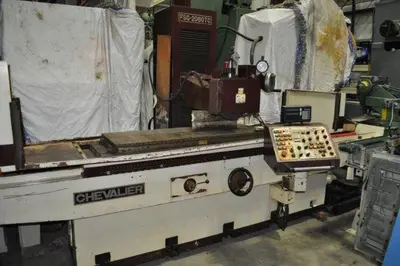

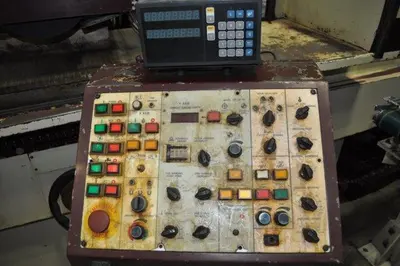

MODEL #: FSG-2060 ADII

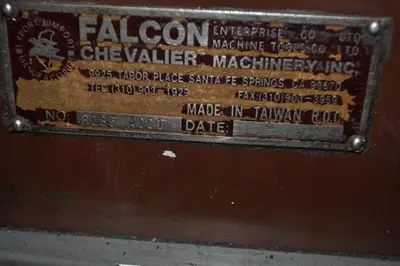

SERIAL #: R285 A001

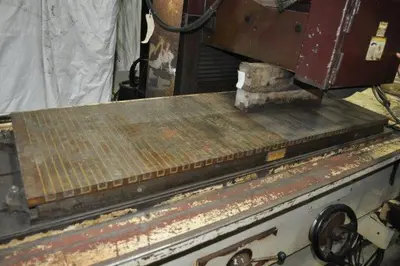

19-5/8" x 59" TABLE SIZE
2420 LBS MAXIMUM TABLE CAPACITY

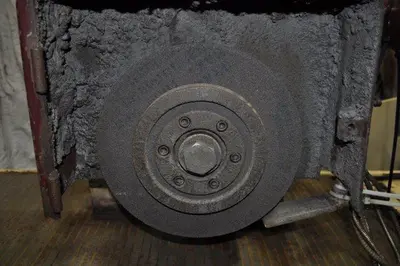

14" x 2" x 5" STANDARD GRINDING WHEEL
63" LONGITUDINAL TRAVEL
16-82 I.P.M LONGITUDINAL TRAVEL SPEEDS
22" CROSS TRAVEL LENGTH
4.9 F.P.M. CROSS TRAVEL RATE
1/8"-1.25" CROSS TRAVEL AUTOMATIC INCREMENT RANGE
28.625" MAXIMUM TABLE TO CENTER OF SPINDLE
1740 SPINDLE R.P.M.

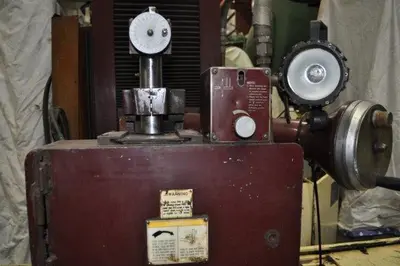

GRINDING WHEEL DRESSER
10 HP SPINDLE MOTOR
5 HP HYDRAULIC MOTOR

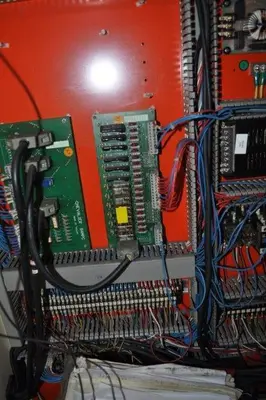

220/440/3/60 ELECTRICS
195" LR x 118" x 110" APPROXIMATE DIMENSIONS
14,300 LBS APPROXIMATE WEIGHT
GOOD CONDITION
$74,500.00 REPLACEMENT COST
