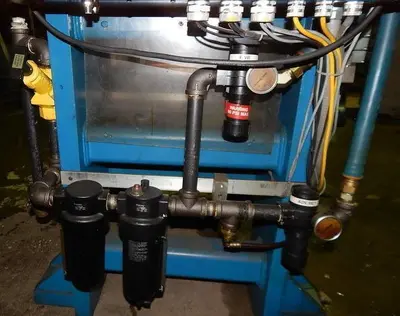

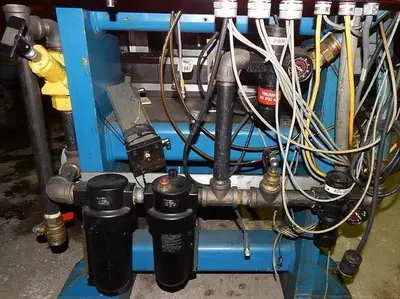

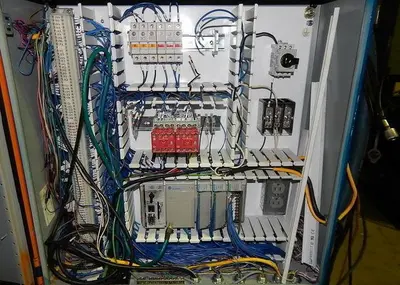

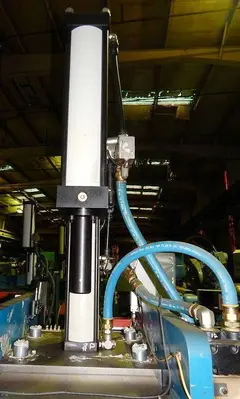

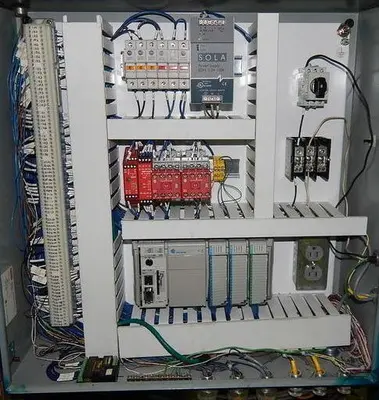

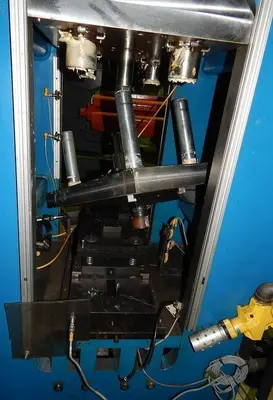

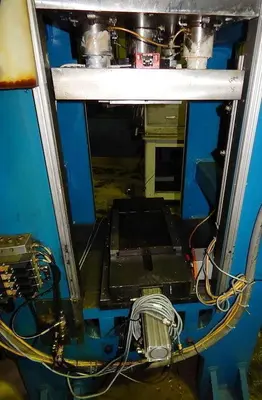

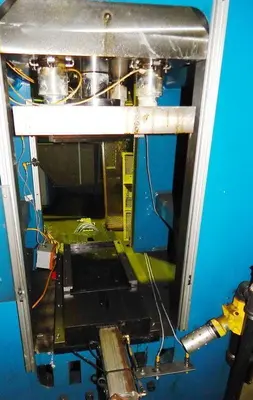

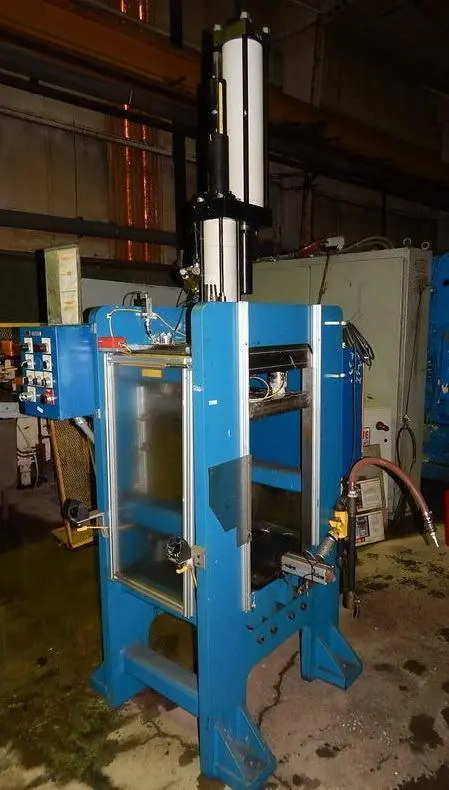

16 Ton FARGER & JOOSTEN MULTIPOWER Air/Oil Press

ORDER: 16

16 Ton FARGER & JOOSTEN MULTIPOWER Air/Oil Press
 Serial Number: 2723
 SPECIFICATIONS:
       C-Frame Design
       Tonnage:  16 Ton
       Stroke:  7.9", the last .79" is the Power Stroke
       Daylight Opening:  13"
       Bed & Ram:  14" x 14" x 2" Thick
       Force in Approach Stroke:  5.6kN
       Force in Retract Stroke:  5.5kN
       Force in Power Stroke:  140kN
       Pass Line, Floor to Top of Bed:  40"
 OVERALL DIMENSIONS:  34" LR x 50" FB x 125" High
