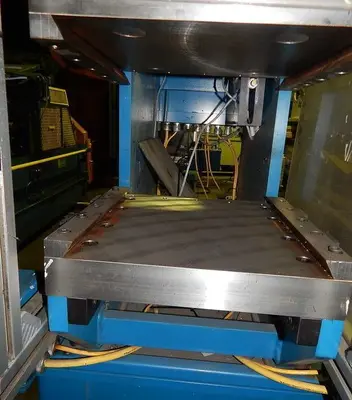

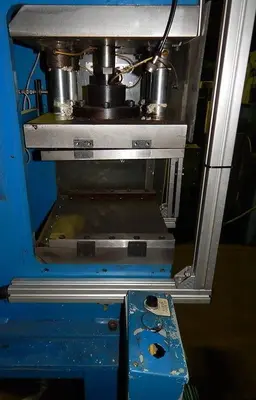

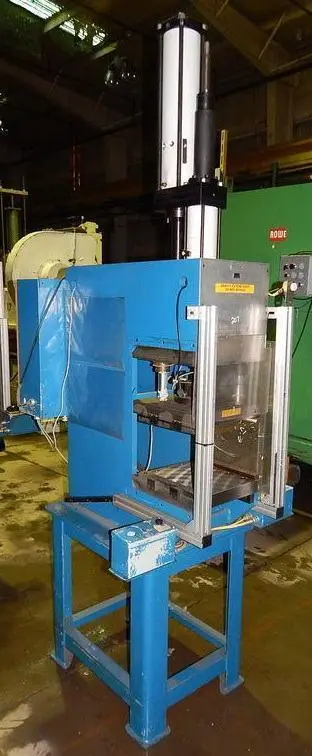

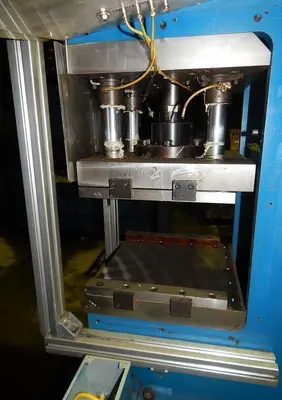

8 Ton FARGER & JOOSTEN MULTIPOWER Air/Oil Press

ORDER: 8

8 Ton FARGER & JOOSTEN MULTIPOWER Air/Oil Press

 Serial Number: 2731
 SPECIFICATIONS:

 This is a Multipling Air over Oil Press

       C-Frame Design

       Tonnage:  8 Ton

       Stroke: 7.9" (adjustable), the last .79" Power Stroke
       Daylight Opening:  13"
       Bed & Ram:  14" x 14" x 2" Thick

       Force in Rapid Approach Stroke:  742 lbs.
       Force in Retract Stroke:  742 lbs.
       Force in Power Stroke:  8 tons (US)

       Pass Line, Floor to Top of Bed:  40"

 NOTE: Full Factory Support through Schmidt Presses, Cranberry, PA

 OVERALL DIMENSIONS:  34" LR x 50" FB x 125" High
