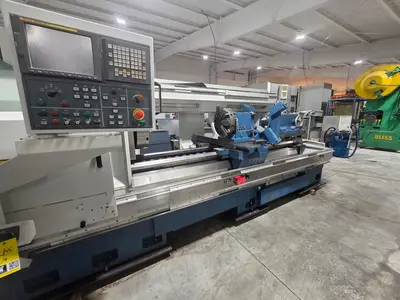

2006 ROMI 33 x 80 Oilfield Hollow Spindle CNC Lathe, 10.2"Hole Through, FANUC 21iT Control
A "Romi 30 x 80" CNC lathe likely refers to a heavy-duty model in the Romi C Series with roughly 30 inches (760mm) swing over bed and 80 inches (2000mm) between centers, featuring robust cast iron construction, powerful motors (e.g., 25-72+ HP), Fanuc controls, large spindle bores (A2-8" or larger), and high torque for heavy machining in demanding industries like oil & gas or aerospace, built for rigidity and precision over long lengths.
ROMI: Producing high quality technology since 1930.
Since the beginning, Romi has been recognized for its focus on creating products and innovative solutions which has guaranteed its technological leadership among large manufacturers of machine tools.
Romi’s industrial complex is among the most modern and productive sites in the fields of machine tools, plastic processing machines, and high quality cast iron parts.
| Swing | 33" | 838.2 mm |
| Machining Length | 90" | 2,286 mm |
| Bar Capacity | 10.2" | 259.08 mm |
| Power | 60 hp | 44.7 kW |
| Max RPM | 750 RPM | 750 RPM |
| Tailstock | Yes | Yes |
| Live Tooling | No | No |
| Sub Spindle | No | No |
| Control | CNC (FANUC 21iT) | CNC (FANUC 21iT) |
| Dimensions | 17' x 8' x 7' | 17' x 8' x 7' |
| Weight | 30.000 lbs | 30.000 lbs |
Specifications:
Swing 33" 838.2 mm

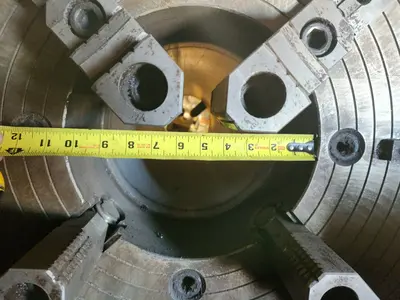

Chuck Size 24" 609.6 mm
Bar Capacity 10.2" 266.7 mm
Over Cross Slide 23
Turning length 90"
Turret - horizontal 8-position
Power set-up 480V 3 phase
Motor Power 60 hp 44.7 kW
Max RPM 750 RPM 750 RPM
Turning Dia 23" 584.2 mm
Tailstock Yes Yes

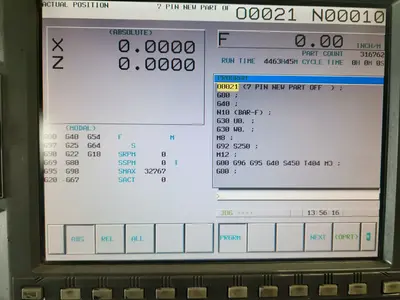

Control CNC (Fanuc 21i-Series)
Weight 30,000 lbs
2- Chip pans 5ftx11x4ft 1000lbs ea
Conveyor 4ft x 12ft x 6ft 2000
Chiller 2x2x5 1200
Hydraulic pump 2x3 x5 x 1500
Steady Rest
Tailstock
