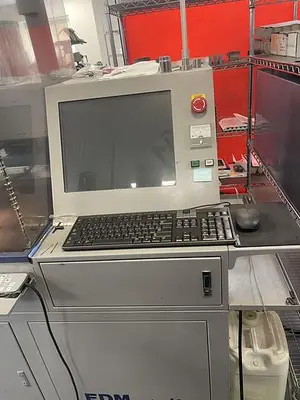

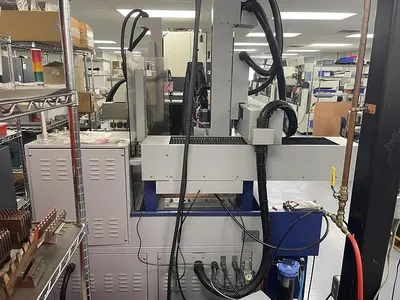

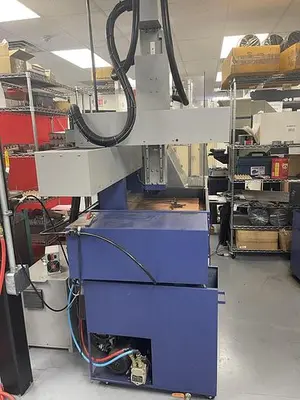

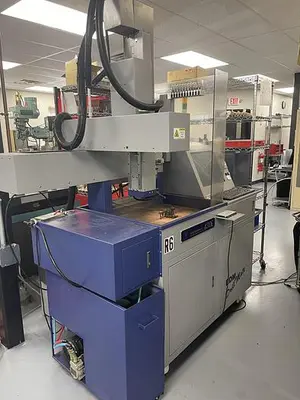

USED 2012 PERSEO-ERIE 430I

PC Based CNC Controller
De-Ionized Water Filtration System
15 Gallon Dielectric System
Transformer

X-Axis: 21"
Y-Axis: 12"
Z-Axis: 25.6"
Table Size: 23.5" x 17.25"
Table Travels: 21" x 12"
Work Tank Dimensions: 27.25" x 19.25"
Min. Ram Height to Table: 1"
Electro-Guide Travel: 15.5"
W-Axis Power Backslide: 11.3"
Electrode Size: 0.1 mm - 3.0 mm
Max Z Motor Axis Travel with Chuck: 15.5"
Max Workpiece Weight: 675 lbs.
Max Workpiece Height: 15.5"
Tool Capacity: 22 Station
Peak Current Selections: 10 Steps
Voltage Selections: 3 Steps
Pulse On Time Setting: 0 - 100%
Pulse Off Time Setting: 0 - 100%
Electrode Spindle Speeds: 0 - 200 RPM
Capacitors: 5 Steps
Machine Dimensions: 72" x 48" x 96"
Machine Weight: 3,000 lbs.
