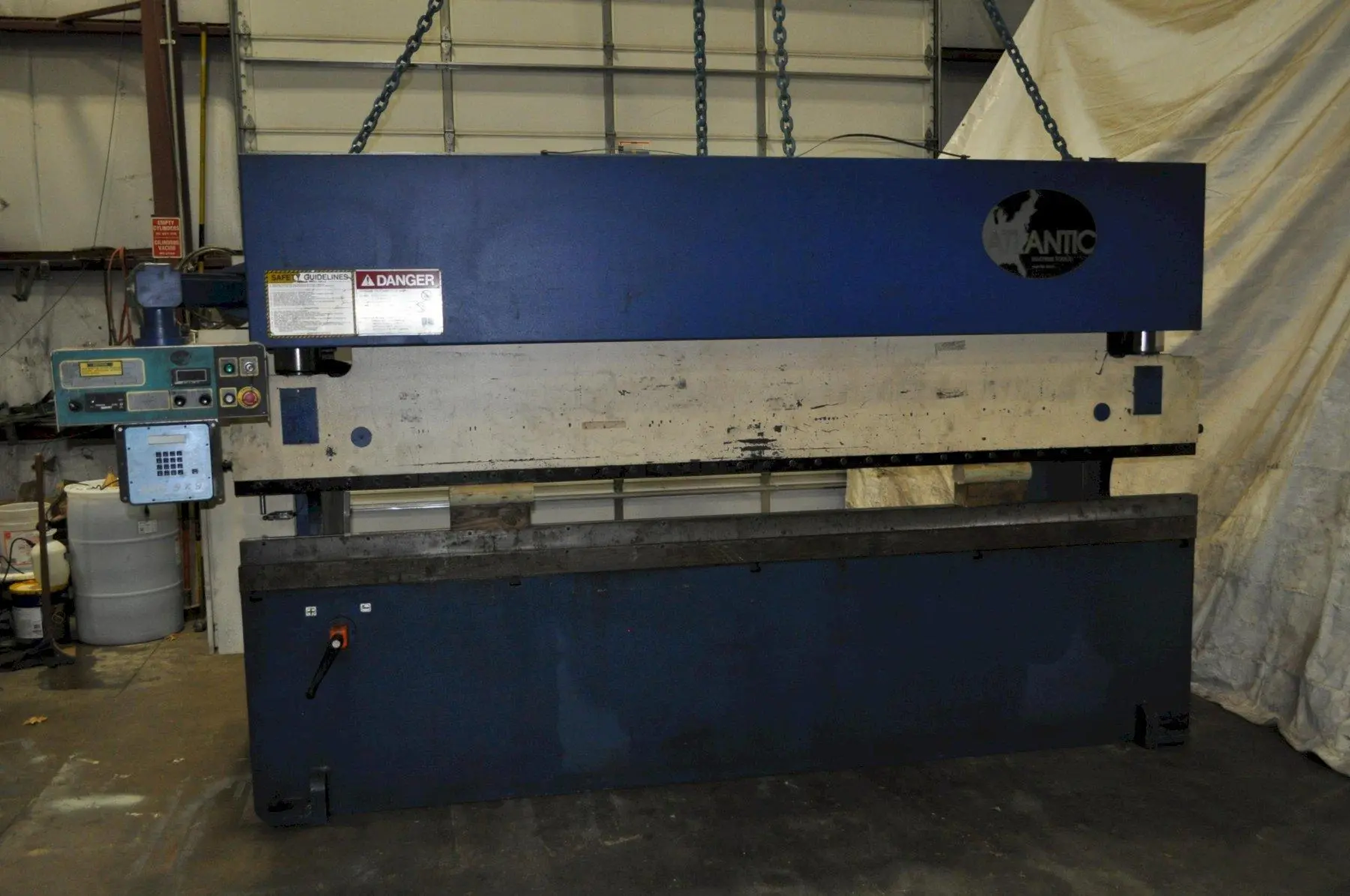

USED ATLANTIC HDE 150-12

ORDER: 150

Capacity ...................... 150 Tons
Overall Length Of Bed & Ram ... 142”’
Distance Between Housings ..... 122”
Stroke ........................ 4.72”
Open Height ................... 12.8”
Closed Height ................. 8.1”
Throat Clearance .............. 9.8”
Approach Speed ................ 165 Inch Per Minute
Form Speed .................... 18 Inch Per Minute
Return Speed .................. 150 Inch Per Minute
Main Motor Horsepower ......... 15

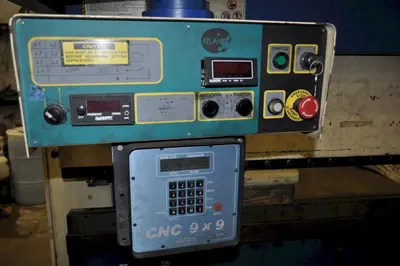

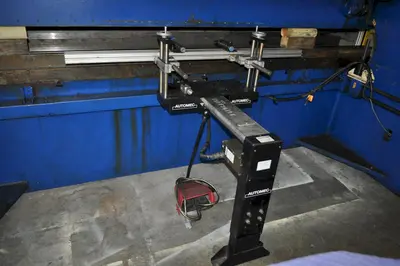

Automec CNC 9x9 Backgage
Foot pedal
3.25" Lower Die Holder
