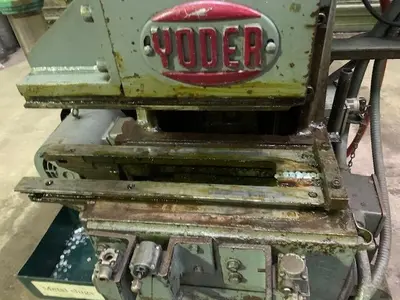

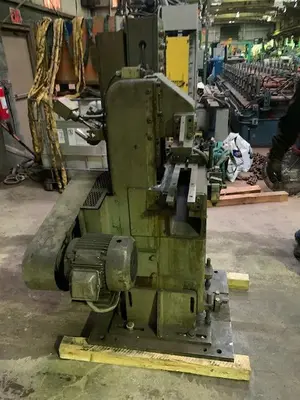

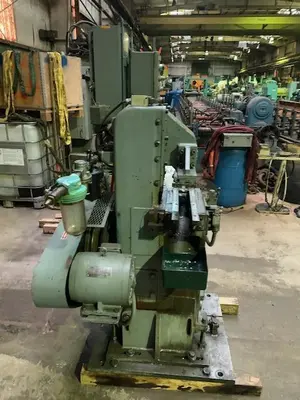

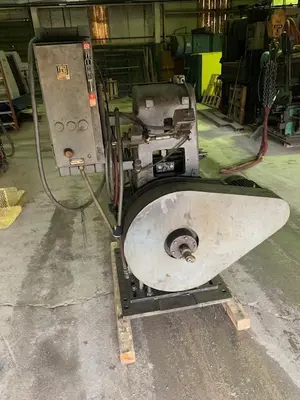

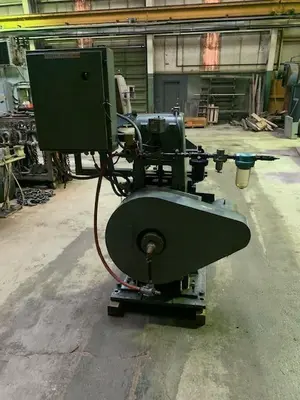

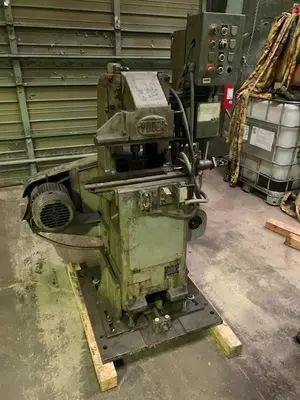

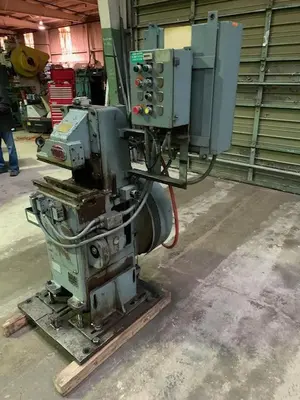

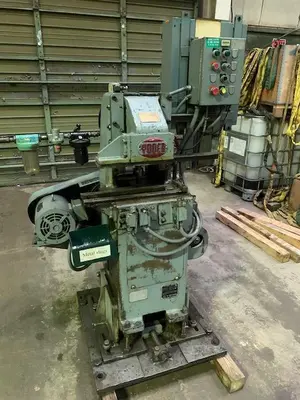

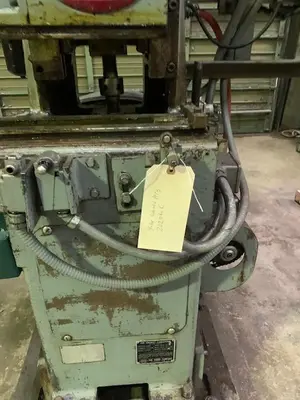

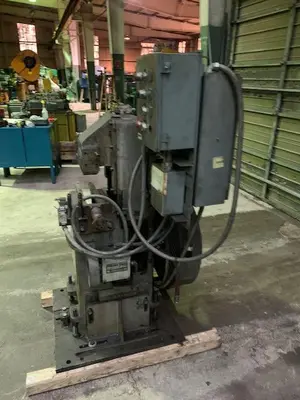

USED YODER P-25

25 Ton Capacity
2" Stroke
8.5" Open Height
Air Clutch
4.5" Throat
8" X 16" Table
6 way Base Adjustment
$5" Pass Line Height
2HP  230/3/60

CUTTING CAPACITY, MAXIMUM SECTION AREA, MILD STEEL, DOUBLE SHEAR DIE
(DEPENDENT UPON SHAPE OF SECTION) ............... 0.25" SQ.

MAXIMUM TUBE SIZE (O.D. x THICKNESS) ............... 1-1/4" x .050"
MAXIMUM STOCK SPEED (FPM) .......................... 150
MAXIMUM NUMBER CUTTING (STROKES PER MINUTE) ........ 100

MINIMUM LENGTH OF CUT WITH STANDARD TRIGGER:
AT 100 FPM ............ 15"
AT 125 FPM ............ 18"
AT 150 FPM ............ 22"
MAXIMUM WIDTH OF SECTION
(DEPENDENT UPON SHAPE) ........................... 5"

CUTTING STROKE (STANDARD) .......................... 2-1/4"
CUTTING STROKE (MAXIMUM-SPECIAL) ................... 2-3/4"

ELEVATION, FLOOR LINE TO BOTTOM OF STOCK:
MINIMUM ............... 34-1/2"
MAXIMUM ............... 38"

LATERAL ADJUSTMENT OF FRAME ON SUB-BASE:
(EACH SIDE OF CENTERLINE) ........................ 3"

AIR CONSUMPTION AT 100 CUTTING:
(STROKES PER MINUTE) AT ATMOSPHERIC PRESSURE ..... 1.2 CFM

MOTOR: 2 HP 3/60/208-220/440 (1160) RPM WITH CONTROLS

54" X 44" X 71"
1500 LBS Est Weight
