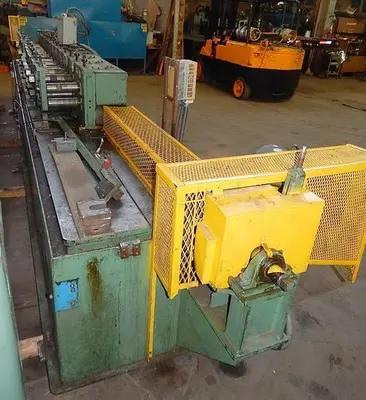

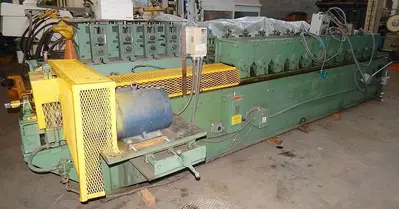

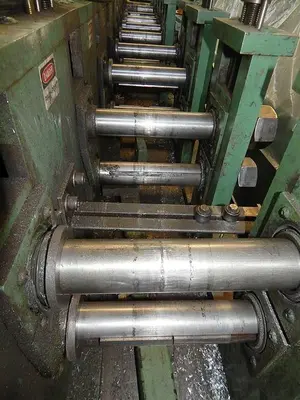

USED 2005 DAHLSTROM 400-12

Serial Number: 498
 AGE:  2005
 MODEL NUMBER:  400-12

 SPECIFICATIONS:

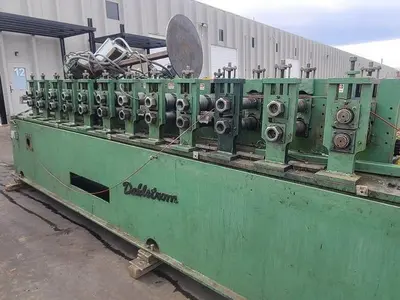

       12-Stand on a 16-Stand Base

       Spindle Diameter:  2"
       Roll Space:  8"
       Horizontal:  13"
       Vertical:  4-1/2" to 7-1/2"

       Keyway:  3/8"
       Base to Centerline:  7-3/8"

       Speed:  60 to 100 FPM

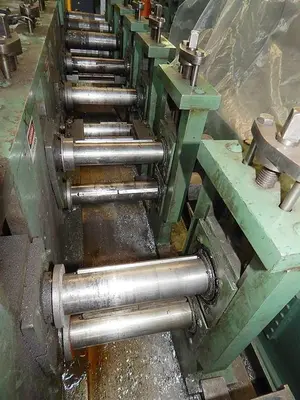

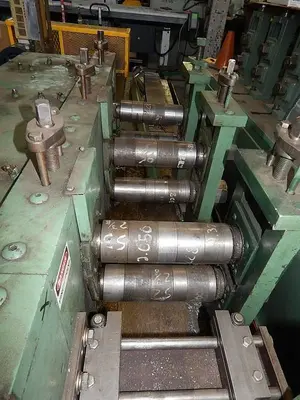

       Roll Diameter:  8"

       Line Direction:  Right-to-Left

 EQUIPPED WITH:

       Yaskawa Vari-Speed Drive with Full Length Control
       E-Stop Safety Cable

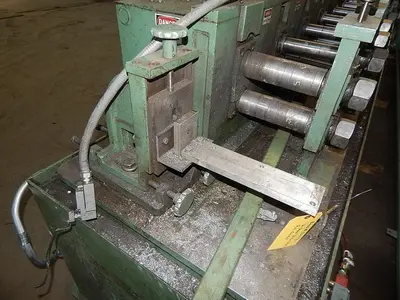

       Exit Straightener Base With 3-Axes Of Adjustment
       Thread Jog Switch
       End of Coil Stop Switch

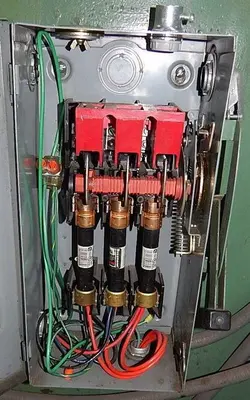

 MOTOR DATA:  15 HP, 240/480/60/3

 OVERALL DIMENSIONS:  256" x 72" x 60" High
 WEIGHT:  17,000 Lbs.
 CONDITION:  As Taken From Service
