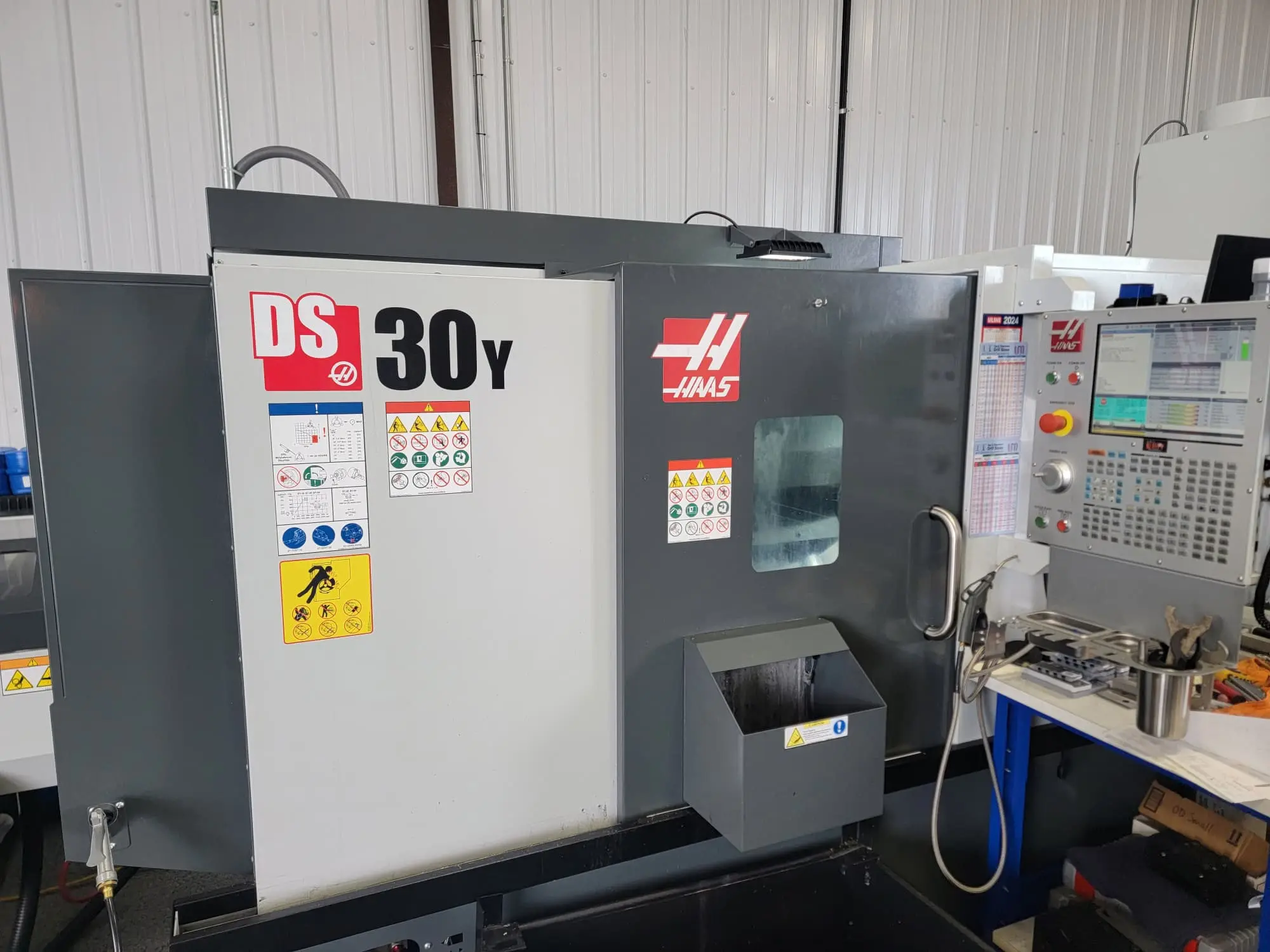

USED 2023 HAAS DS-30Y

Chuck Size: 8″
Bar Cap: 3″
Max Cutting Diameter: 18″
Max Cutting Length: 23″
Max Swing: 31.7″
X Axis Travel: 12.5″
Z Axis Travel: 23″
Y Axis: ±2.0″
Spindle Nose: A2-6
Spindle Speed: 4,500 RPM
Spindle Motor: 30 HP
Main Spindle C Axis:
Max Rating: 5.0 HP
Positioning (±) 0.01 °
Sub Spindle Nose: A2-5
Sub Spindle Speed: 4,000 RPM
Sub Spindle Motor: 20 HP
Live Tooling:
Max Speed: 4,000 RPM

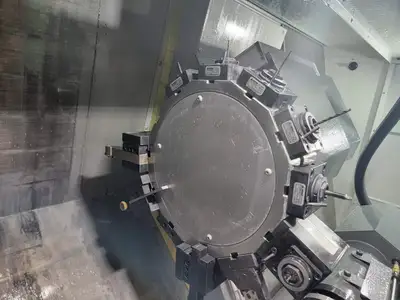

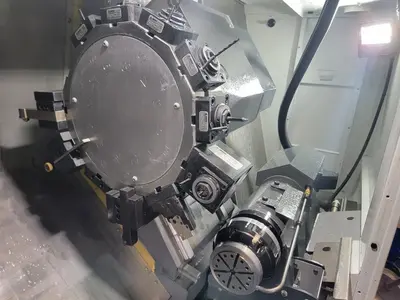

Turret: 24 Stations
Equipped With:
Haas CNC Control
Sub Spindle
Chuck Air Blast
4000-rpm Live Tooling with 24-Station BMT65 Turret and C Axis
Belt-Type Chip Conveyor

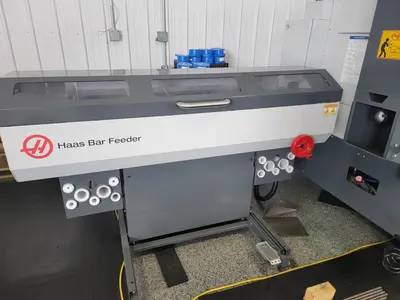

Haas Bar Feeder
High-Pressure Coolant 300 PSI
Auto Tool Presetter
Parts Catcher
Sub-Spindle Air Blast
Enclosure Exhaust System
Coolant Tank Oil Skimmer
Macros
Rigid Tapping
M19 Spindle Orientation
VPS Editing
Media Display
1GB Max Memory
Wireless Networking
Compensation Tables
