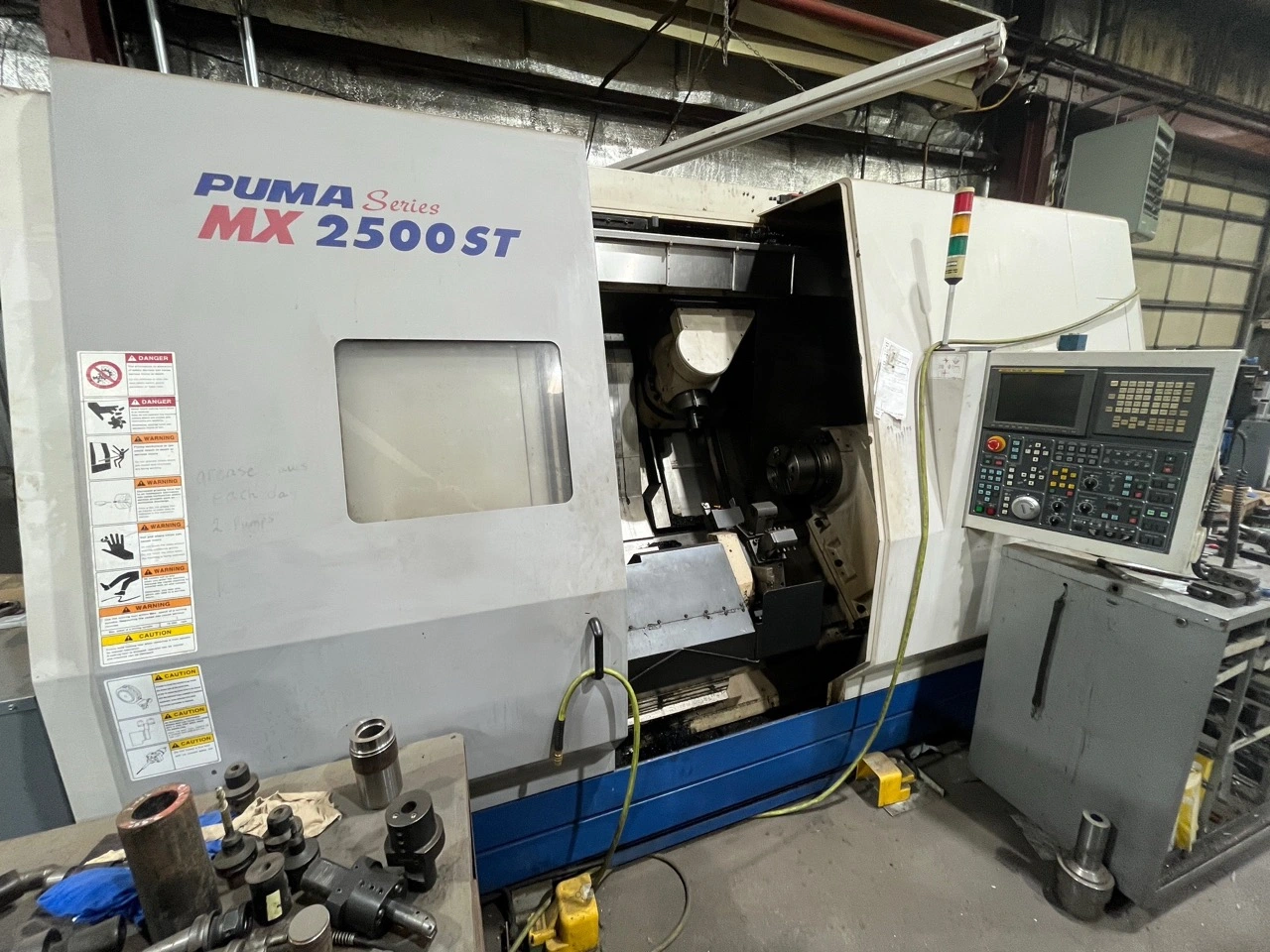

USED 2006 DOOSAN PUMA 2500ST

Maximum Turning Diameter 21.25″
Maximum Turning Length 40.15″
Bar Working Diameter 2.99″
X-axis Travel 7.28″
Z-axis Travel 44.88″
Main Spindle Speed 3,500 Rpm
Spindle Nose A2-8
Spindle Bore Diameter 3.54″
Live Milling Speed 10,000 Rpm
B-axis Indexing 0.001 Deg
Tooling Shank Captco-c6
Main Spindle Motor 34 hp/29 Hp
Live Milling Motor 20 Hp
Approximate Dimensions 180″ X 91″
Approximate Height 102.36″
Approximate Weight 27,500 Lbs
Equipped With:

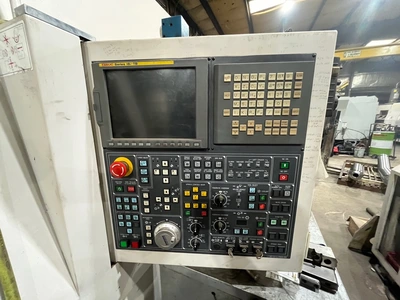

Fanuc 18i-tb Control
10″ Diameter Left & Right Chucks
B-axis Milling Spindle
12 Station Lower Turret With Live Milling
Sub-spindle
C-axis
Y-axis
40 Station Automatic Tool Changer
Chip Conveyor
