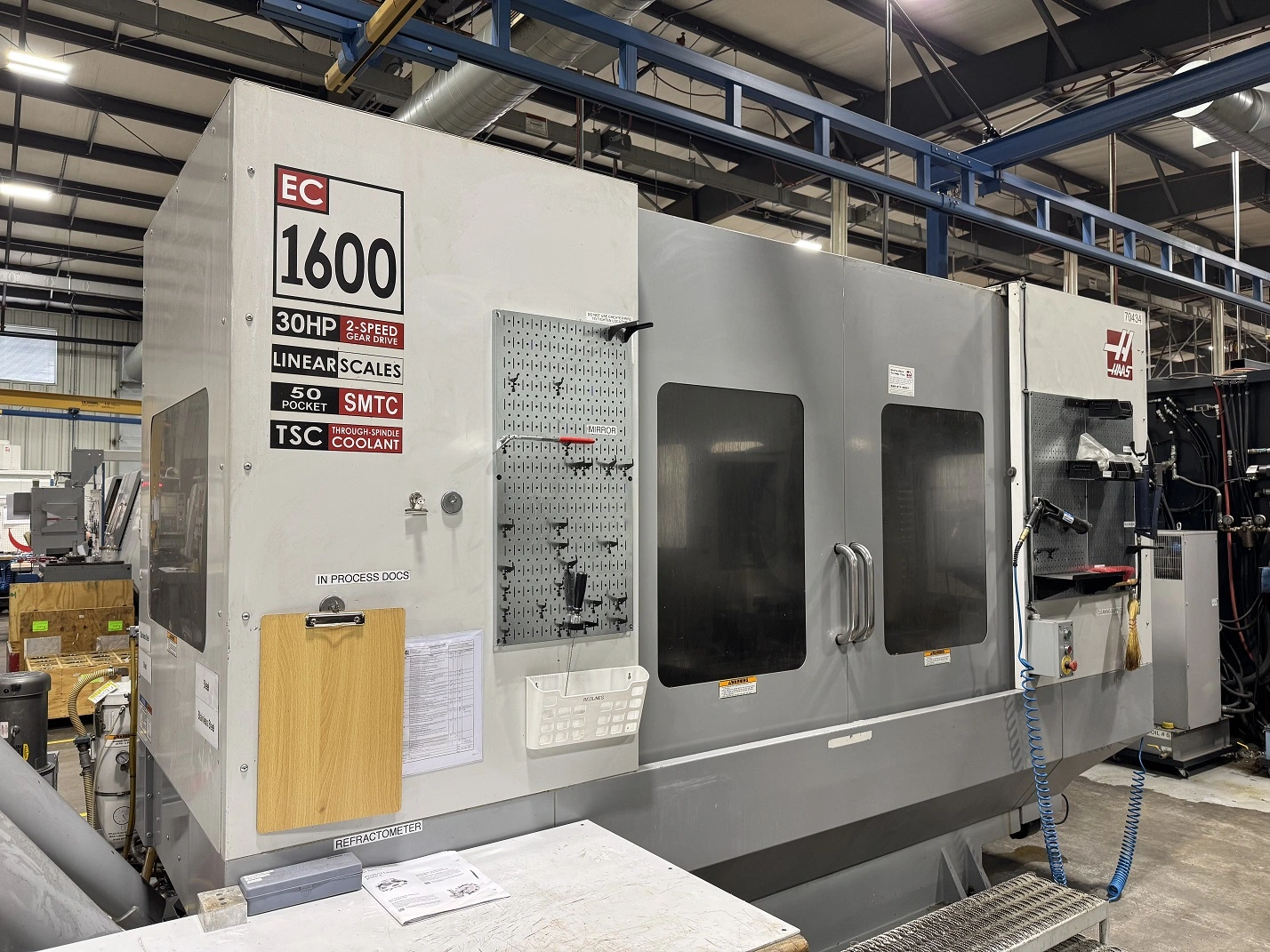

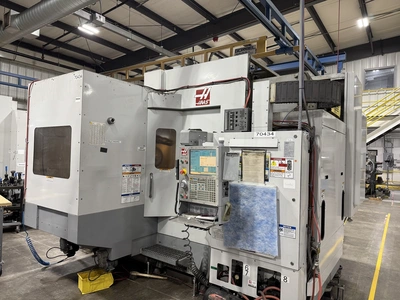

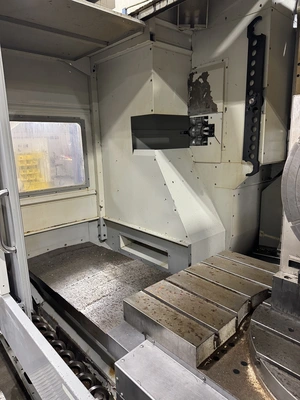

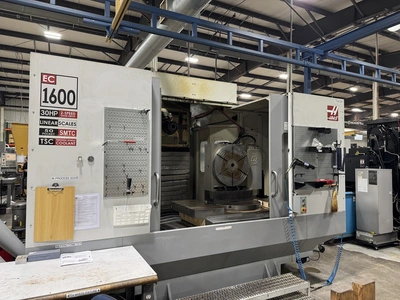

2006 HAAS EC-1600-4X

64.40.32", 6000 RPM, Cat 50, 30HP, 50 Tools, Fourth and Fifth Axis, HRT-600, CTS, Auger

Pallet Load Capacity: 10,000 lbs.
X-Axis: 64"
Y-Axis: 40"
Z-Axis: 32"
Pallet Index: .001 Degree
Spindle Speed: 6000 RPM
Spindle Taper: CAT 50
Spindle Motor: 30 HP
Tools: 50
Rapid Traverse Rates: 540 IPM
Tool Change Time (T - T / C - C): 10.3 / 12.6 Seconds
Max Tool Diameter: 4" / 10"
Max Tool Length: 20"
Max Tool Weight: 30 lbs.
Machine Dimensions (L x W x H): 173" x 143" x 119"
Machine Weight: 31,840 lbs.
Spindle Torque: 450 ft. lbs.
Table Size: 64" x 36"

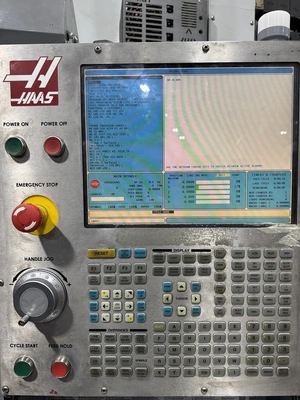

HAAS CNC CONTROL
12" TFT Color
3.5" Floppy Disc Drive
Fourth and Fifth Axis Interface

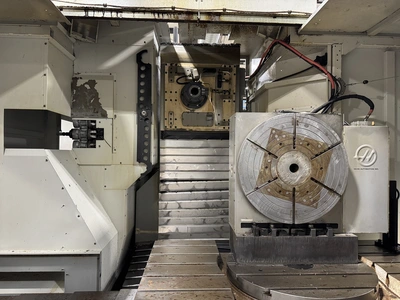

Built-In 30" Dia. Fourth Axis Rotary Platter

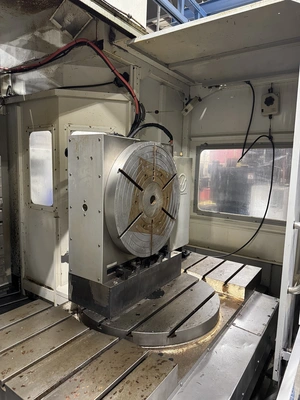

Haas HRT 600 Fourth Axis Rotary Table
Coolant Thru Spindle
Programmable Coolant Nozzle
Two Speed Gear Box
Linear Scales
Chip Auger
Green Work Indicator Light
Mfg Date November 2006
