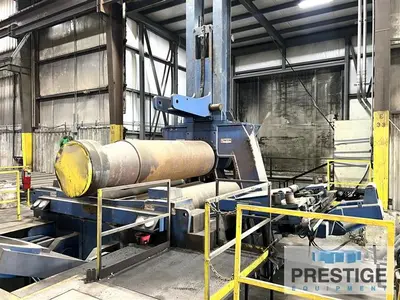

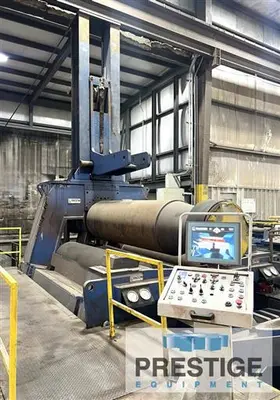

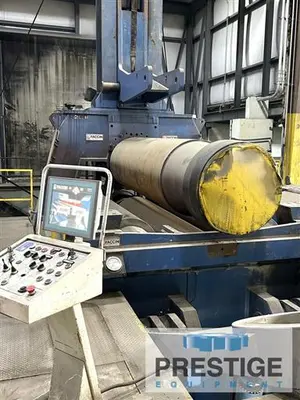

USED 2013 FACCIN 4 HELS-31105
Specs
SPECIFICATION:
Max. Plate Length: 120"
Number Of Rolls: 4
Top Roll Diameter: 41.33"
Lower Roll Diameter: 37.40"
Side Rolls Diameter: 30.70"
CAPACITY:
FULL LENGTH @ 260 N/mm2, 206" ID:
Max. Bending Thickness: 6.29"
Max. Prebend Thickness: 5.51"
FULL LENGTH @ 260 N/mm2, 53" ID:
Max. Bending Thickness: 5.51"
Max. Prebend Thickness: 5.11"
FULL LENGTH @ 360 N/mm2, 206" ID:
Max. Bending Thickness: 5.43"
Max. Prebend Thickness: 4.72"
FULL LENGTH @ 360 N/mm2, 53" ID:
Max. Bending Thickness: 4.72"
Max. Prebend Thickness: 4.40"
HALF LENGTH @ 360 N/mm2, 206" ID:
Max. Bending Thickness: 7.87"
Max. Prebend Thickness: 6.88"
Equipped With:
Faccin PGS-Classic NC Control
4-Rolls Design
Electronic Roll Balancing
Electronic Conical Bending from Mobile Console
Interchangeable 30.79" Top Roll
Hydraulic Drop End
Overhead Plate Support
Side Support
Feed Table
Features:
Faccin PGS-Classic NC Control
4-Rolls Design
Electronic Roll Balancing
Electronic Conical Bending from Mobile Console
Interchangeable 30.79" Top Roll
Hydraulic Drop End
Overhead Plate Support
Side Support
Feed Table
