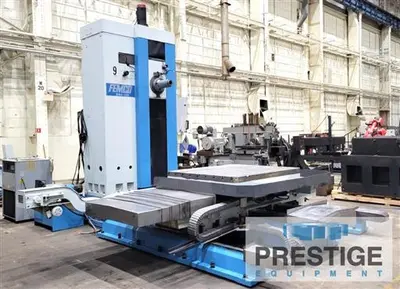

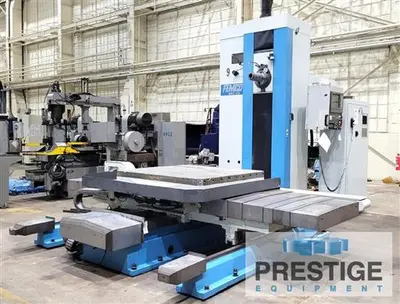

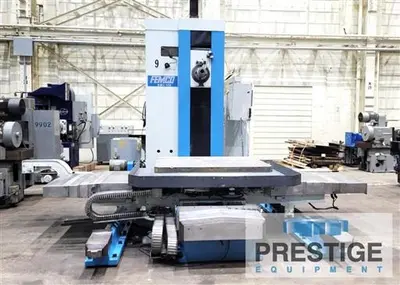

USED 1998 FEMCO MC-110P2

CAPACITY:
Spindle Diameter: 4.33"
Spindle Taper: CAT 50
Vertical Head Travel, Y-Axis: 70.87"
Table Travel, X-Axis: 78.74"
Spindle Travel, W-Axis: 19.65"
Saddle Travel, Z-Axis: 66.93"

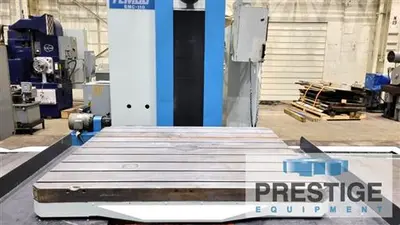

Built in Rotary Table: 56.69" x 62.99"
Table Index: 1 Degree
Table Load Capacity: 13,889 Lbs.
Rapid Traverse: X/Y/Z Axis: 394 IPM
Spindle Speeds (2 Ranges): 5-2500 RPM
Maximum Tool Weight in Tool Changer.... 55 LBS: 55 LBS
Approximate Dimensions: 258" x 216"
Approximate Height: 147"
Approximate Weight: 41,887 Lbs.

Equipped With:

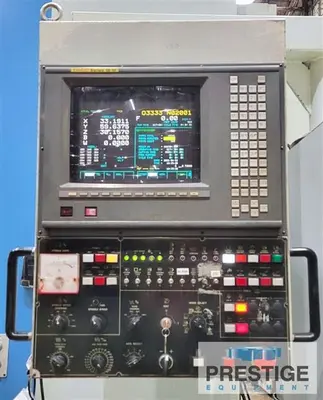

Fanuc 18-M CNC Control
Built-In Rotary Table
Hardened Bed Ways
29/35 HP Spindle Drive Motor 220/3/60
Telescoping Way Covers
Chip Conveyor

Features:
Fanuc 18-M CNC Control
Built-In Rotary Table
Hardened Bed Ways
