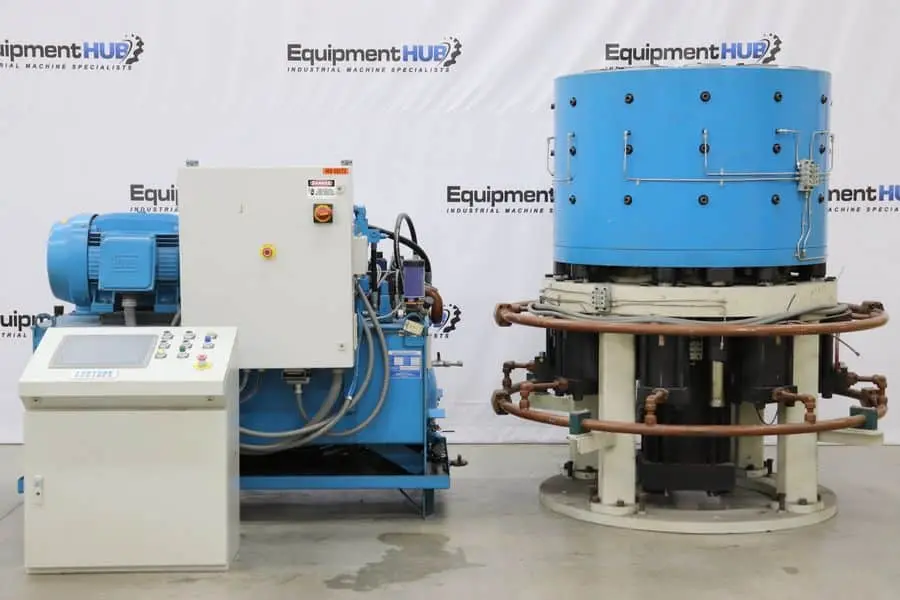

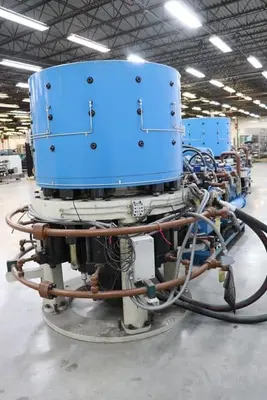

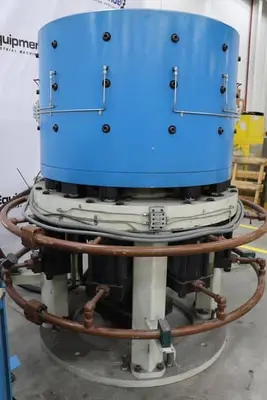

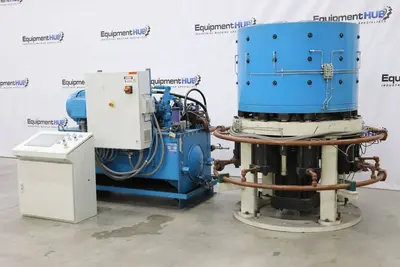

USED 2011 GROTNES 7-8-HS-450-12
Overview
Can be inspected upon request
Specs

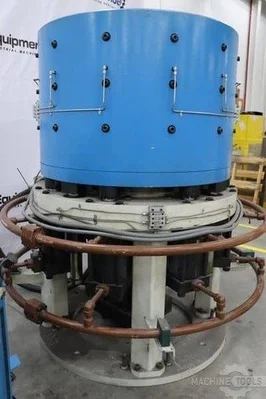

Shrinker Cylinders: 8
Expander Type: Pull
Bore: 8″ Each
Pull Area: 43.196 Square Inches Each
Return Area: 50.265 Square Inches Each

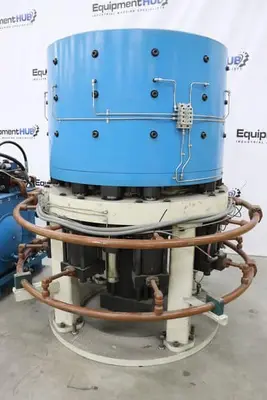

Shrinker Head Retracted Jaws Diameter: 31.875″
Nominal Jaws Shrunk Diameter: 30″
Min. Jaws Shrunk Diameter: 29.875″
Height of Jaws: 20″
Nominal Diametrical Travel: 1.875″

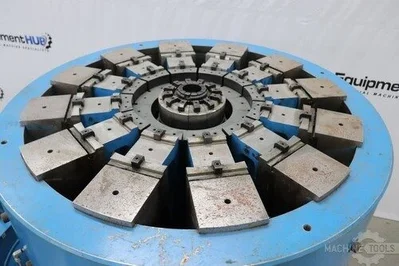

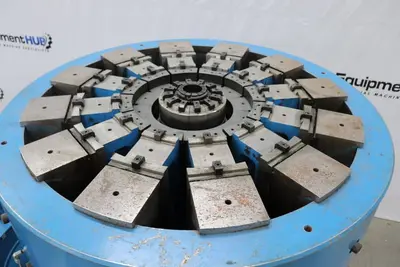

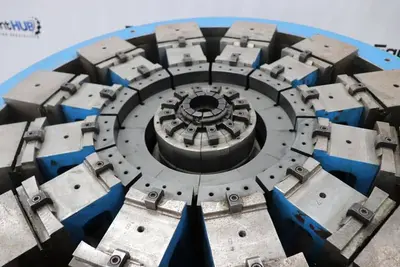

Number of Jaws: 12
Cone Angle: 8 Degrees (Tan=0.145)
Table Diameter: 38.5″

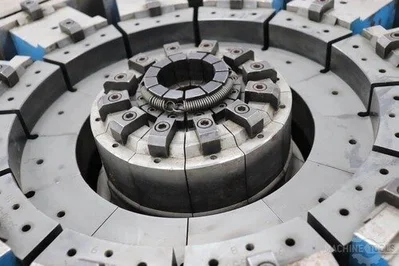

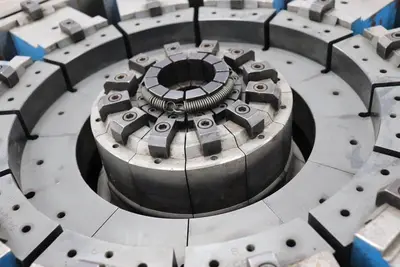

Jaw Returned By: Compression Springs
Lubrication System: Graco Centralized
Lubrication Type: Permalube Red #35
Material Yield Strength: 55,000 PSI
Maximum Cross Sectional Area in Which Tangential Stress will Be Produced: 10.580 Square Inches

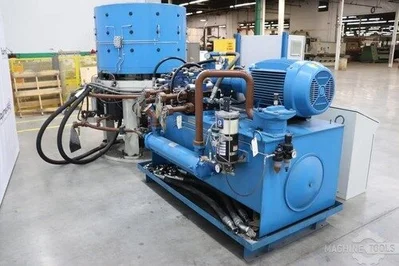

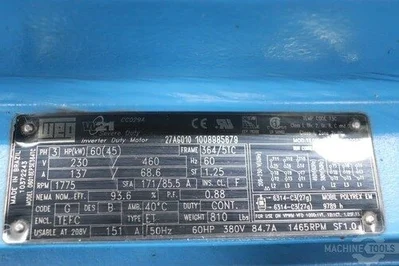

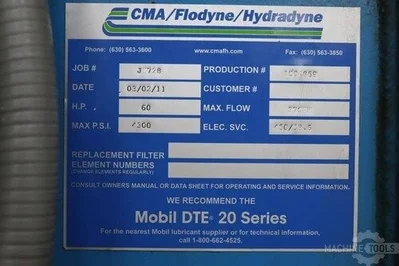

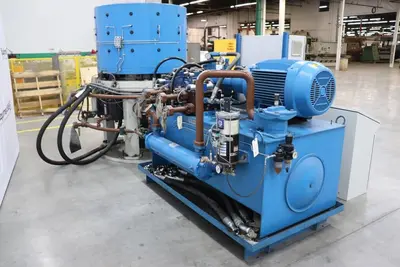

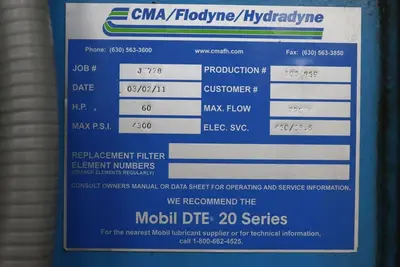

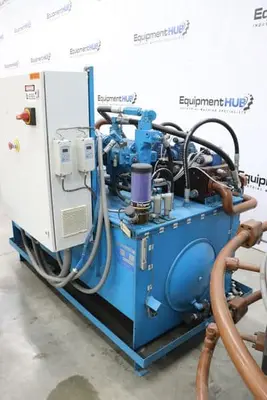

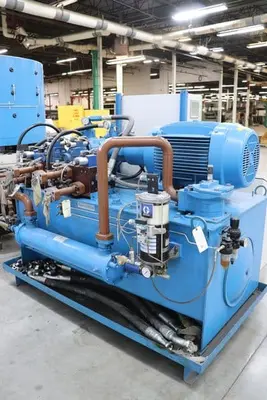

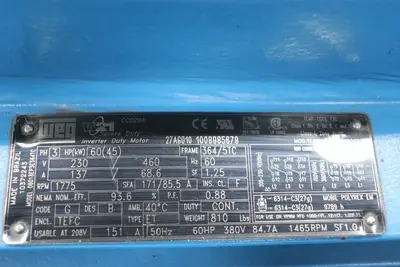

Hydraulic Power Unit: 60HP @ 1800 RPM
Max Operating Pressure: 3,600 PSI
Equipped With

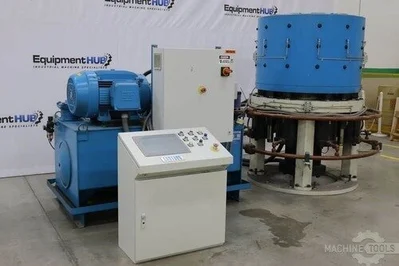

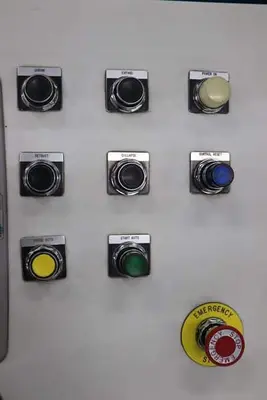

Touch Screen Pedestal Control, 200 Gallon Hydraulic Tank, Digital Copy of Manuals
