USED 2011 GROTNES 14-HE-300-12

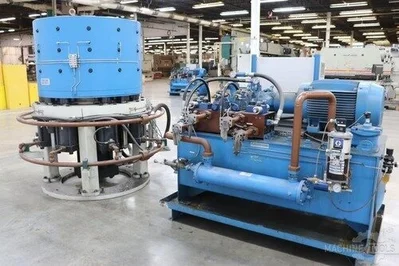

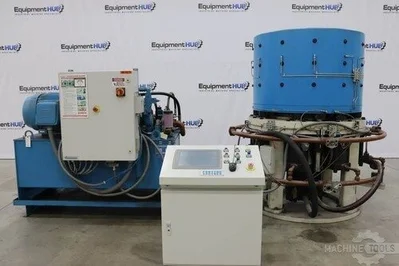

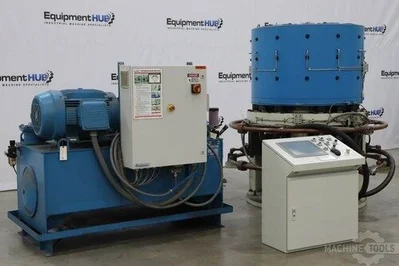

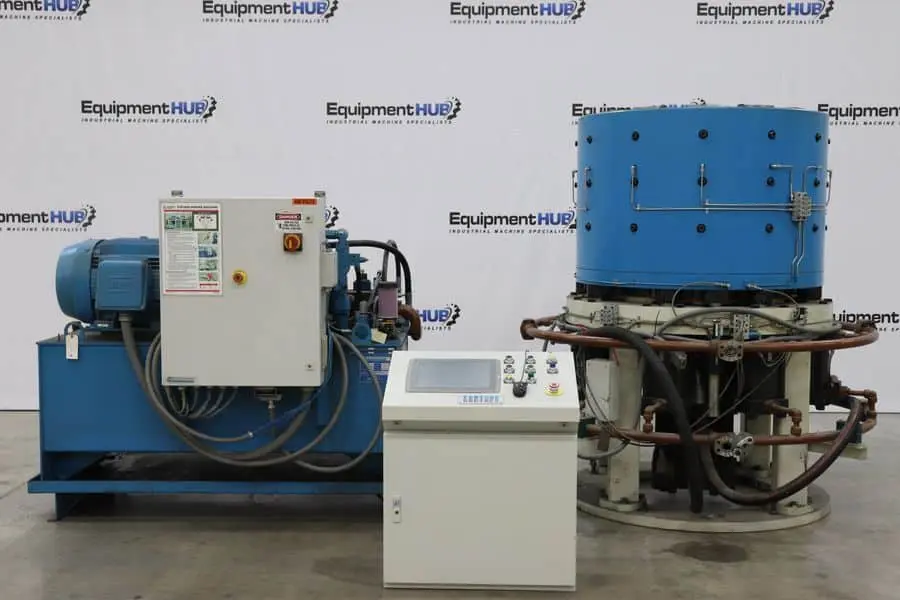

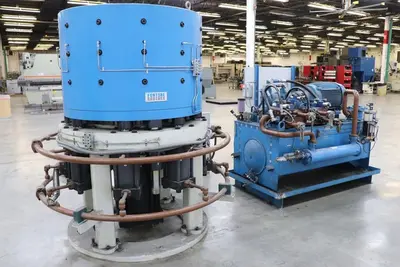

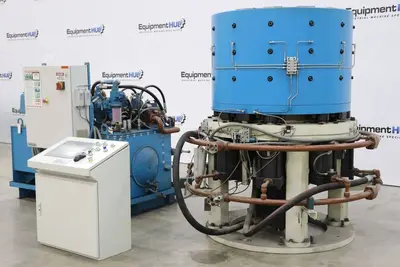

Grotnes 14-HE-300-12 30" 12 Jaw Hydraulic Ring Expander

General Info

Stock #: 120250067
Location: Decatur, GA
Brand: Grotnes
Model: 14-HE-300-12
Year: 2011
Approx. Shipping Weight: 27,000 lbs.
Approx. Shipping Dimensions: 20' L x 8' W x 7' H

Specifications

Shrinker Cylinders: 8
Expander Type: Pull
Bore: 8" Each
Pull Area: 43.196 Square Inches Each
Return Area: 50.265 Square Inches Each
Shrinker Head Retracted Jaws Diameter: 31.875"
Nominal Jaws Shrunk Diameter: 30"
Min. Jaws Shrunk Diameter: 29.875"

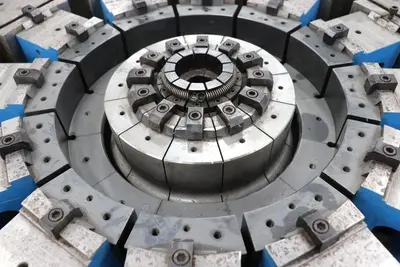

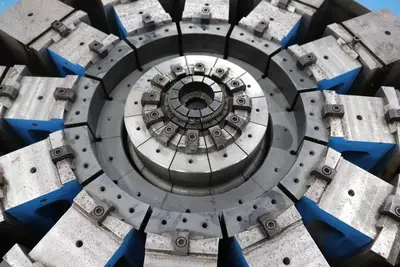

Height of Jaws: 20"
Nominal Diametrical Travel: 1.875"

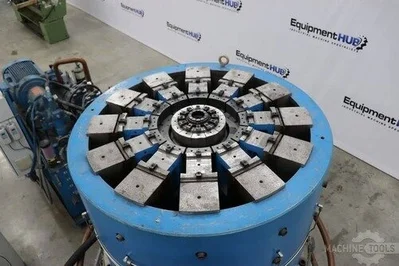

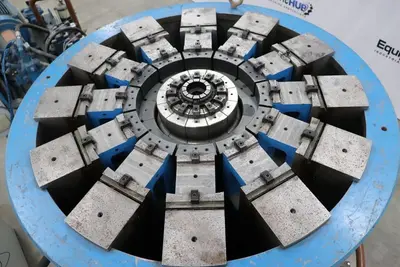

Number of Jaws: 12
Cone Angle: 8 Degrees (Tan=0.145)
Table Diameter: 38.5"
Jaw Returned By: Compression Springs
Lubrication System: Graco Centralized
Lubrication Type: Permalube Red #35
Material Yield Strength: 55,000 PSI
Maximum Cross Sectional Area in Which Tangential Stress will Be Produced: 10.580 Square Inches

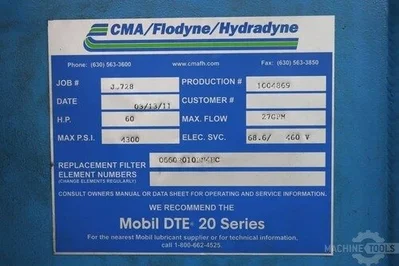

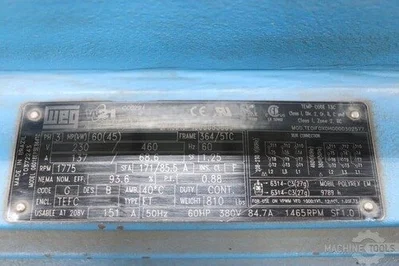

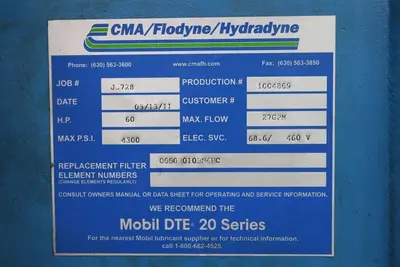

Hydraulic Power Unit: 60HP @ 1800 RPM
Max Operating Pressure: 3,600 PSI

Equipped With

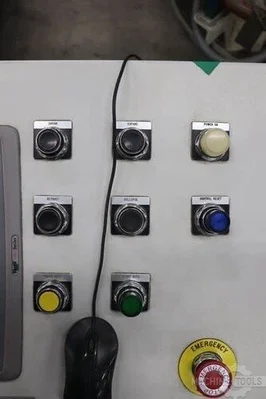

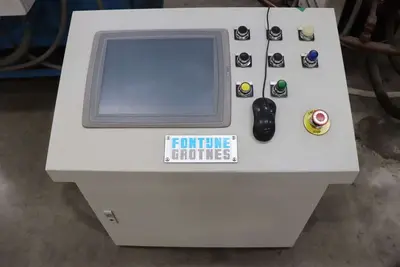

Touch Screen Pedestal Control, 200 Gallon Hydraulic Tank, Digital Copy of Manuals

Additional Info
Can be inspected upon request
