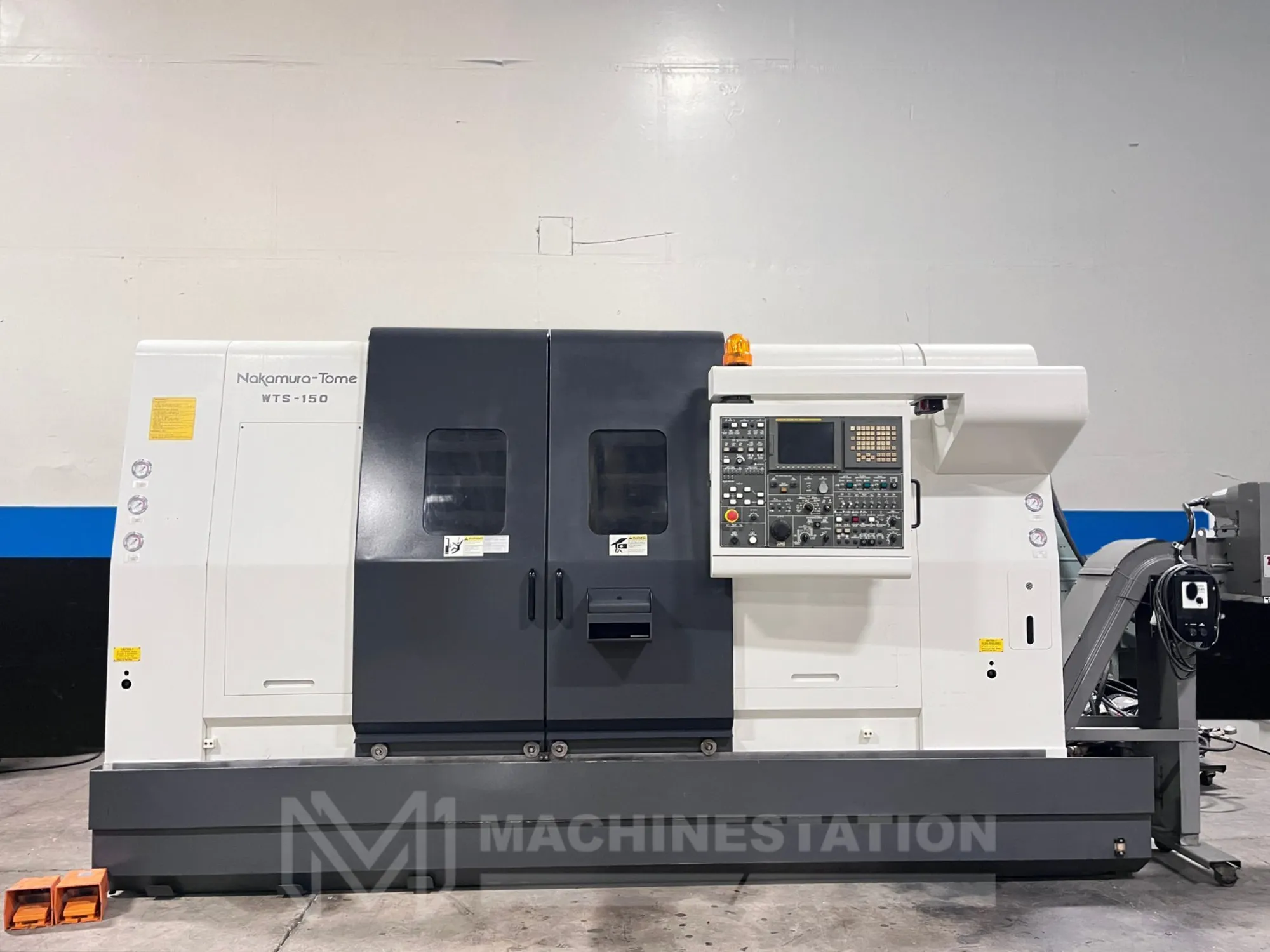

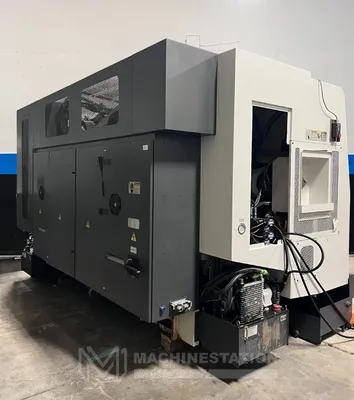

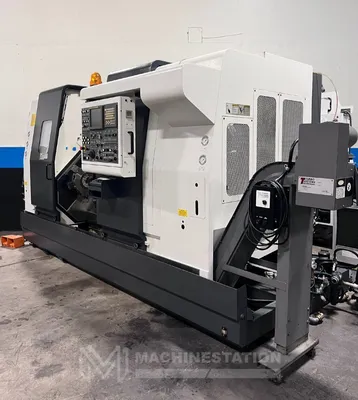

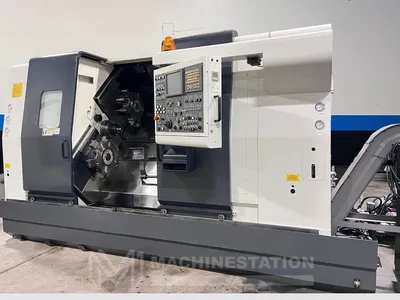

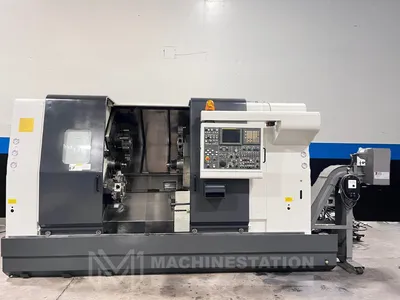

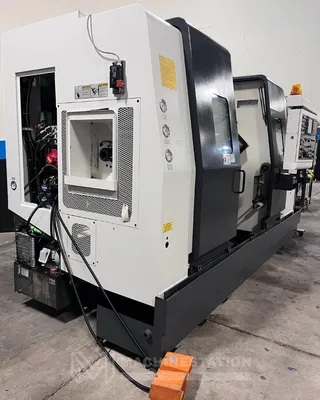

USED 2004 NAKAMURA-TOME WTS-150

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Features:

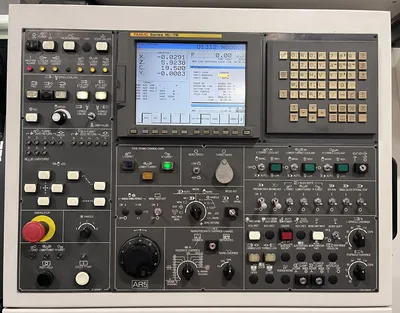

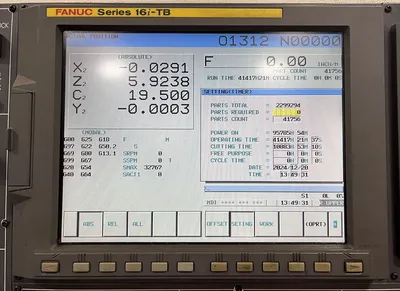

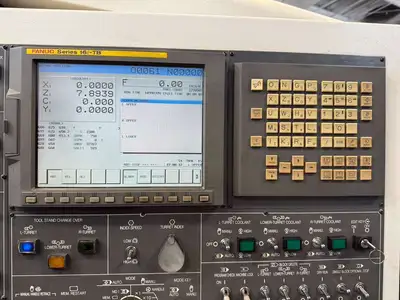

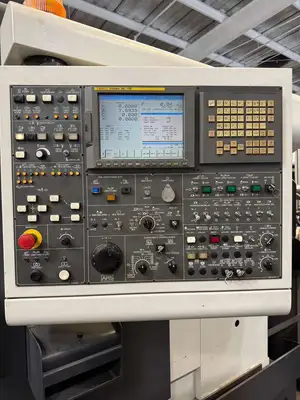

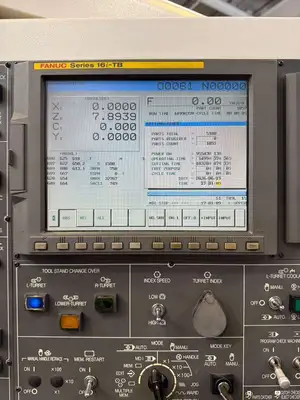

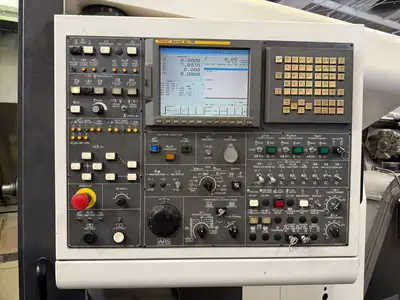

Fanuc 16i-TB CNC Control
10,883 Hours Cutting Time
(2) 12 Station Upper Turrets With Live Milling
(1) 12 Station Lower Turret With Live Milling
Y Axis Capability Upper Turrets Only

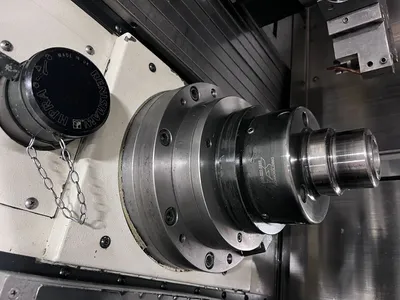

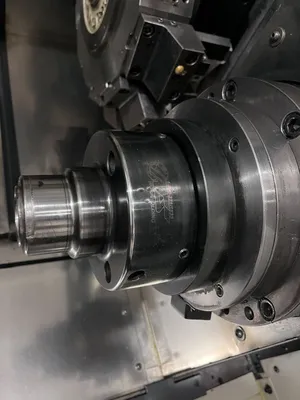

Collet Chucks on Both Spindles
Servo Controlled Full C-Axis on Both Spindles
Main Spindle & Sub Spindle
Rigid Tapping on Both Spindles
Note: YOM 2004 (Sold & Installed in 2007)

Capacity
Max Turning Diameter : 12.20″
Max Turning Length : 10.03″
Max Bar Capacity Main Spindle : 1.65″
Max Bar Capacity Sub Spindle : 1.25″
Distance Between Spindle Nose : 42″

Travel:
X Axis Travel Upper : 8.16″
Z Axis Travel Upper : 11.81″
Y Axis Travel Upper : 2.36″ (+/-1.18″)
B2 Axis Travel Upper : 34.4″
X Axis Travel Lower : 8.16″
Z Axis Travel Lower : 31.49″
C Axis: 360° (0.001°) Both Spindle

Feedrate:
X Axis: 1181 IPM Rapid Traverse
Z Axis: 1181 IPM Rapid Traverse
Y Axis: 787 IPM Rapid Traverse
B Axis: 787 IPM Rapid Traverse

Spindle:
Main Spindle Bore: ″
Sub Spindle Bore: ″
Main Spindle Nose: A2-6
Sub Spindle Nose: A2-6
Main Spindle Speed: 6000 RPM
Sub Spindle Speed: 8000 RPM
Main Spindle Power: 20 HP
Sub Spindle Power: 20 HP

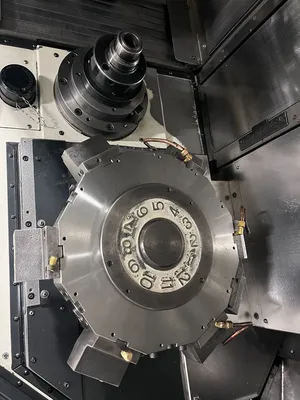

Turret:
(2) Upper Turret Capacity: 12 Stations
(1) Lower Turret Capacity: 12 Stations
Live Tool Speed: 6000 RPM
Live Tool Power: 5 HP
Tool Holders Type: BMT & VDI

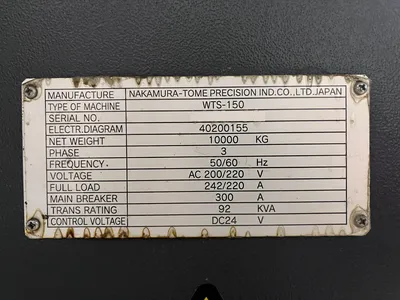

General:
Power Source: AC 220v / 3-Phase / 60 Hz
Power Requirement: 92 kva
Overall Dimensions: 152″ x 92″ x 92″ High
Weight: 22,000 lbs Approx.

(3) Live Tool Turrets
C & Y Axis
Sub Spindle
Foot Operated Control for Chuck

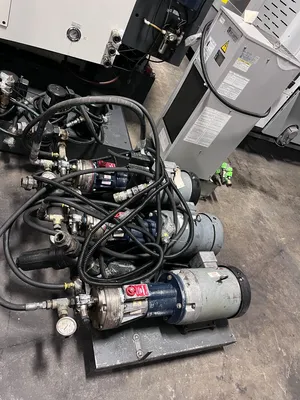

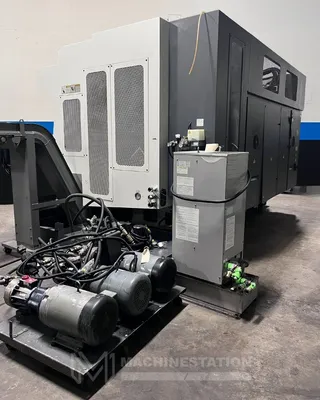

High Pressure Coolant System

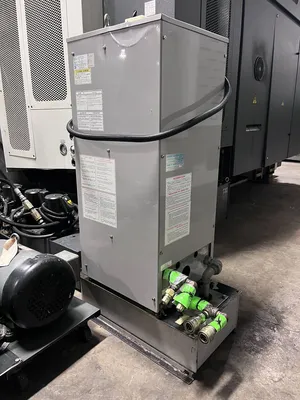

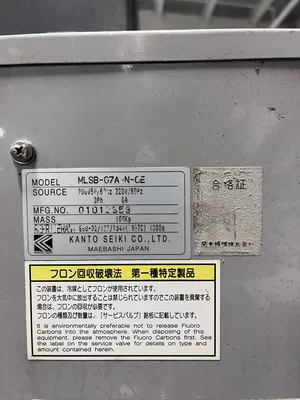

Chiller Unit
Tool Presetter
Part Catcher
Chip Conveyor
Levelling Pads

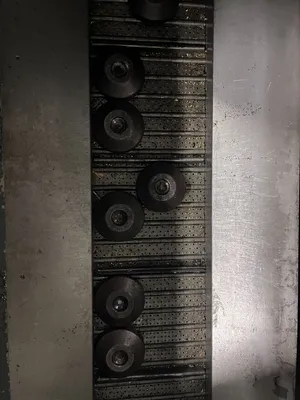

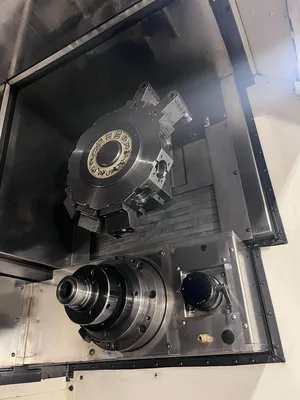

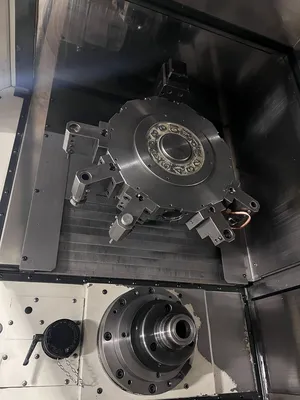

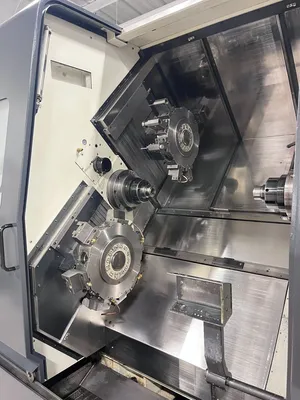

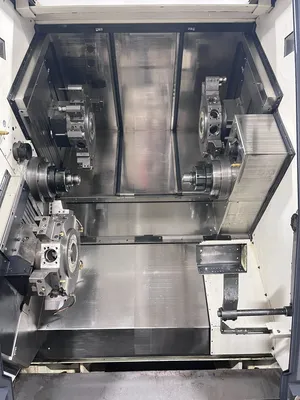

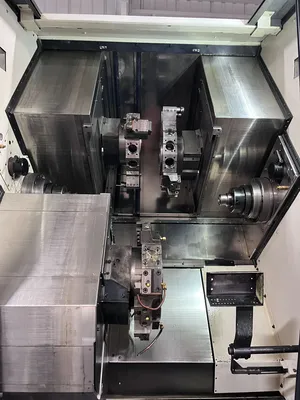

Tool Holders Equipped on Turrets (As shown in the images)
