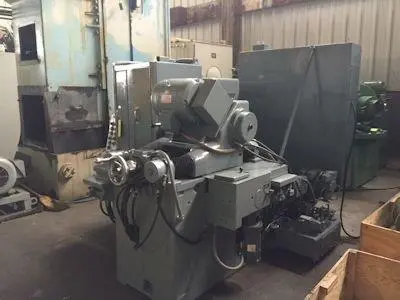

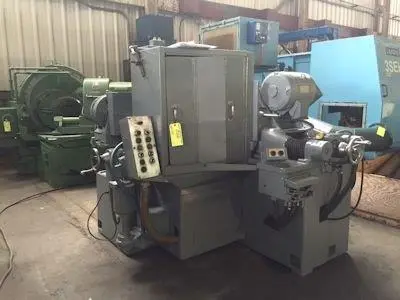

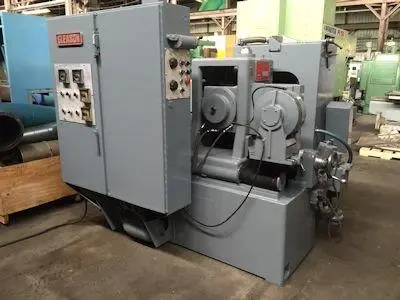

The No, 516 Hypoid Lapper is designed primarily for lapping automotive and truck spiral bevel and hypoid gears and pinions operating at a 90" shaft angle with gear diameters up to 24" (609.6 mm).
The No. 516 Hypoid tapper affords fast lapping times, high quality, accurate control and great flexibility, Most important is Swing Pinion Cone (SPC} lapping action which, combined with the conventional pinion horizontal and backlash motions, permits fast accurate lap• ping of the tooth surface.
This SPC tapping method produces pinions and gears precisely mated to operate in automotive and truck drive axles under the ever changing high way driving conditions with maximum smoothness and quietness.
| Maximum Workpiece Diameter | 24" | 609.6 mm |
| Maximum Pinion Outside Diameter | 12" | 304.8 mm |
| Dimensions | 80" x 90" x 72" | 80" x 90" x 72" |
| Weight | 11,200# | 11,200# |
EQUIPPED WITH:
Hydraulic Chucking
Gear Cone Motion
Manual/Auto Cycle
Forward/Reverse Cycles
Lube System
Hydraulic Unit
Lapping Compound Tank
Mixing Motor
Guards
SPECIFICATIONS:
Capacity:
Diameter of Gear (Max): 24"
Diameter of Pinion (Max): 12"
Offset of Gear Spindle Above or Below Center of Pinion Spindle:
(Max.): 6"
Drive Spindle:
Speed: 1200 RPM
Diameter of Taper at Large End: 3-29/32"
Taper Per Foot: 39/64"
Depth of Taper: 3"
Brake Spindle:
Diameter of Taper at Large End: 2-19/64"
Taper Per Foot: 1/2"
Depth Of Taper: 3"
Main Motor, Standard: 5 HP, 1800 RPM
Hydraulic Pump Motor: 1 HP, 1800 RPM
Floor Space: 80" x 90"
Height: 72"
Net Weight, Approximate: 11,200 lbs
Hydraulic Chucking
Gear Cone Motion
Manual/Auto Cycle
Forward/Reverse Cycles
Lube System
Hydraulic Unit
Lapping Compound Tank
Mixing Motor
Guards
