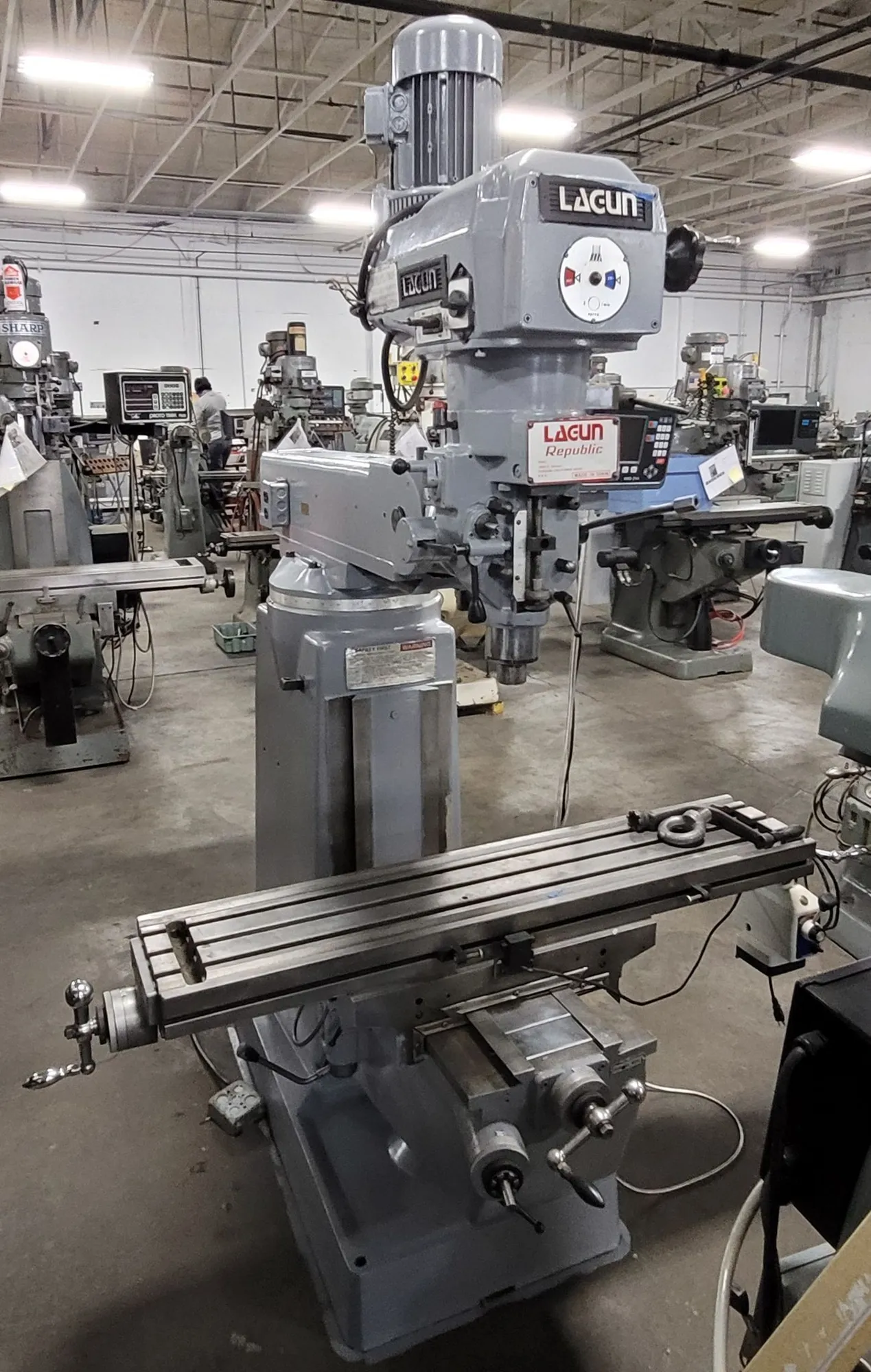

USED LAGUN REPUBLIC FTV-2

Lagun/Republic #FTV-2 Vertical Mill
X Axis Power Feed
New DRO
S/N SE-39490
Variable Speed
10″ x 50″ power feed table
One Shot Lube
Internal Coolant System
50″ x 10″ T-slotted table,
3HP,
Table size- 55.25” x 10” (1,403 x 254 mm)
T-slots- 3 on 2.51” centers (3 on 64 mm)
T-slot size- 0.63” (16 mm)
Maximum weight on table- 750 lbs. (340 kg) evenly distributed
Travels
Table travel X-axis, manual/ with power feed- 37.99” / 34.64” (965 / 880 mm)
Cross travel, Y axis- 15.98” (406 mm)
Knee travel, Z axis- 15.98” (406 mm)
Ram travel- 22.44” (570 mm)
Head- Electron
Main motor- 3 HP
Mechanical infinite variable speed with (High-Low) manual settings
55 to 4,250 RPM. Low (55 to 490 RPM) High (490 to 4,250 RPM).
Head swivel (Left to right)- +/- 90°
Head tilt (Front to back)- +/- 45°
Distance, spindle to column-5 to 26.96” (127 to 685 mm)
Distance, spindle to table-0 to 17.99” (0 to 457 mm)
Quill
Power quill feeds-.0015, .00314, .00511 in./rev (0.04;0.08; 0.13mm/rev)
Spindle taper-R-8
Quill diameter-3.38” (86 mm)
Quill travel-5” (127 mm)
