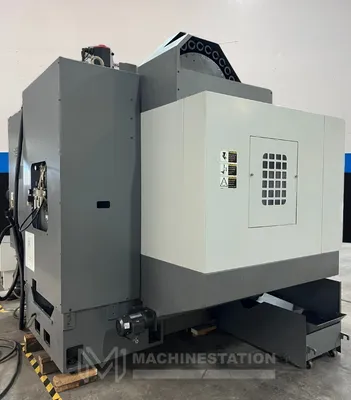

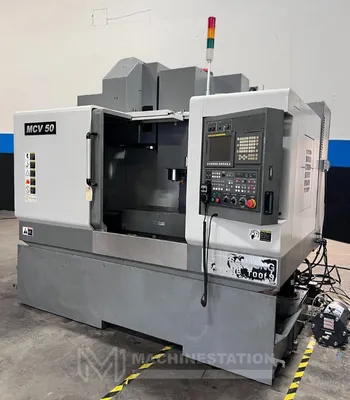

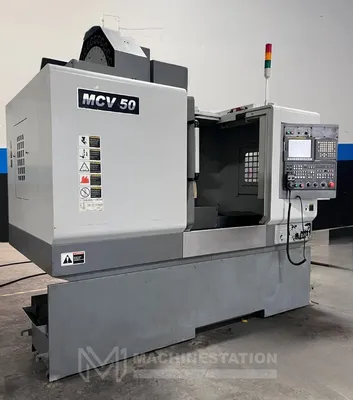

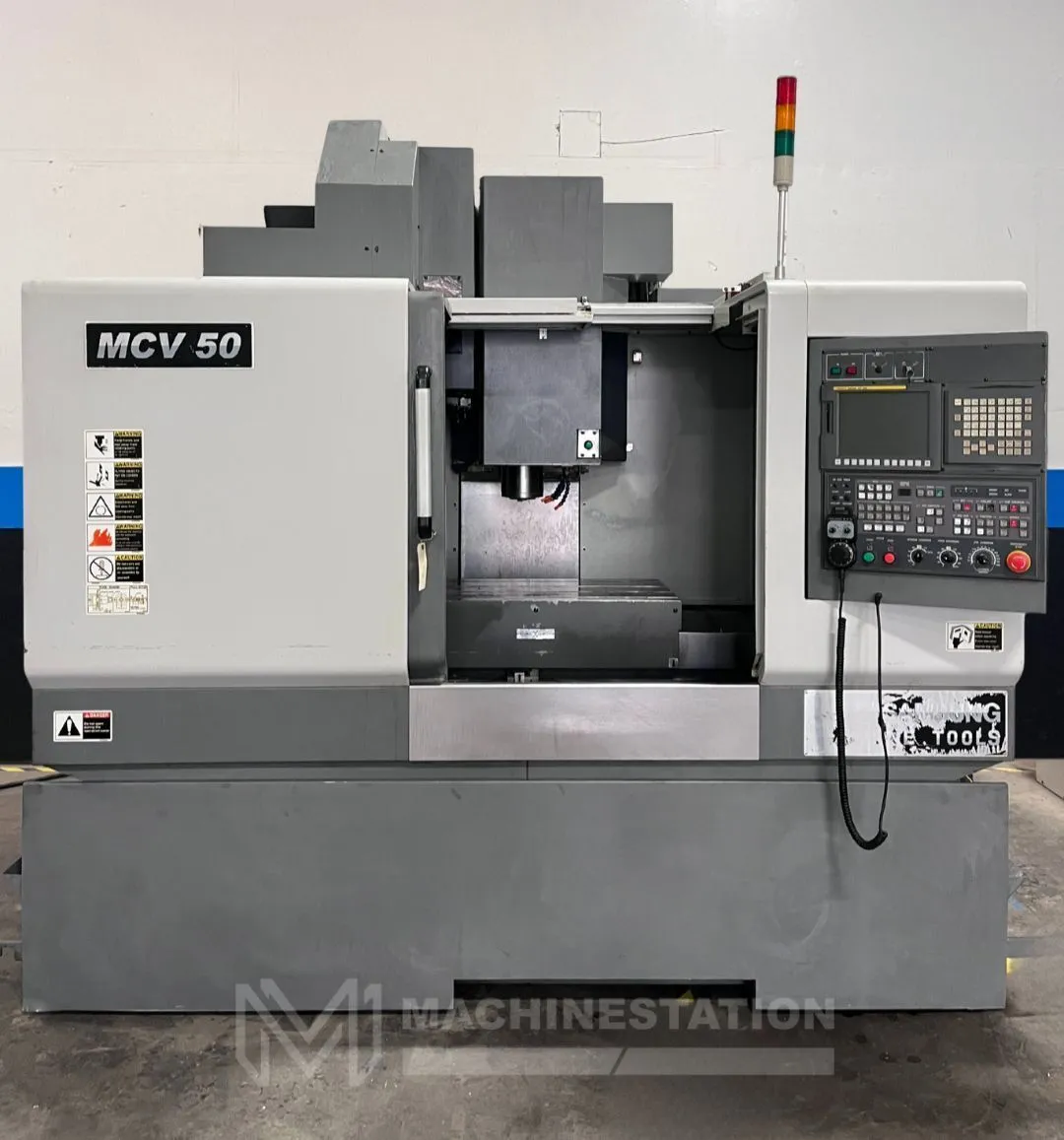

USED 2010 SAMSUNG MCV-50

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Key Features of the Samsung MCV 50:

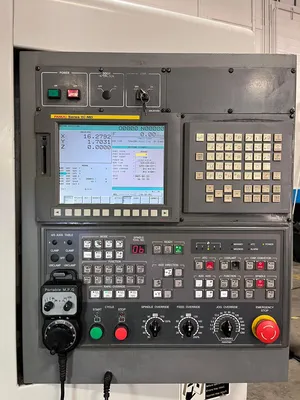

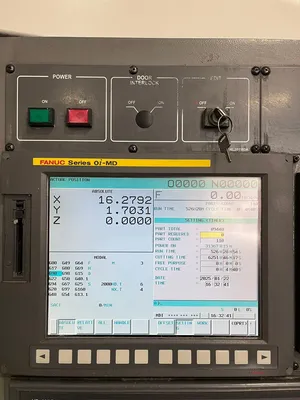

Fanuc Oi-MD CNC Control
6,251 Hours Cutting Time

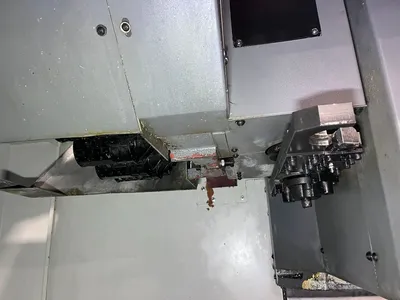

30 Station High-Speed Tool Changer
20 HP High Torque Spindle
1417 IPM Fast Rapid Traverse
Rigid Tapping
Spindle Orientation

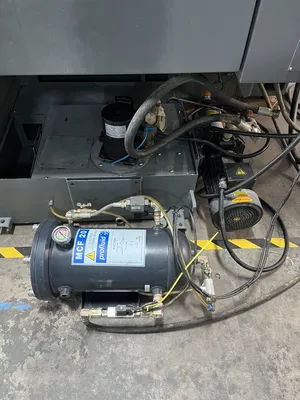

Coolant System

Travel:
X-Axis: 35.43″
Y-Axis: 19.69″
Z-Axis: 20.08″
Rapid Traverse Rates X & Y Axis: 1417 Inch Per Minute
Rapid Traverse Rates Z Axis: 1181 Inch Per Minute
Spindle Nose to Table (Min.- Max.): 5.11″ – 25.19″

Table:
Length: 36.22″
Width: 19.69″
Number of Std T-Slots: 4
T-Slot Width: 5/8″
Max Weight on Table: 1322 lbs

Spindle:
Taper Size: CAT-40
Speed Range: 12,000 RPM
Spindle Power: 20 HP

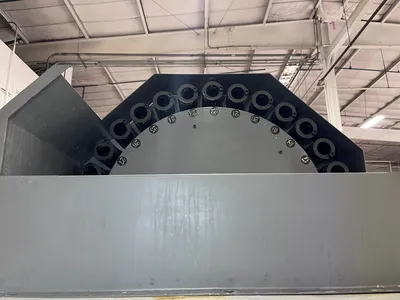

Automatic Tool Changer:
Capacity: 30 Tools
Max Tool Weight: 12 lbs
Max Tool Dia: 2.5″ – 5.0″
Max Tool Length: 11″
Tool Changing Time: Seconds

General:
Air Required: 80 psi 4 scfm
Power: 220v / 66FLA / 3-Phase
Overall Dimensions: 102″ x 87″ x 100″ High Approx.
Weight: 13,800 lbs Approx.

12,000 RPM High-Speed Spindle
Through Spindle Coolant - 290 psi
MPG Handwheel Control
Books & Manuals
