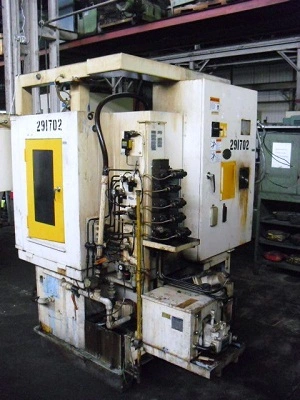

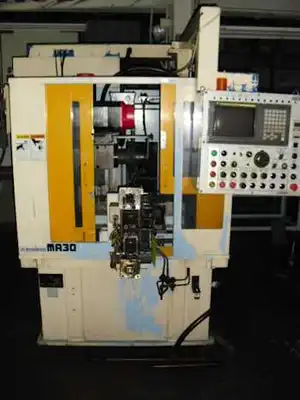

USED 1999 MITSUBISHI MA30CNC
Overview
Specs
Specifications:
Max. Part Diameter: 11"
Diametral Pitch: 0.5-16.9
Max. Face Width: 2.36"
Max. Diameter Frasing Cutting: 9.84"
Travel Stroke: 7.87"
Center Distance Between Frasing Cutter & Part Arbor: 4.33"Min./12.2"Max.
Rotational Speed: 1-150 rpm
Max. Deburring Cutter Stroke Diameter: 6.3"
Max. Stroke: 5.1"
Center Distance Between Deburring Cutter and Part Arbor Axes: 5.1"
Upward/Downward Distance Between Deburring & Arbor Axes: Up 0mm, Dwn 40mm
Travel Distance Per Pitch: 0.4", Max. 4 Pitches
Travel Distance From Opening to Closing: Left 0.4", Right 2.36"
Base Stock: 3.9"
Follow Stock: 3.9"
Frasing Cutter Drive: 400W, w/ 1/15 Reduction Gear
Hydraulic Pump: 1.5kW, 4 Phases
Installation Area: 4'2" x 7'4"
Approx. Weight: 5,511 lbs
Equipped With

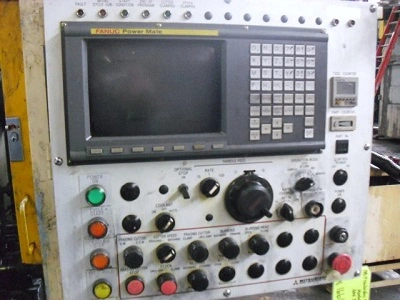

Fanuc Control
Magnetic Chip Conveyor
Coolant System with Pump & Piping
Transformer
Power Lube
Auto Feed
Full Enclosure
