| Maximum Workpiece Diameter | 10" | 254 mm |
| Maximum Internal Gear Diameter | 10" | 254 mm |
| Diametral Pitch | 45" | 1,143 mm |
| Control Manufacturer | Fanuc | Fanuc |
| Control | CNC (FANUC) | CNC (FANUC) |
| Dimensions | 94" x 80" x 105" | 94" x 80" x 105" |
| Weight | 11,000# | 11,000# |
Specifications:
Max. Pitch Diameter (External): 10"
Max. Pitch Diameter (Internal): 10"
Max. Diametral Pitch (Spur): 4
Max. Diametral Pitch (Helical): 5
Max. Face Width 10-2: 2"
Max. Helix Angle (Using 5" Cutter): 45 Degrees
Max. Overall Length: 118-7/8"
Max. Overall Height (Zero Raise): 96-1/2
Max. Overall Depth: 53"
Net Weight With Motors: 11,000 lbs
Approx. Dimensions: 94"L x 80"W x 105"H
Fanuc Control
Elevating Attachment on Work Spindle
Spur Guide
3" Riser
Vari-Speed Motor Drive

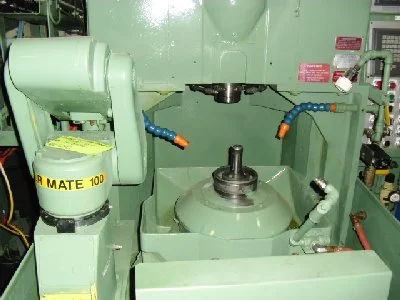

LR Mate 100 Robot W/Independent Control
7.5/1.75 HP Motor
Worklight
