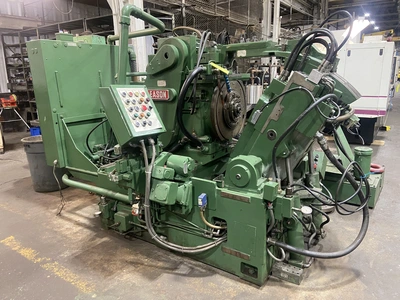

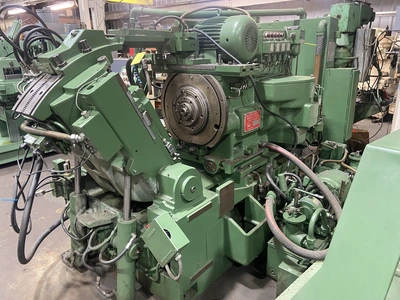

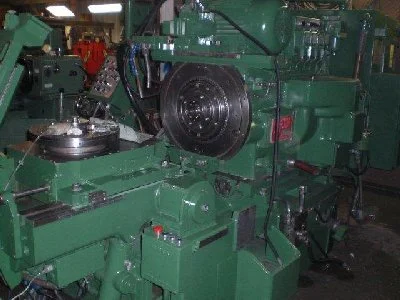

MODEL 610 GLEASON GEAR ROUGHER/FINISHER
| Maximum Diameter Gear | 20" | 508 mm |
| Maximum Face Width | 3" | 76.2 mm |
| Extreme Ratio | 10:1 | 10:1 |
| Dimensions | 118" x 86.5" x 70" | 118" x 86.5" x 70" |
| Weight | 17,500 | 17,500 |
Specifications:
Maximum Gear Pitch Diameter: 20"
Cutter Diameters: 9", 10.5", 12",14",16", 18"
Whole Depth: 1.250"
Root Angle: 60 to 80 deg.
Face Width: 3.0"
Extreme Ratio (Minimum): 2.25 to 1
Number of Teeth: 20 to 75
Diameter of Taper Hole at Large End: 3-27/64"
Cutter Speeds (Per Minute) for Roughing: 15.6' to 87.7'
Feeds (Seconds Per Tooth) for Roughing: 3 to 35
Cutter speeds (Per Minute) for Finishing: 6.8' to 20.5'
Feeds (Seconds Per Tooth) for Finishing: 3 to 9
Floor Space: 118" x 86.5" x 70" H
Weight: 17,500 lbs
Hydraulic Workholding

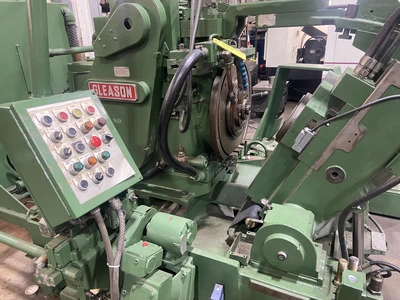

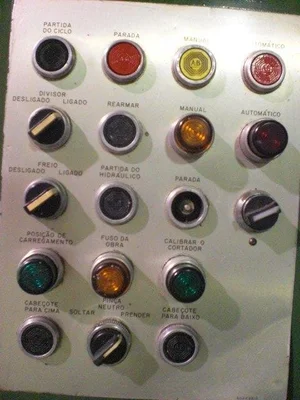

Pendant Control
Chip Conveyor
Index Plate
Geneva Cam
Change Gears

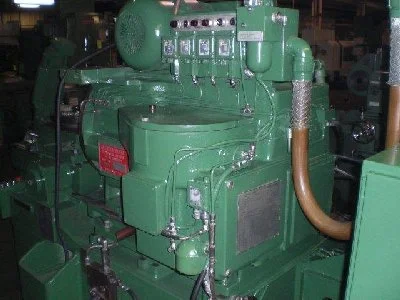

Hydraulic System
Coolant System
Manuals
