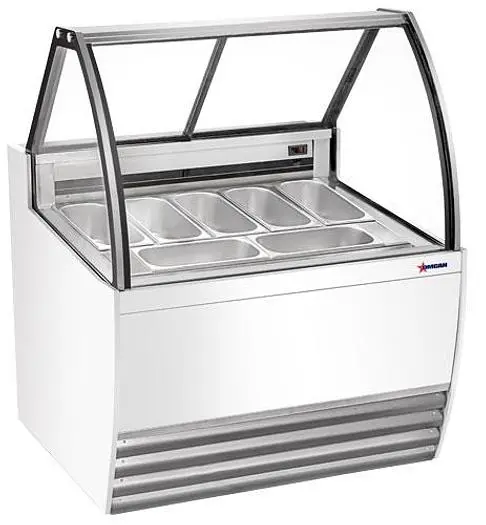

41″ Gelato Display Showcase (White Exterior) with 7 Pans

• White Exterior
• Internal LED on top
• Digital controller
• Dual LED temp. displays inside and at back
• Sliding doors at back
• Front curved glass
• 4 casters, 2 with brakes
• Ventilating cooling system
• Automatic defrost

Technical
ITEM: 47571
MODEL: FR-CN-0007W
ELECTRICAL: 110v – 120v / 60hz
CURRENT: 11.8A
POWER: 1300W
TEMPERATURE RANGE: -12 to -22°C / 10.4 to -7.6°F
MAX AMBIENT TEMP RATING: 23.9°C / 75°F
REFRIGERANT: R290 (140g)
COOLING SYSTEM: Ventilated
CLIMATE CLASS: 4
TEMPERATURE CONTROLLER: Digital Control
TEMPERATURE DISPLAY: LED Display
TYPE OF LIGHT: LED
DEFROST: Auto-defrost with heating element
TRAY HEATER: No
DOOR TYPE: Sliding doors at back
SELF-CLOSING DOOR: No
PAN QUANTITY: 7 x 5L (Ice Cream Pan) 1 Scoop Pan
ICE CREAM PAN DIMENSIONS: 14.2” x 6.5” x 4.5” / 360 x 165 x 115mm
SCOOP PAN DIMENSIONS: 6.5” x 7.6” x 2.4” / 165 x 149 x 60mm
ADJUSTABLE SHELF HEIGHT: No
UNIT DIMENSIONS: 41.3” x 33.5” x 51.2” / 1050 x 850 x 1300mm
PACKAGING DIMENSIONS: 44.5” x 37.8” x 57.5” / 1130 x 960 x 1460mm
UNIT WEIGHT: 306.4 lbs. / 139 kgs.
PACKAGING WEIGHT: 423.3 lbs. / 192 kgs.

 Spec Sheet
 Instruction Manual
 Parts Breakdown
 Technical Drawings
