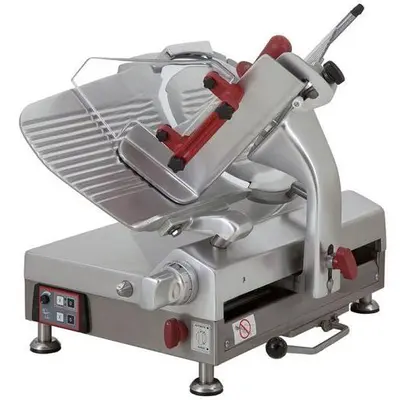

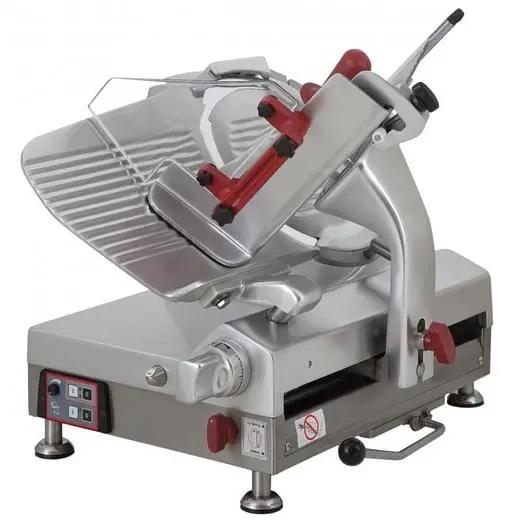

13-inch Blade Gear-Driven Automatic Slicer - SEE VIDEO

Adjustable carriage stroke and consequent n of cuts
GEAR driven transmission
Two separate motors – one for the blade – one for the carriage
Removable parts for cleaning: blade cover, product-holder plate, aluminum meat grip, stainless steel slice deflector
Fast – no tools removable meat grip
Blade with a narrow band of chromium-plated hardened steel
45 inclined blade

Rotatable and removable sharpener
Dual action sharpener
Fixed ring guard
Interlock on gauge plate on zero position
Large product–holder plate
Readily removable transparent Plexiglas Protection on the product–holder plate
New design with large spaces
Fence included
Shipped on Pallet

Description
This gravity feed slicer has an automatic sliding carriage and two independent high-performance fan-cooled motors: one for the carriage and one for the blade. The gears are constantly bathed in oil. The polished anodized aluminum body, along with its high carbon, hard chromed blade, provides long life and durability. It is easy to disassemble and clean.

Technical
Blade Size: 13” (330 mm)
Cut Thickness: 0 – 0.55” (0 – 14 mm)
Cheese Slicing*: High
Slicing Volume**: 8 Hours or more
Slicing Capacity: 10.2” x 6.7” (260 x 170 mm) | 9.25” (235 mm)

RPM: 240
Power: 450 W / 0.6 hp
Electrical: 120V / 60Hz / 1Ph

Net Weight: 130 lb. (59 kg.)
Net Dimensions (WDH): 22.4” x 25.6” x 24.4” (568 x 650 x 620 mm)
Gross Weight: 163 lb. (74 kg.)
Gross Dimensions (WDH): 36.2” x 33.8” x 32.7” (919 x 858 x 830 mm)

Cheese Slicing Rating: 0/4 – Not Recommended, 1/4 – Occasional, 2/4 – Low, 3/4 – Medium, 4/4 – High
