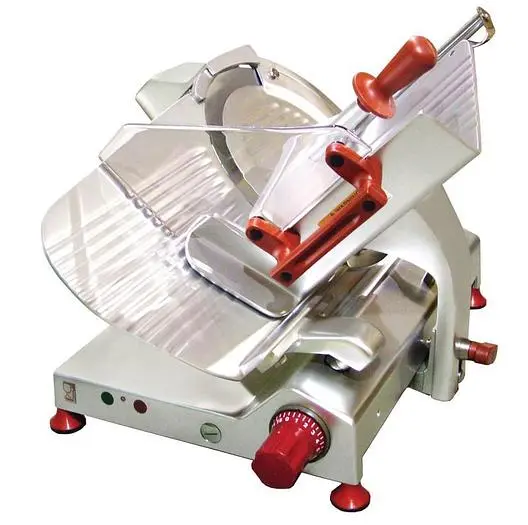

13-inch Gear-Driven Slicer with 0.47 HP Motor
Overview
Description
GEAR driven transmission.
ON/OFF one switch with LED.
Removable parts for cleaning, such as blade cover, product-holder plate, aluminum meat grip, and stainless steel slice deflector.
Blade with NARROW BAND of chromium–plated hardened steel.
Turning aside and REMOVABLE sharpener.
Big size product – holder plate.
Transparent Plexiglas Protection at the product–holder plate.
High reliability of all elements.
New design with large spaces.
Safety devices according to EN1974 standards.
Shipped on Pallet
Technical
Blade Size: 13” (330 mm)
Cut Size: 8.85” x 8.66” (225 x 220 mm)
Cut Thickness: 0 – 0.55” (0 – 14 mm)
Cheese Slicing*: High
Slicing Volume**: 8 Hours or more
Slicing Capacity: 10.6” x 6.7” (269 x 170 mm) | 9.45” (240 mm)
RPM: 240
Power: 350 W / 0.47 hp
Electrical: 120V / 60Hz / 1Ph
Net Weight: 94.8 lb. (43 kg.)
Net Dimensions (WDH) 29.7” x 26.4” x 20.86” (754 x 670 x 530 mm)
Gross Weight 110 lb. (50 kg.)
Gross Dimensions (WDH) 28” x 32.7” x 26.7” (711 x 831 x 678 mm)
Cheese Slicing Rating: 0/4 – Not Recommended, 1/4 – Occasional, 2/4 – Low, 3/4 – Medium, 4/4 – High
