FEATURES:
• Stainless steel filling tray
• Knives and plates made of carbon steel
• Overheating protection
• Rugged gearbox made of steel, with oil bath
• Use of durable materials results in a long-lasting machine
• Extremely energy and production efficient
• Quiet and generates less heat
Description
Robust and durable

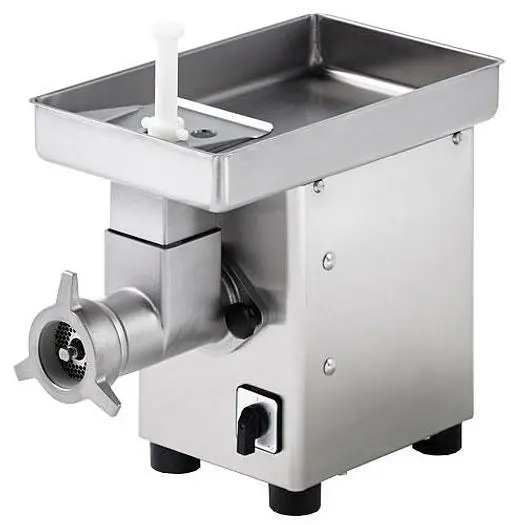

This powerful table model meat grinder includes a large stainless steel filling tray, #22 knife and plate, removable head, feed screw and ring. It features an extraordinarily robust motor-gear unit, 1 set of single cutting systems and safety switch to ensure efficient operations and the best cutting results at any time.
Large filling tray with hand protection
• Completely made of stainless steel
High-quality knives & plates
• Knives and plates made of special carbon steel of the highest strength and durability.
• This material is characterized by significantly lower wear and tear, which prolongs the service life of the knives and plates and prevents contamination of the meat by abrasion of metal particles as with soft stainless steel alloys.
Extraordinarily robust motor-gear unit
• High performance and energy efficiency, quieter and less heat generation
• Overheating protection
• Rugged gearbox made of steel, with oil bath
• Automatic safety switch
Technical
Tray Capacity: 10.6 Qt. (10 L)
Diameter of Mincer Plate: 3.26 mm
Cutting System: Single Cut
Single Cutting System: (2) Plates, hole dia. 0.17” & 0.3” (4.5 & 7.8 mm) (1) Cutting knife
Operating Temperature: 40° – 100° F (5° – 40° C)
Operating Relative Humidity: 20 – 99%
Output Per Hour: 771 lb. (350 kg.)
Power: 1100 W / 1.5 hp
Electrical: 208V / 60Hz / 3Ph
Amps: 4.3 A
Noise Level at 1m: 60 dB(A)
Net Weight: 110 lb. (50 kg.)
Net Dimensions (WDH): 23.7” x 12.2” x 18.2” (600 x 310 x 460 mm)
Gross Dimensions (WDH): 28” x 14” x 20” (711 x 356 x 508 mm)
