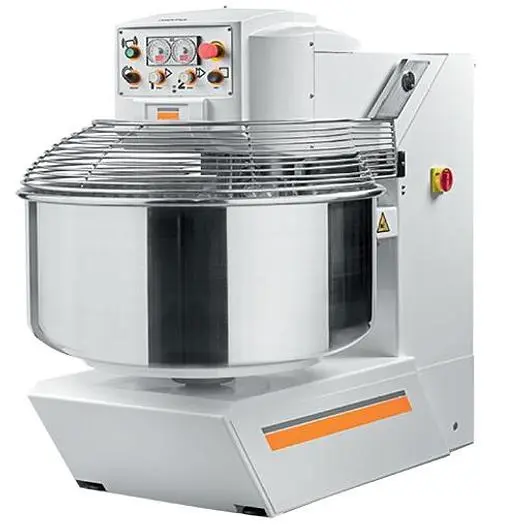

164 QT Heavy-duty Spiral Dough Mixer, 2 Speeds – 2.4kW – 4.5 kW, 208 V, 3 Phase

Description
Heavy-duty spiral mixers make preparing of dough possible with ease and efficiency.

This heavy-duty spiral machine with fixed stainless steel basins includes a rear basin guard. It is equipped with two kneading speeds, two timers to program the working cycle, two fixed wheels, and adjustable feet for easy positioning.

FEATURES:

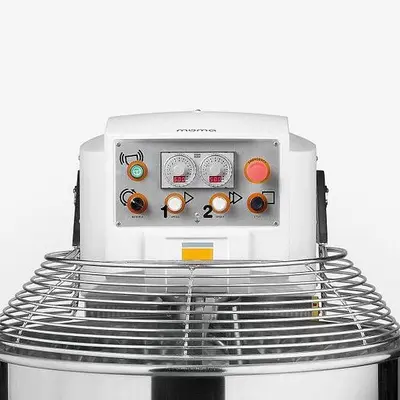

• Intuitive Interface
You can access all functions with a few simple actions: two work speeds, two times, and an automatic cycle.

• Bowl & Spiral
Both are made from high-resistance stainless steel. The design, dimensions, and sizing have all been carefully devised to ensure a peerless finished product.

• Stunning Dough
Designed to help you create a dough with perfect, handmade consistency. The Plus version has a reinforced spiral drive mechanism specially designed for dryer dough mixes.

• Highly Safe
The protective grill in stainless steel is ergonomically designed and completely safe. When opened the machine automatically stops working.

• Solid Stability
The feet give the machine great stability, while the wheels mean that the machine can be moved easily to clean the workspace.

• User-friendly At All Times
A special button means you can respond to emergencies quickly, following the regulations out there.

Technical
Bowl Capacity: 164 QT
Max Dry Flour Capacity: 138 lb. (63 kg.)
Max Dough Capacity: 220 lb. (100 kg.)
Timer: 2
RPM: 2
Wattage: Spiral: 2,400 W / 4,400 W | Bowl: 5,600 W
Power: Spiral: 2,400 – 4,500 W | Bowl: 560 W
Amps: Spiral: 8.3 A – 15.26 A | Bowl: 19.4 A
Electrical: 208V / 60Hz / 3Ph

Bowl Dimensions (diaH): 27.6″ x 16.1” (701 x 361 mm)
Net Weight: 992.1 lb. (450 kg.)
Net Dimensions (DWH): 29.1” 48” x 49.2” (740 x 1220 x 1250mm)
Gross Weight: 992 lb. (450 kg.)
Gross Dimensions (DWH): 29” x 48” x 49” (740 x 1230 x 1250 mm)

SPEC SHEET
